Figure 18: Power - ST STM32L152-EVAL User Manual

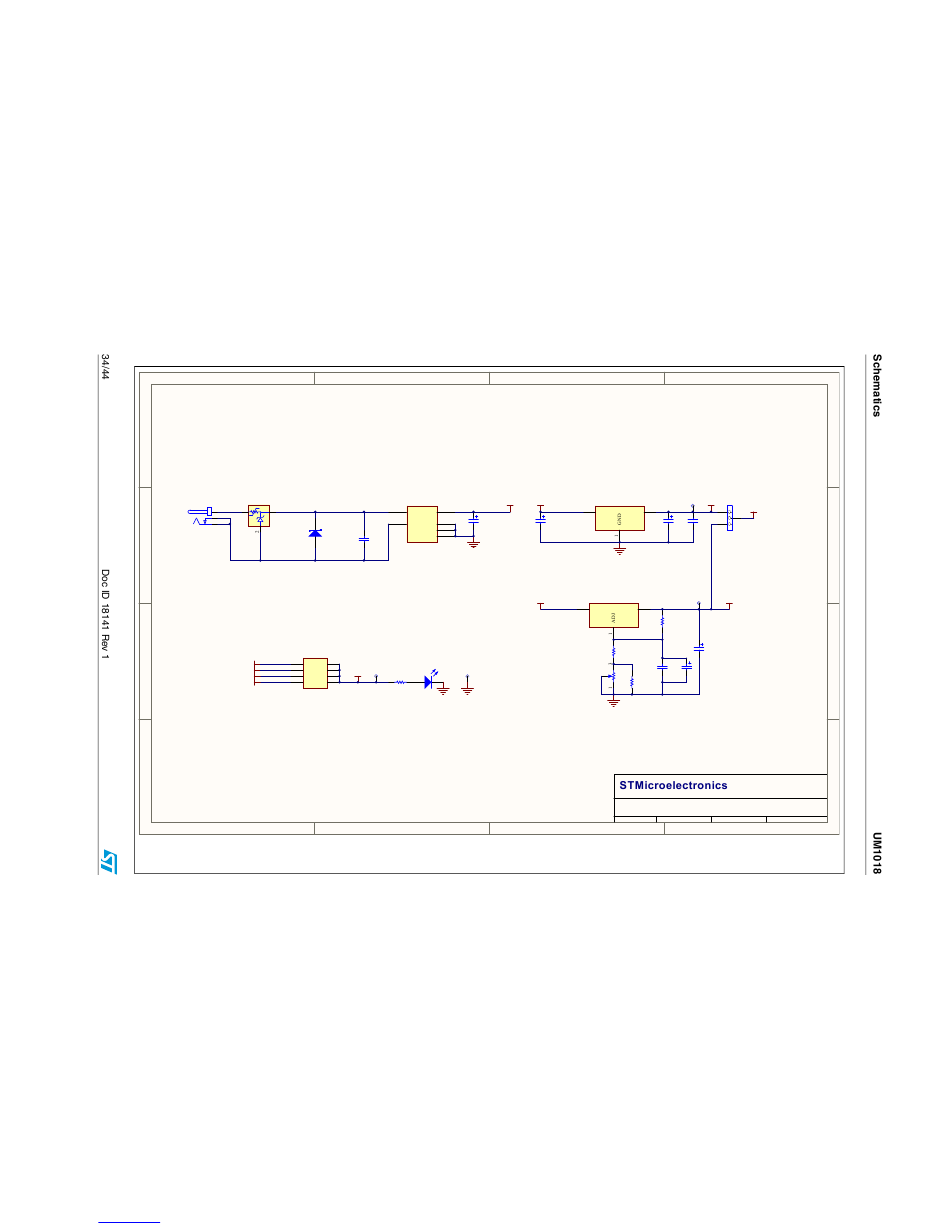

Figure 18. Power
A
B
C
D
Downloaded from Elcodis.com electronic components distributor
1
U26
ZEN056V130A24LS
CN12
1 1 3
2
3
DC-10B
Z1
SMAJ5.0A-TR
JP12
U5V_ST_LINK 7 8
U5V 5 6
+5V
D5V 3 4
E5V 1 2
Header 4X2
1
2
U21 E5V +5V
1 3
SV CV
C58 C65
2 4
SG CG1 220uF 47uF
5
CG2
6
CG3
C61
100nF BNX002-01
+5V
TP5 TP4
5V LD9 Ground
red
R72
1 2
1K
2
3
TP6
+3V3
U22
LD1086D2M33 +3V3
3 2 3
Vin Vout
2
C55
C51 1
10uF
100nF
JP13
TP7
U24 VDD_ADJ
LD1086D2M R94 VDD_ADJ
3 2 124[1%]
Vin Vout
Power Supply VDD_ADJ [1.65V to 3.6V]
C52
R95 C39
10uF
40.2[1%] 1uF
C63
2 100nF
RV2 R56
3386P-201H[5%] 2K2[1%]
Title:
STM32L152-EVAL Power
Number: MB819 Rev: B.3(PCB.SCH) Date: 10/13/2010
3
4
A
VDD
B
C
D
Sheet 6 of 14
4
