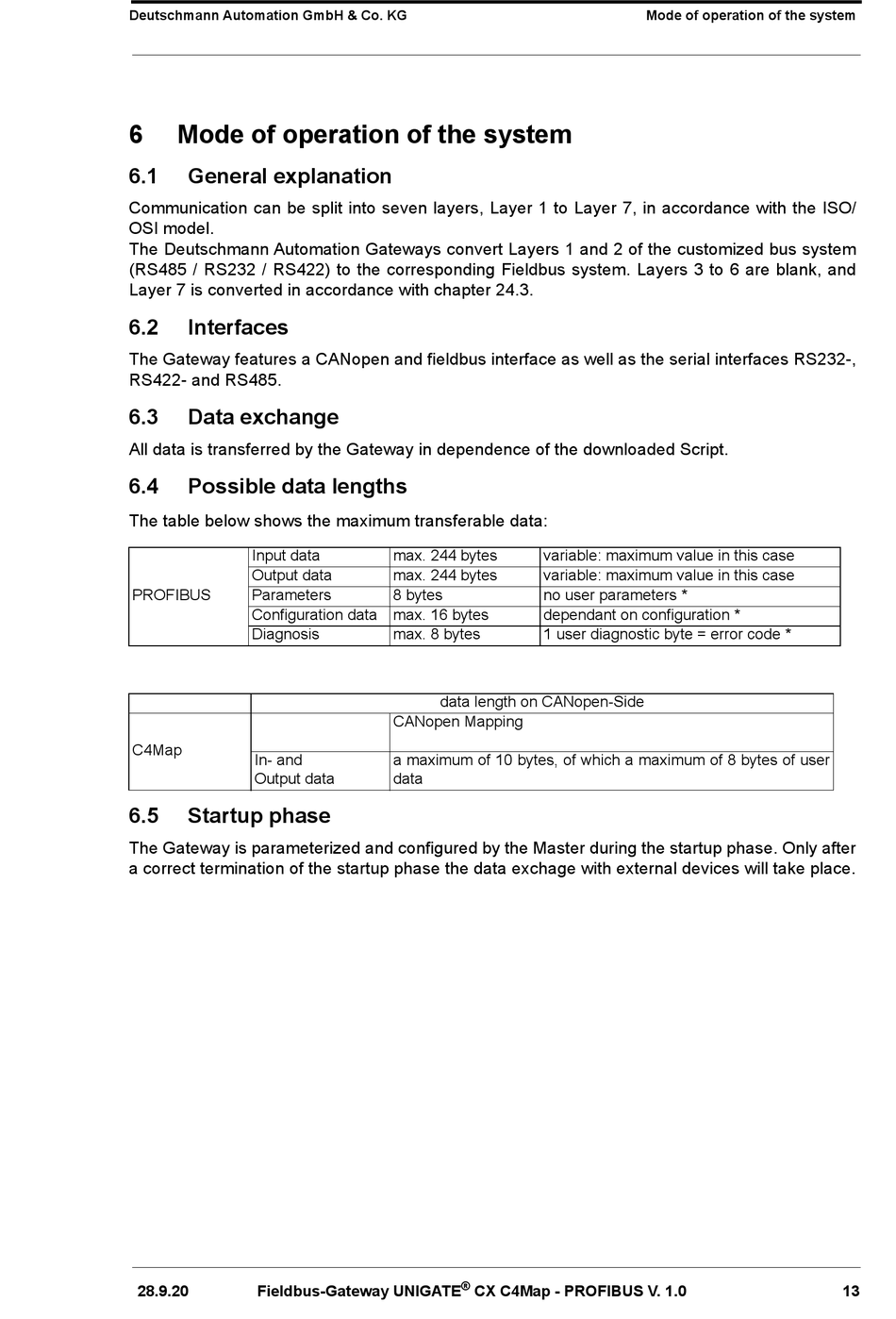

Mode of operation of the system

6.1

General explanation

Communication can be split into seven layers, Layer 1 to Layer 7, in accordance with the ISO/
OSI model.
The Deutschmann Automation Gateways convert Layers 1 and 2 of the customized bus system
(RS485 / RS232 / RS422) to the corresponding Fieldbus system. Layers 3 to 6 are blank, and
Layer 7 is converted in accordance with chapter 24.3.
6.2

Interfaces

The Gateway features a CANopen and fieldbus interface as well as the serial interfaces RS232-,
RS422- and RS485.
6.3

Data exchange

All data is transferred by the Gateway in dependence of the downloaded Script.
6.4

Possible data lengths

The table below shows the maximum transferable data
Input data
Output data
PROFIBUS Parameters
Configuration data max. 16 bytes
Diagnosis
C4Map
In- and 
Output data
6.5

Startup phase

The Gateway is parameterized and configured by the Master during the startup phase. Only after
a correct termination of the startup phase the data exchage with external devices will take place.
28.9.20 Fieldbus-Gateway UNIGATE
:
max. 244 bytes variable: maximum value in this case
max. 244 bytes variable: maximum value in this case
8 bytes no user parameters *
dependant on configuration *
max. 8 bytes 1 user diagnostic byte = error code *
data length on CANopen-Side
CANopen Mapping
a maximum of 10 bytes, of which a maximum of 8 bytes of user
data
®
