Hardware ports, switches and LEDs CANopen (Mapping)
If the Node-ID 0 (which is not allowed in CANopen
which is stored in the EEROM via the Script or WINGATE is used in this case. That way it is also
possible to set Node-IDs > 63 and there is no unclarity if the Node-ID of the DIP-Switch or the
Node-ID of the Script is valid.
In the initial state the Node-ID 1 is stored in the EEROM.

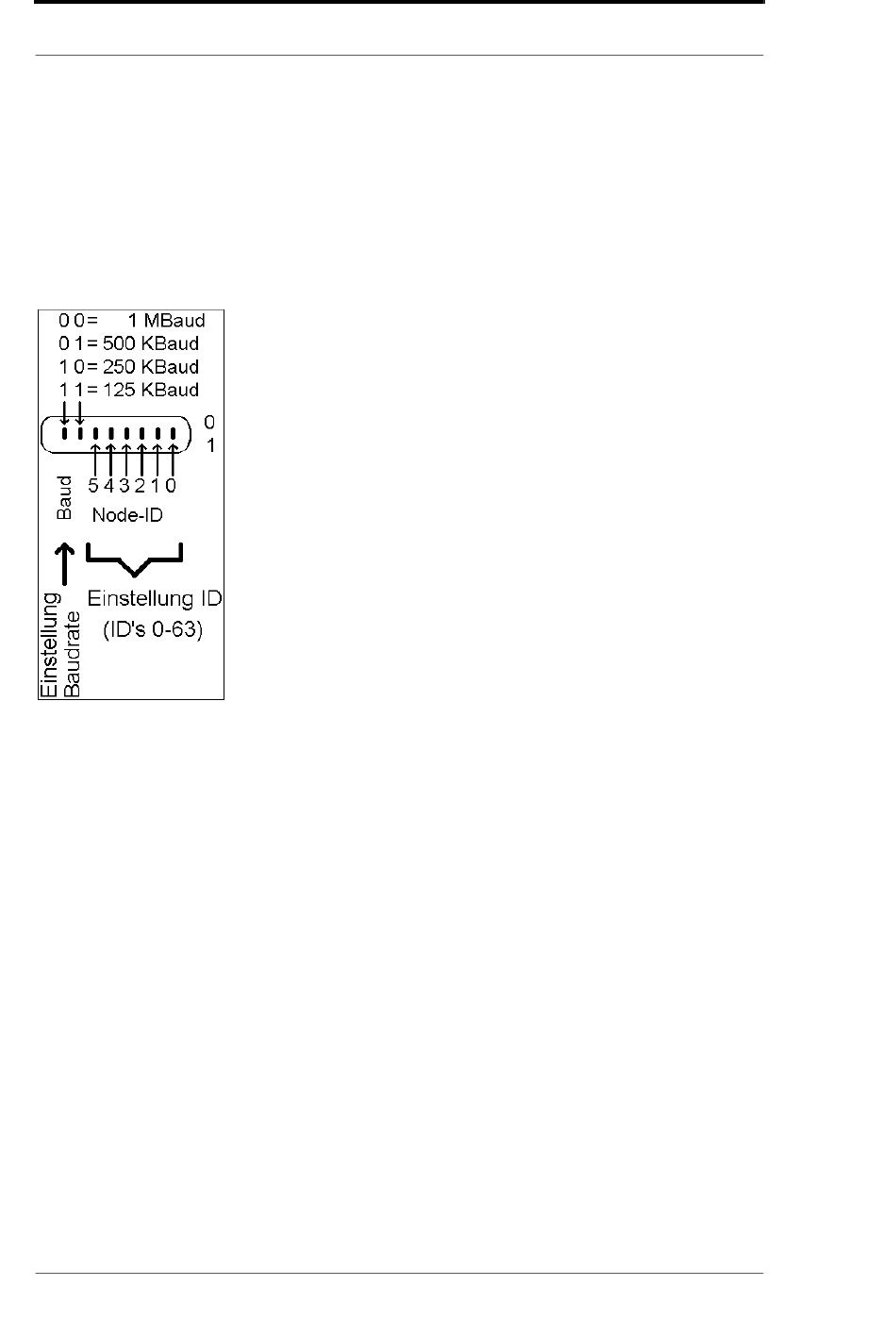

Picture 1: DIP-Switch
8.5 Debug cable for UNIGATE
As accessory a pre-configured Debug cable is available. The Debug cable connects the Gate-
way to Debug and RS.
28
®
CL
Fieldbus-Gateway UNIGATE
Deutschmann Automation GmbH & Co. KG
®
) is set on the DIP-Switch, then the Node-ID,
®
