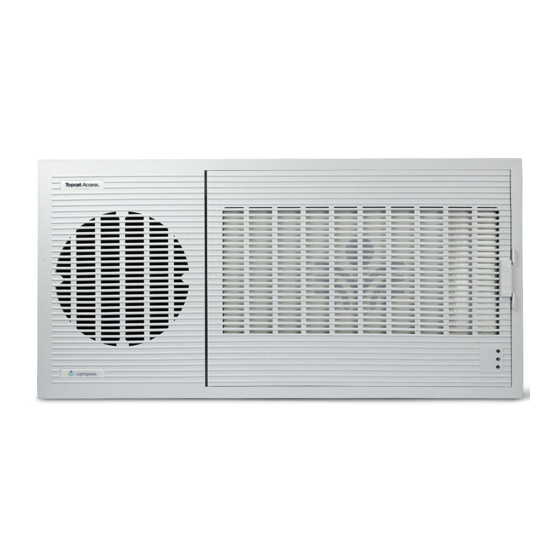

Lightspeed Topcat User Manual

Classroom audio system
Hide thumbs Also See for Topcat:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Classroom Audio System
MICROPHONE
AUDIO IN
AUDIO OUT
LINK
POWER
MIN
MAX
MIN
MAX
MIN
MAX
U s e r M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Topcat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lightspeed Topcat

Summary of Contents for Lightspeed Topcat

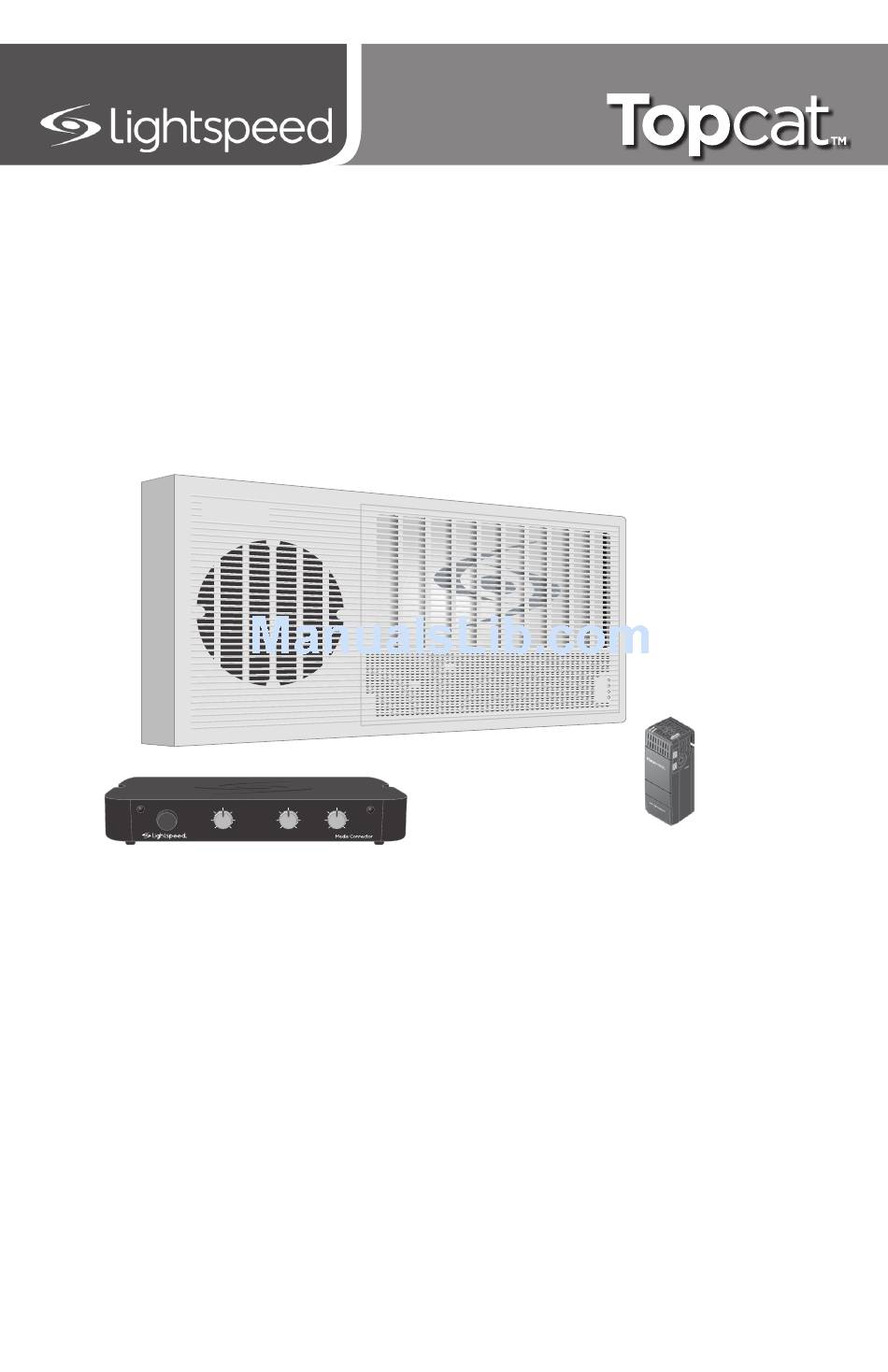

  • Page 1 Classroom Audio System MICROPHONE AUDIO IN AUDIO OUT LINK POWER U s e r M a n u a l...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 13. Unplug this apparatus during lightning storms or when Keep these instructions. unused for long periods of Heed all warnings. time. Follow all instructions. 14. Refer all servicing to qualified service personnel. Servicing is Do not use the apparatus near required when the apparatus water.
  • Page 3 • USE A LICENSED ELECTRICIAN FOR POWER CONNECTIONS. The TOPCAT system uses standard 100 – 240VAC power. Obtain the services of a licensed electrician when supplying and connecting power to the ceiling enclosure. BE SURE electrical installation complies with local building codes.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SECTION 1: Important Safety Instructions Overview System Components and Unpacking Optional Components Controls & Connections Topcat Side Panel Media Connector Flexmike Wall Charger SECTION 2: 1. Turn the System On Daily Operation 2. Remove Flexmike from charger 3.

  • Page 6: Section 1

    Troubleshooting section of the User Manual. Lightspeed recommends that the microphone(s), Media Connector and/or the accessory box be labeled with the room number of the Topcat that the components are registered with for proper dispersement. To assist in this process, Lightspeed has labeled each registered component with a system number.

  • Page 7: Optional Components

    SYSTEM COMPONENTS AND UNPACKING CONT’D Flexmike Volume Control Microphone Wall Charger for Flexmike Audio Cable Kit OPTIONAL COMPONENTS Optional equipment which may be part of your Topcat system: Sharemike Handheld Mic & Charger Cable DC Extension Cable...

  • Page 8: System Components

    SYSTEM COMPONENTS Equipment which may be part of your TOPCAT: Standard Components (U.S. and Canada) Topcat all-in-one ceiling mount system 24V-2.5-NA 24V/2.5A power supply for Topcat Flexmike microphone with battery pack NH2.4V AA NiMH rechargeable battery pack for Flexmike Flexmike lavaliere cord USB2-NA Wall charger/power supply, U.S.
  • Page 9 3. AUDIO INPUT: This connection accepts an audio signal from other technology so all multimedia can be distributed evenly thoughout the classroom 4. REGISTRATION BUTTON: This button is used to synchronize the Topcat with the Media Connector. 5. PROGRAMING CONNECTION: For factory use only...
  • Page 10 MEDIA CONNECTOR CONTROLS AND CONNECTIONS 1. POWER LIGHT: This light will turn blue when power is on. 2. POWER BUTTON: Press and hold this pushbutton to power on and power off the unit. 3. MICROPHONE VOLUME CONTROL: Controls the volume level of the microphones.
  • Page 11 Personal FM System. & LIGHT: Pushing the registration 5. FOUR AUDIO INPUTS: Connect button in conjunction with the registration button on the Topcat standard audio devices to any of the 3.5mm stereo inputs. A module will cause the two modules...

  • Page 12: Flexmike Controls And Connections

    FLEXMIKE CONTROLS AND CONNECTIONS POWER/MUTE SWITCH: press and hold to power on, press to mute, press and hold to power off. MIC 1 STATUS: lighted to indicate microphone is registered as MIC 1 • Blue: solid = normal operation; Blue: flashing = linking in process •...
  • Page 13 A green light indicates that charging is complete and a full charge has been reached. See Troubleshooting section for more information. Replacement NiMH battery packs may only be purchased through Lightspeed Technologies (part # NH2.4V). Do not attempt to charge with other battery packs.

  • Page 14: Section 2

    1. ENSURE THE SYSTEM IS POWERED ON When powered on, the blue LED on the Media Connector will glow. NOTE: since the Topcat is mounted in the ceiling, the Media Connector may be used to remotely power the system on and off.
  • Page 15 3. The Flexmike will stay powered on during charging, but will automatically be muted. 4. It is not necessary to turn off the Topcat. However, if you do want to power it down, press the power button on the Media Connector after plugging in the Flexmike to charge.

  • Page 16: Using The Media Connector

    Media Connector using the 3.5mm cables provided. 4. Set the audio source volume to provide sound through the Topcat. 5. Use the AUDIO IN volume control on the front of the Media Connector to increase or decrease the sound level.

  • Page 17: Audio Integration

    6. AUDIO INTEGRATION The Media Connector is designed to integrate multiple audio sources quickly and easily. Topcat Access Transmission Teacher’s Flexmike TONE AUDIO OUT AUDIO IN USB POWER TREBLE BASS REGISTER 5V/1.5A...

  • Page 18: Tips To Obtain Optimum Audio Performance

    7. TIPS TO OBTAIN OPTIMUM AUDIO PERFORMANCE • Speak in a natural voice. A normal conversational speech level will provide an adequate signal. It is not necessary to increase the intensity of your voice—the audio system provides adequate amplification (approximately 5 – 10 dB) above ambient room noises.

  • Page 19: Optional Accessories

    SECTION 3: OPTIONAL ACCESSORIES Sharemike: Controls and Connections 1. POWER BUTTON 2. MIC 2 LIGHT: This light indicates operation status when Sharemike is registed as MIC 2 (Standard) • Blue: solid = normal operation; blinking - link in process • Red: solid = muted 3.
  • Page 20 PLEASE NOTE: The Topcat and Microphone(s) are registered together at the factory. If you have purchased a Sharemike with your Topcat, keep all components together as a system. Moving them from one system, or room, to another will result in the need to re-register.
  • Page 21 3. As a page is broadcast, the sensor clip detects the audio signal through induction and immediately mutes the Topcat. 4. When the page is over, the audio from the Topcat returns to normal volume level. (For full installation details, refer to the Topcat Installation Guide.)
  • Page 22 USING THE FLEXMIKE TO AMPLIFY EXTERNAL AUDIO EQUIPMENT The Flexmike includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The Flexmike will transmit the audio signal to be played through the system. If your system includes two Flexmikes, you can use the second Flexmike to amplify external audio equipment.

  • Page 23: Output To Assistive Listening Device (Ald)

    OUTPUT TO ASSISTIVE LISTENING DEVICE (ALD) 1. Turn the AUDIO OUT volume 4. With the Topcat and ALD turned control on the Media Connector on, speak into the Flexmike and front panel all way the down. slowly adjust the AUDIO OUT volume control on the Media 2.

  • Page 24: Maintenance & Troubleshooting

    SECTION 4: MAINTENANCE & TROUBLESHOOTING BATTERY REPLACEMENT Replacement of battery pack in Flexmike. Slide the battery door open. Carefully pull the battery pack away from the Flexmike and disconnect the cable. Connect the cable of the new battery pack as shown and insert the battery pack into the Teacher compartment.
  • Page 25 BATTERY REPLACEMENT, CONT’D Replacement of battery pack in Sharemike. Slide the battery door open. Carefully remove the battery pack from the Sharemike. Insert the new battery pack into the compartment. Ensure proper polarity is observed. Slide the cover back on and snap into place.
  • Page 26 • Power the microphone off, then on If you review these instructions and still have questions, write down the serial number and model number of your system and call Lightspeed Technical Services at 800.732.8999, 5 a.m. – 5 p.m., PST. Customers outside...

  • Page 27: Section 5

    FIVE (5) YEARS, beginning at the date of the purchase invoice. If such malfunction occurs, the product will be repaired or replaced (at Lightspeed’s option) without charge during the warranty period.

  • Page 28: Safety Warnings And Certifications

    • Consult the dealer or an experienced radio/TV technician for help Caution: To maintain the compliance with the FCC’s RF exposure guideline, place Media Connector & Topcat at least 20 cm from nearby persons. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 29: Précautions De Sécurité Et Certifications

    Attention : afin d’assurer la conformité aux exigences de la FCC en matière d’exposition aux RF, placez le Media Connector et le Topcat à une distance de 20 cm minimum des personnes les plus proches. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

  • Page 30: System Specifications

    3.5mm stereo (x2) mixed w/ volume control Audio Link indicator 1 LED on front panel Registration indicator 1 LED on back panel Device Registration Push button for Topcat Mounting Wall or table-top Weight 9.6 oz. (272.16g) Dimensions (W x H x D) 7.6”...
  • Page 31 Battery life 8 hours (fully charged) Charging 5V charging jack Power on/off button Registration Push button for registration with Topcat Dimensions (L x W x H) 2.25” x 2.25” x 8.75” (57.2 x 57.2 x 222.3mm) Weight 7.36 oz (208.7 g)
  • Page 32 LIG HTSP EED TECH NOLO GIES 1 1509 SW HERMAN RO AD / TUAL ATIN, O R 97 062 TOL L F REE: 800.732 .89 99 / PHO NE: 503.68 4.5 538 / FAX: 503. 684.3197 LIG HTSPEE D-TEK. COM MN0488US01-1...
