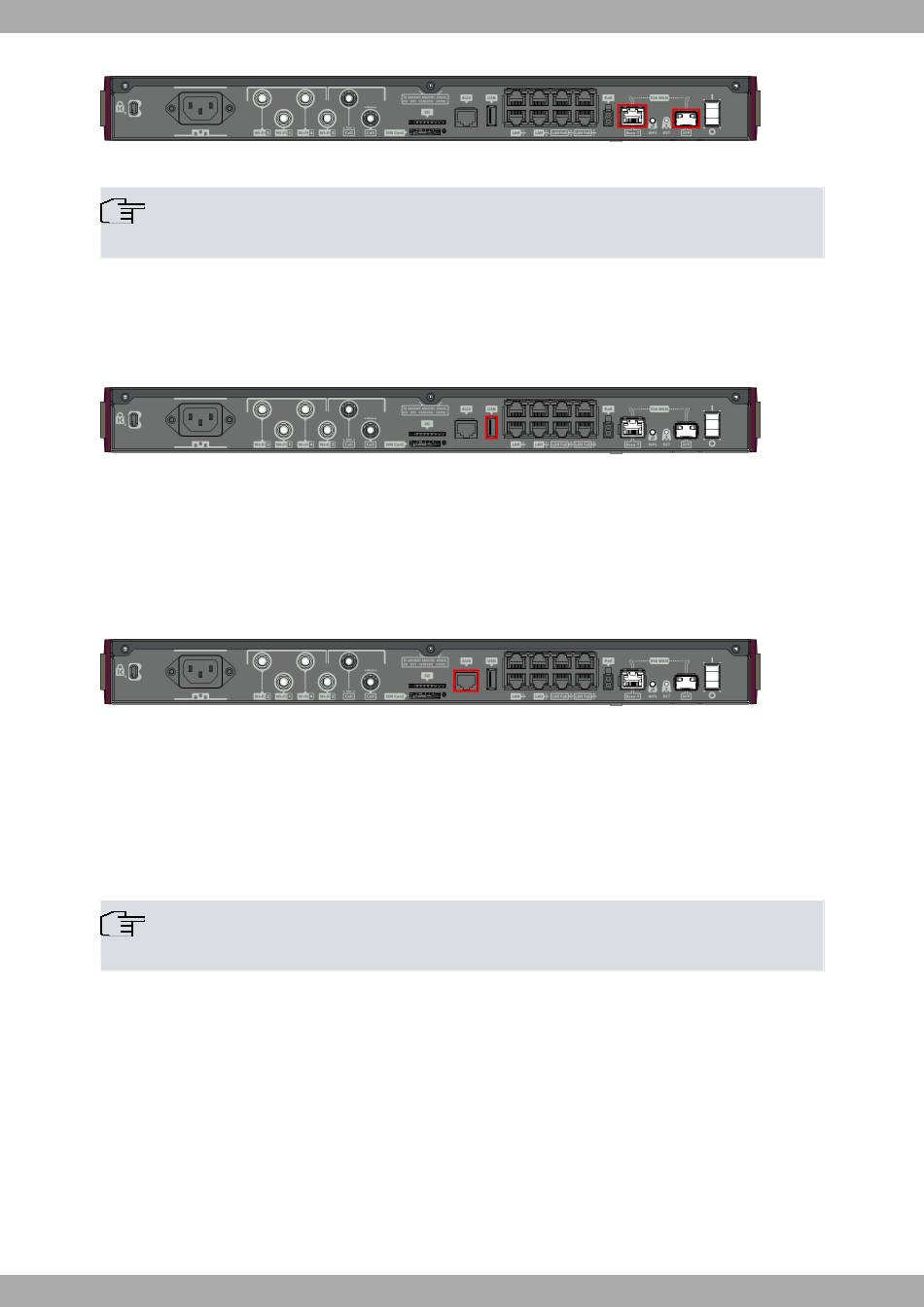

WAN connectors
Fig. 19:
Note
During booting and in BIOS mode, the WAN connectors do not work.

3.7.3 Connecting a 3G USB device (USB connector)

The Teldat Atlas-i70 router has a USB HOST 2.0 Type A connector interface. It allows 3G USB modems to be con-
nected. The interface can be activated by purchasing the corresponding software license.
3G USB Connector
Fig. 20:

3.7.4 Connecting for Configuration

The Teldat Atlas-i70 has a RJ45 female connector on the front panel (labeled Aux) that provides access to the
device's local console.
For further information, please see
Aux. Connector
Fig. 21:

3.8 Optional Storage

The applications running in the second core of the device processor can increase the features of the Teldat Atlas-
i70 router.
To access said features, the device must have an internally-installed hard disk or an SD flash memory expansion.
Note
Please see the Teldat website http://www.teldat.com for a list of supported hard disks.

3.8.1 Procedure to install a hard disk

To correctly insert a hard disk, please carry out the following steps:
(1) Switch off the device and remove the data cables as described under section
(2) Remove the device from the workplace and place it in a stable and safe location, where it can be easily ac-
cessed and handled.
(3) Unscrew the screws on the front panel to extract the tray for hard disk access.
Teldat Router Atlas-i70
Connecting to the device on page 23.
3 Components and Power Supply
Disconnecting on page 11.
