Please pay careful attention to the labeling to avoid mixing up this switch with other port types:

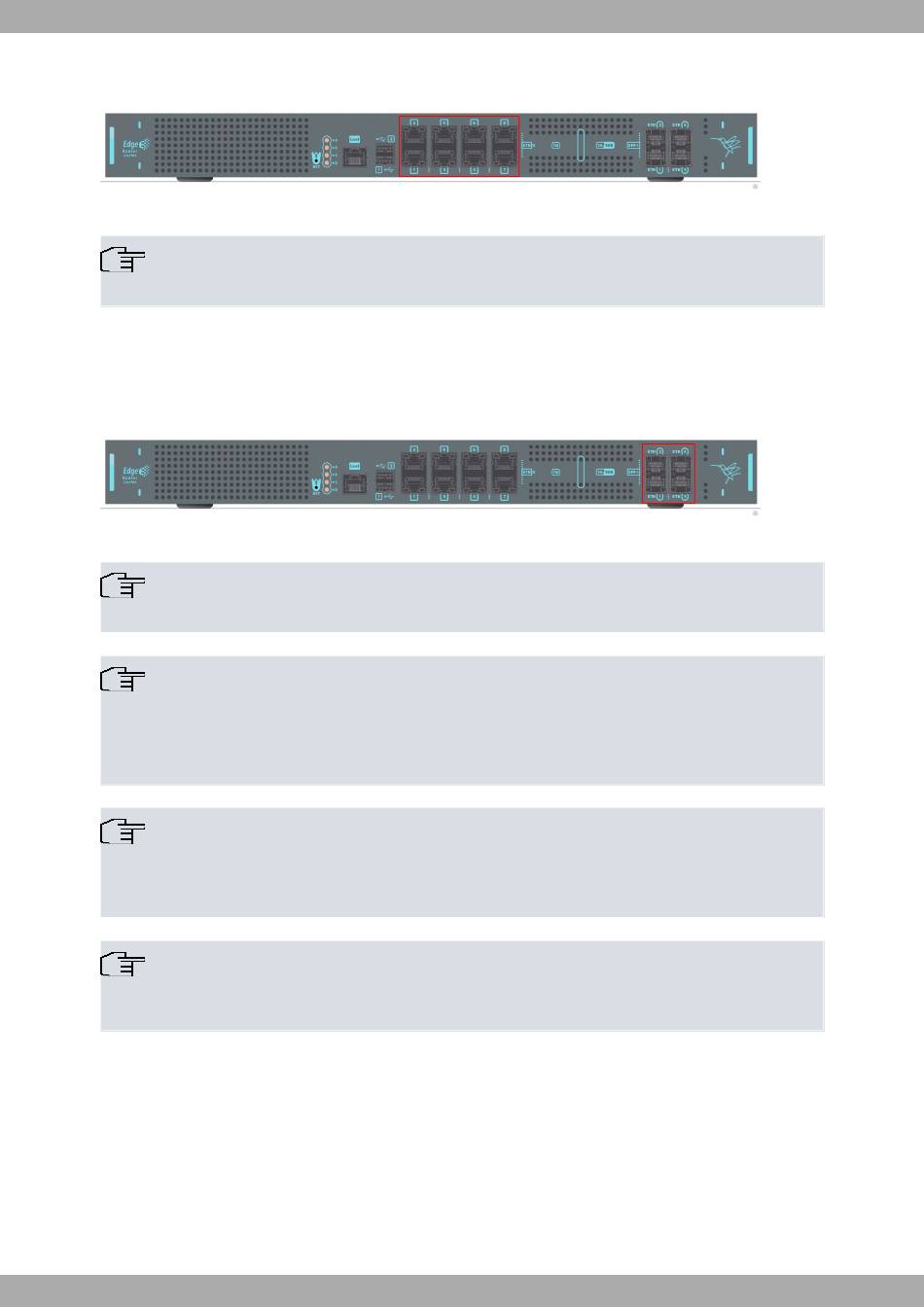

LAN switch PORTS
Fig. 8:
Note
During booting and in BIOS mode, only the LAN 1 connector is available.

3.5.2 SFP/SFP+ connections

The RXL15000 has 4 Gigabit Ethernet interfaces for WAN connection. These interfaces are totally independent from
the Switch and are handled as just one more interface.
WAN connectors
Fig. 9:
Note
During booting and in BIOS mode, the SFP/SFP+ connectors do not work.
Note
Do not install or remove the SFP/SFP+ transceiver module with fiber-optic cables still attached to it. Do-
ing so may damage cables, cable connectors, or the optical interfaces and may interfere with the trans-
ceiver module latching properly into its socket connector. Disconnect all cables before removing or in-
stalling an SFP/SFP+ transceiver module.
Note
The SFP/SFP+ transceiver modules are static sensitive devices. Always use an ESD wrist strap or sim-
ilar individual grounding device when handling SFP/SFP+ transceiver modules or coming in contact
with modules.
Note
Be careful when removing the SFP/SFP+ transceiver module from the router. The transceiver module
temperature might go over 70ºC (160°F) and be too hot to touch with bare hands.

3.5.3 Connecting for configuration

The RXL15000 has a RJ45 female connector on the front panel (labeled "Conf") that provides access to the device's
local console.
