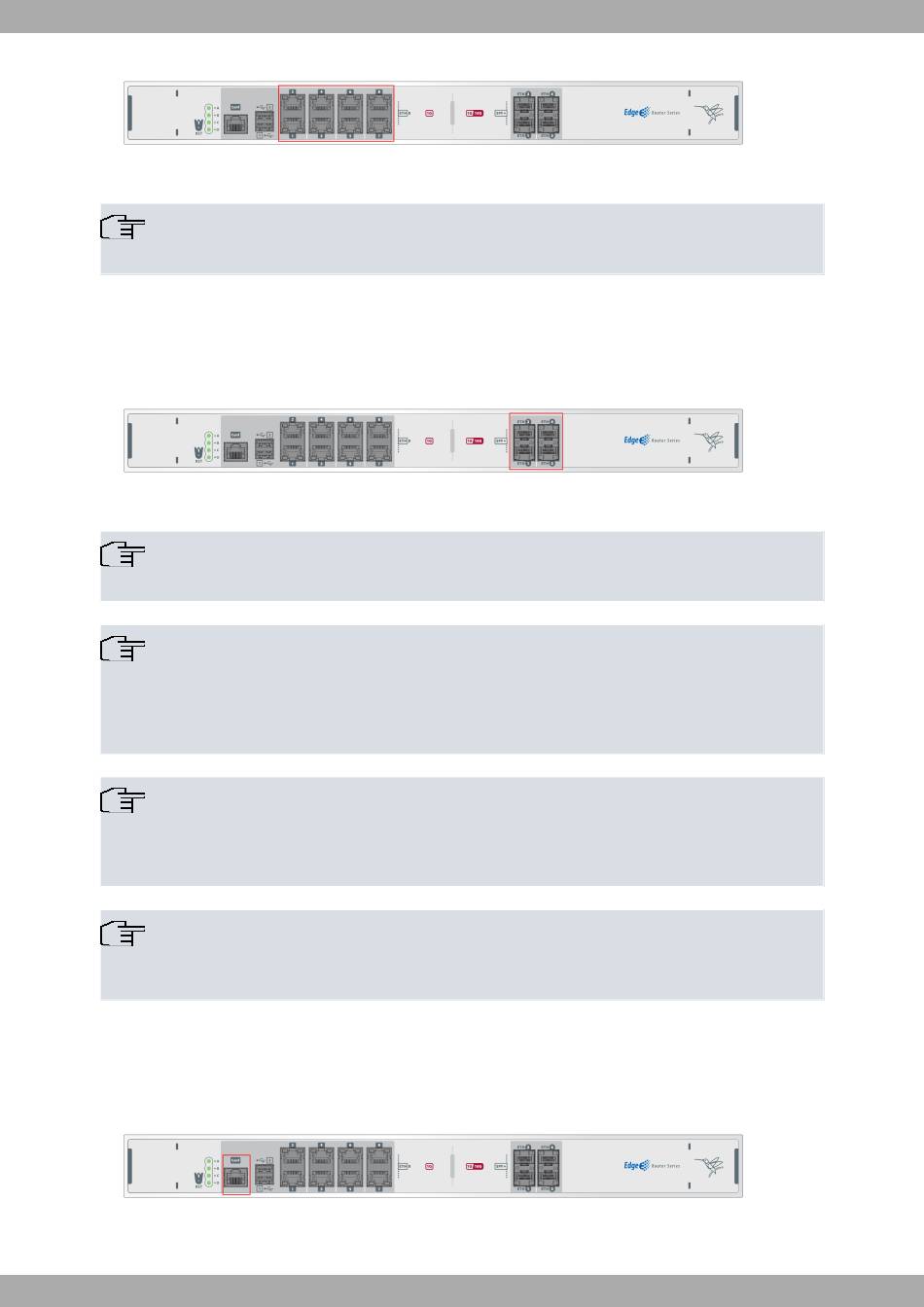

LAN switch PORTS
Fig. 12:
Note
During booting and in BIOS mode, only the LAN 1 connector is available.
3.5.2 SFP/SFP+ connections
The Atlas-840 has 4 Gigabit Ethernet interfaces for WAN connection. These interfaces are totally independent of the
Switch and are handled as just one more interface.
WAN connectors
Fig. 13:
Note
During booting and in BIOS mode, the SFP/SFP+ connectors do not work.
Note
Do not install or remove the SFP/SFP+ transceiver module with fiber-optic cables still attached to it. Do-
ing so may damage cables, cable connectors, or the optical interfaces and may prevent the transceiver
module from inserting properly into its socket connector. Disconnect all cables before removing or in-
stalling an SFP/SFP+ transceiver module.
Note
The SFP/SFP+ transceiver modules are static sensitive devices. Always use an ESD wrist strap or sim-
ilar individual grounding device when handling SFP/SFP+ transceiver modules or coming in contact
with modules.
Note
Be careful when removing the SFP/SFP+ transceiver module from the router. The transceiver module
temperature might go over 70ºC (160°F) and be too hot to touch with bare hands.
3.5.3 Connecting for configuration
The Atlas-840 has a RJ45 female connector on the front panel (labeled "Aux") that provides access to the device's
local console.
Conf Connector
Fig. 14:
Teldat Edge Router Atlas-840
3 Components and Power Supply
11
