10
6.4
LAN Connection

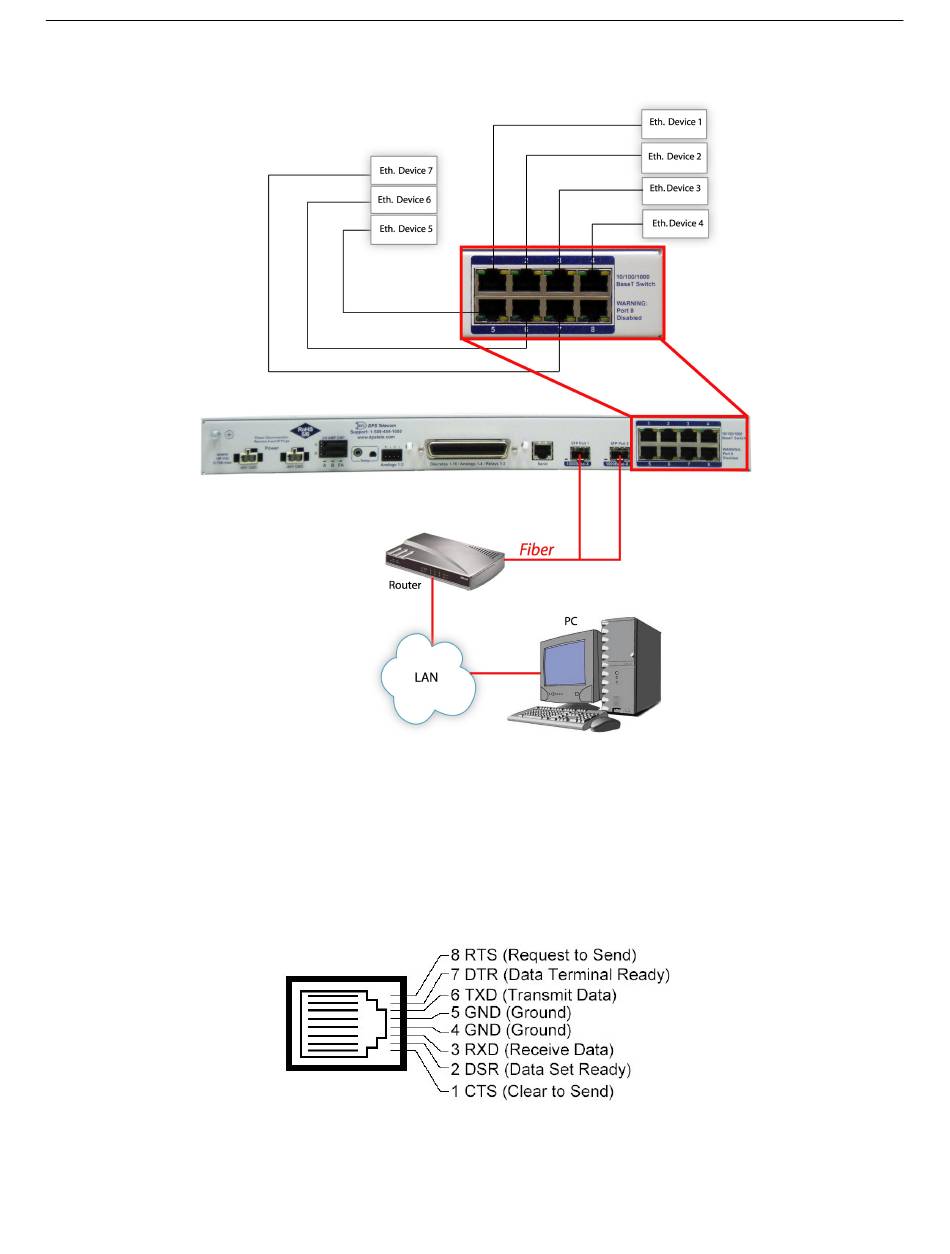

Chart of Ethernet and SFP Fiber Interface Connections
The NetGuardian 216F has a 10-BaseT Ethernet switch for connecting through LAN. To connect the NetGuardian
216F to the LAN, insert a standard RJ45 Ethernet cable into one of the Ethernet ports.
From the NetGuardian 216F, the connection can be routed via Ethernet to a local subnet of up to 7 devices.
Yost RS-232 RJ45 Connector
Ethernet port pinout
The pinout diagram for the Ethernet switch port is shown above.
