29

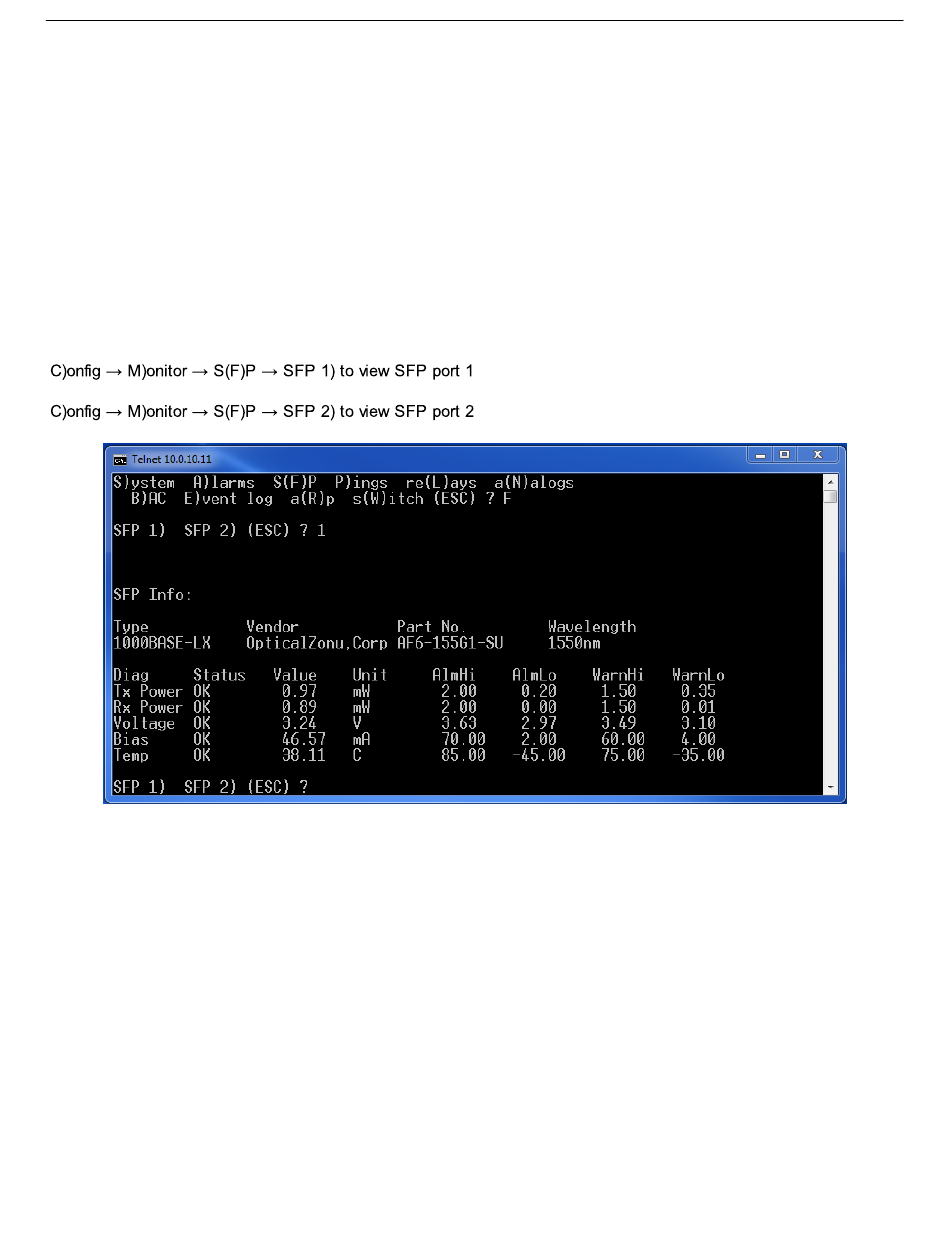

11.3.1.7 Monitoring SFP Ports and Fiber Fault Detection
The NG216F can support 2 SPF connections.
When using a compatible OpticalZonu SFP transceiver, the contents of their registers can be read and the fiber
connection status and parameters are displayed in the TTY interface.
The TTY interface displays information about the transceiver such as its Type, Vendor, Part No., and Wavelength, as
well as diagnostic information on the connection status such as TX Power, RX Power, Voltage, Bias, and
Temperature.
You can monitor SFP port 1 and port 2 individually by entering in the following commands, depending on which port
you wish to monitor:
Port 1:
Port 2:
