11.3.1.4 Monitoring Analogs

View the current reading and the alarm status of your analog devices from the M)onitor menu > a(N)logs option. The

value shown is a snapshot of the channels measurement, not a real-time reading. Refresh the readings by re-

selecting the analogs option. Alarm status indicates that a preset threshold has been crossed and is designated by

an x.

The four analog measuring inputs are set to measure voltage as the factory default. If your sensors output is current,

change the appropriate analog dipswitch, to the current measuring position. The scaling worksheet in the

provisioning section converts all readings shown here into native units, such as degrees Celsius.

Note that channels 5 and 6 are reserved for Power Feed A and Power Feed B, respectively; and that channel 7 is

reserved for internal temperature monitoring ("iF"=internal Fahrenheit) while channel 8 is for external temperature

monitoring ("eF"=external Fahrenheit).

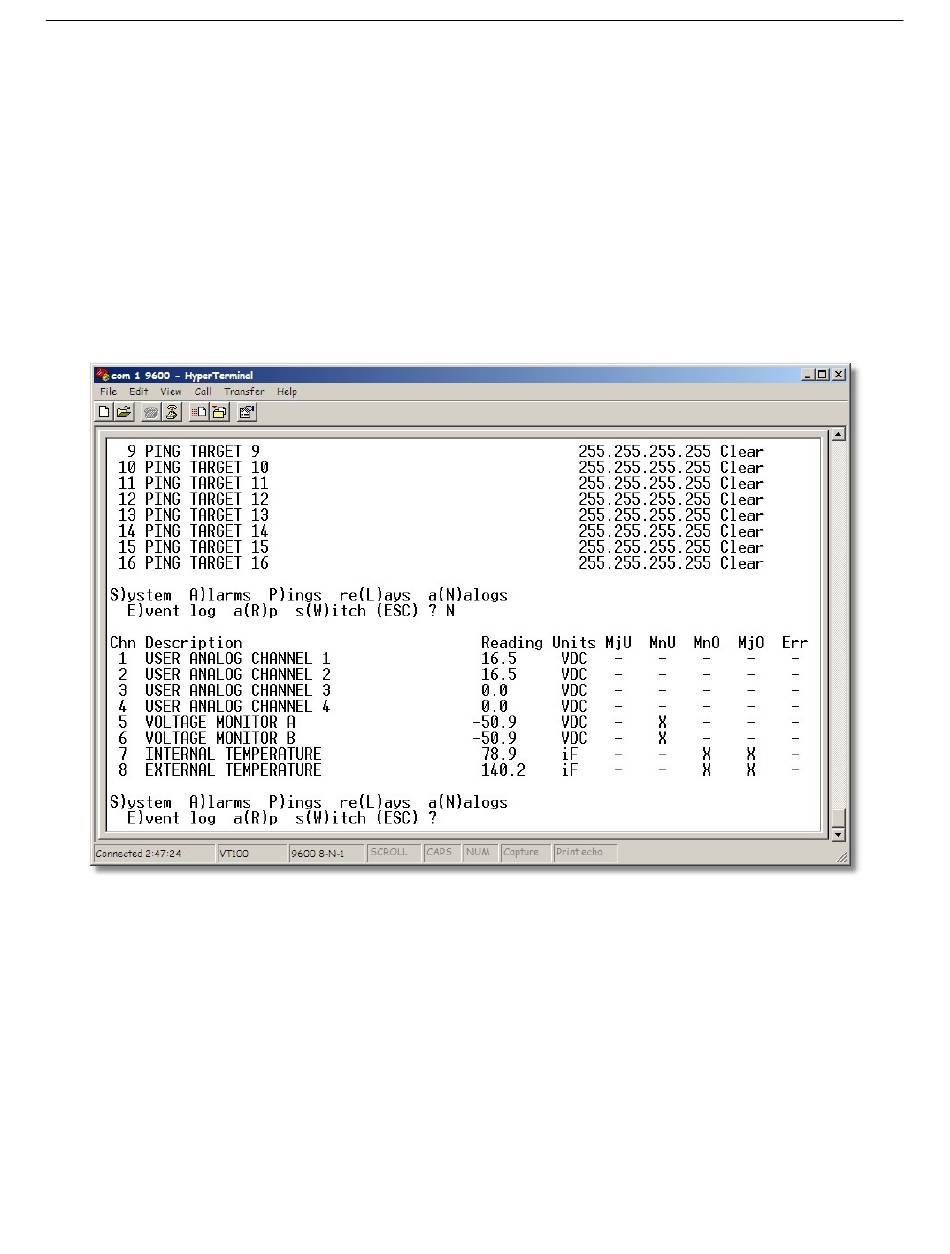

This display allows you to monitor your eight analog inputs
