11.3.1.2 Monitoring Ping Targets

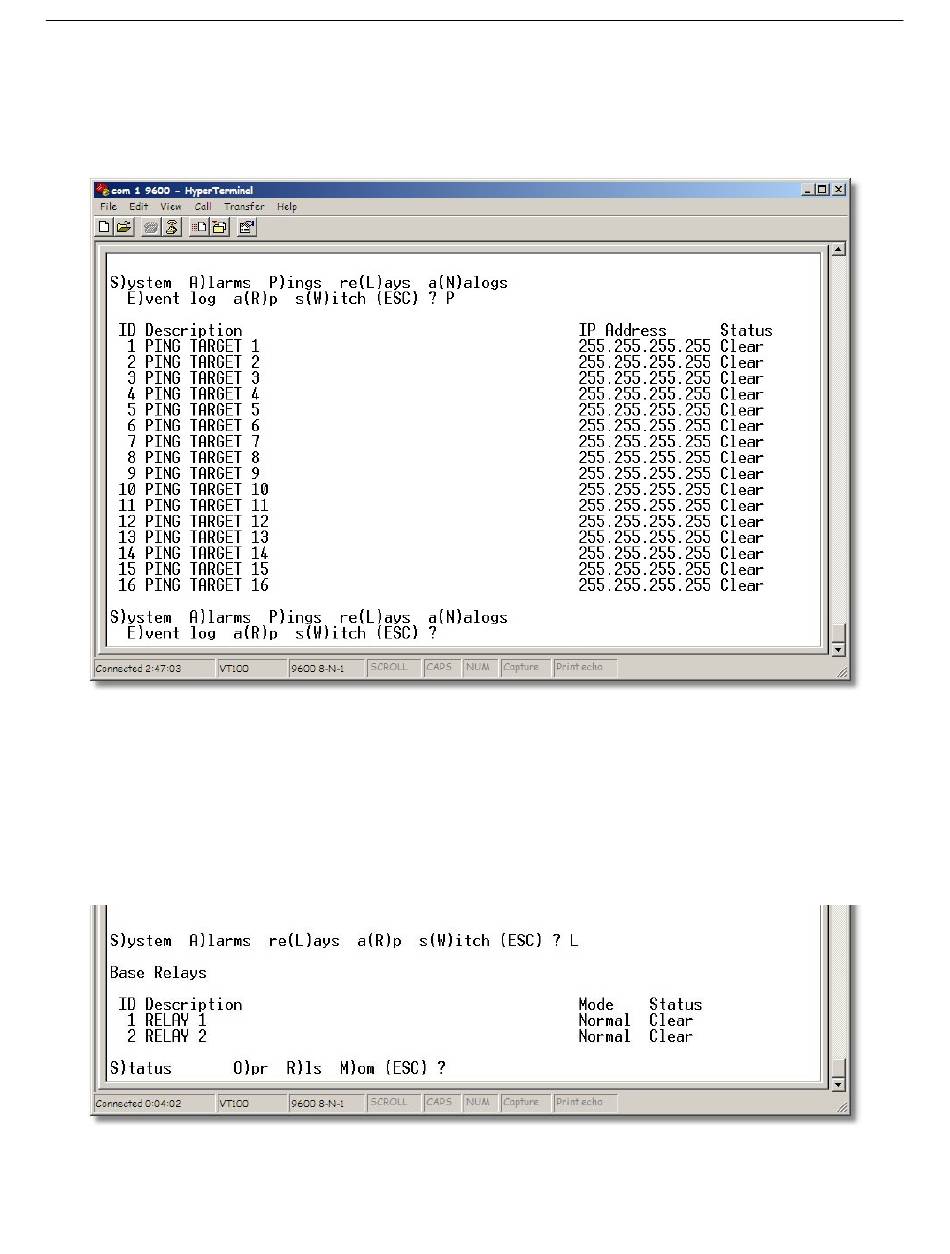

View the status of all your ping targets from the M)onitor menu > P)ing targets option. This screen displays the ping
target ID, description, and IP address. Under Status the word Alarm will appear if an alarm has been activated and
Clear will appear if an alarm condition is not present.
The Ping info submenu allows you to change ping targets

11.3.1.3 Monitoring and Operating Relays (Controls)

The NetGuardian comes equipped with 2 relays that can be used to control external devices. Monitor the status of
your relays from the M)onitor menu > R)elays option.
Relays are set to normally open (N/O) as the factory default, but each or all of them can be changed to normally
closed (N/C) by changing their respective jumper.
The relays can be operated from this screen
