Back Panel LEDs

The back panel LEDs indicate the status of power and Ethernet connections. LED status messages are described
below.
Power
Fuse
Alarm
10/100/1000
BaseT Switch
SFP Fiber
Interface
9

Configuring the NetGuardian

The NetGuardian must be provisioned with log-on passwords, alarm descriptions, port parameters, ping targets,
control descriptions, and other system information. You can provision the NetGuardian using either the Edit216F
software or the Web interface. The NetGuardian also supports a limited TTY interface for configuring some basic
options. (For full instructions on configuring the NetGuardian, see the software configuration guides on the
NetGuardian Resource CD.)
You can provision the NetGuardian either locally through the craft port or remotely through a LAN connection.
However, to access the NetGuardian via LAN you must first make a temporary connection to the NetGuardian and
assign it an IP address on your network. For more information, see Section 10, "Connecting to the NetGuardian."

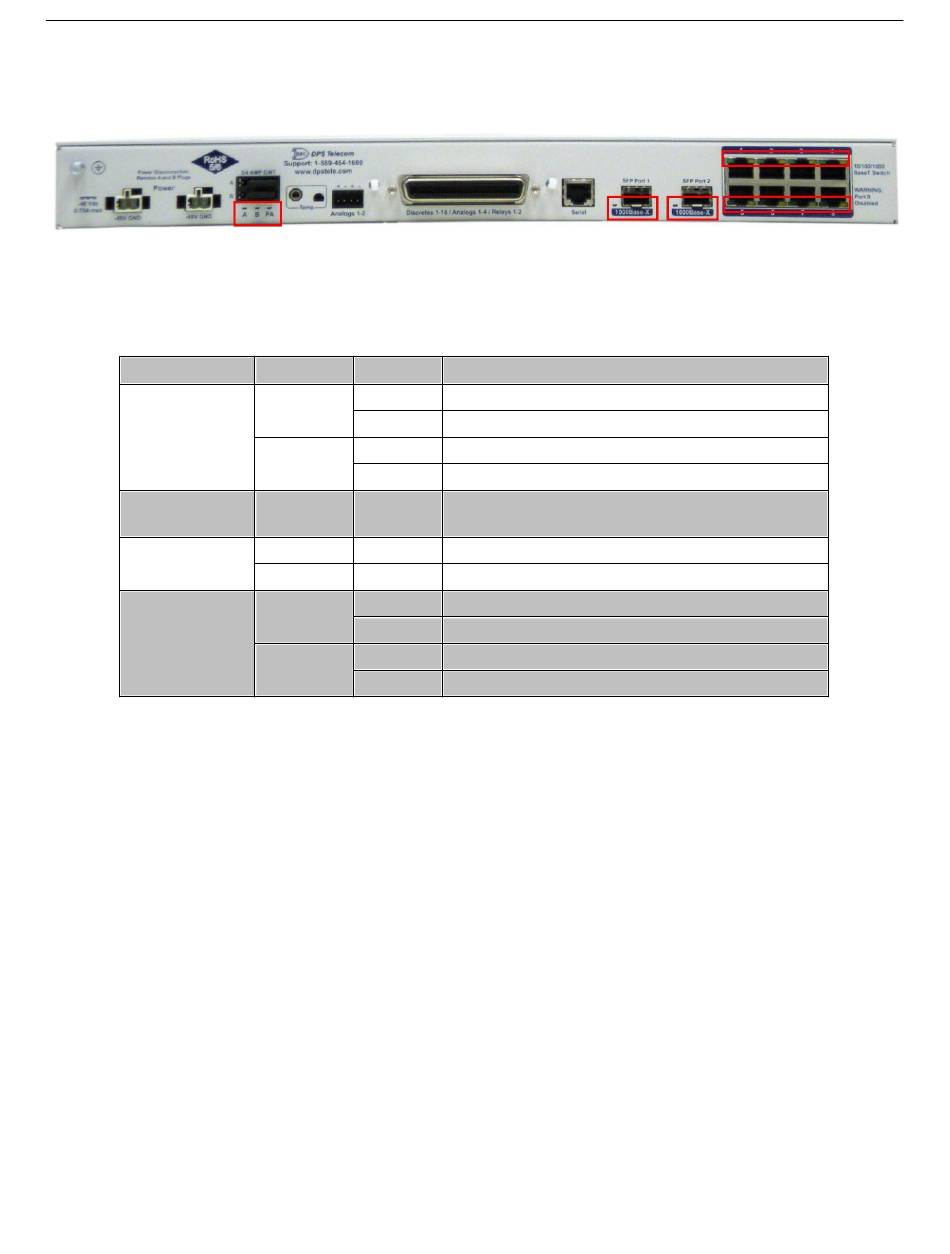

Back panel LEDs for Power and Ethernet connections
LED Status
Off
Pwr A
Green
Off
Pwr B
Green
Red
---
Green Flashing
Orange Solid
Red
Port 1
Green
Red
Port 2
Green
Back panel LED Status message descriptions
Description
Power not applied or polarity incorrect
Power applied
Power not applied or polarity incorrent
Power applied
Fuse A or B is blown
Activity on port detected
Link detected
SFP detected, no link
SFP detected, link is up
SFP detected, no link
SFP detected, link is up
