6.5.4 Integrated Temperature and Battery Sensor

The integrated temperature and battery sensor monitors the ambient temperature and the NetGuardian's power
feeds. This option is available only if it was ordered with your NetGuardian. The integrated temperature sensor
measures a range of -22° F to 158° F (-30° C to 70° C) within an accuracy of ± 1°.
Analog Function
User Channel 1
User Channel 2
User Channel 3
User Channel 4
Monitor Power Feed A
Monitor Power Feed B
Monitor Internal
Monitor External

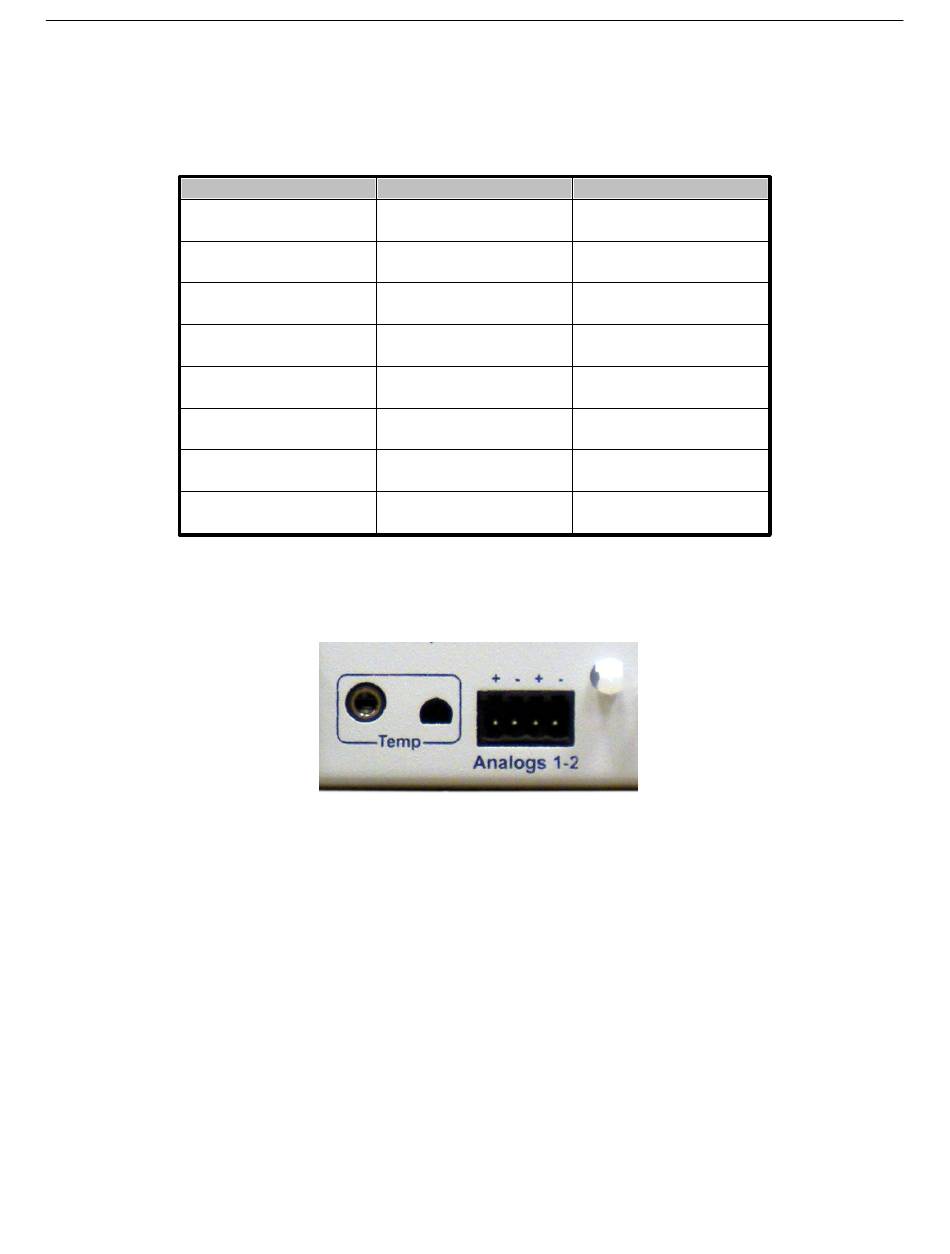

Between the Amphenol connector and Fuse B resides the 1/4 inch stereo jack for the external temperature sensor,
as well as the 4-pin connection for Analogs 1-2, as shown below.
Amphenol or 4-pin
Amphenol or 4-pin
Temperature
1/4 inch stereo jack
Temperature
Integrated sensor connection options
Temperature Sensor and Analog Connectors
Location
Reported as analog
connector channel 1
Reported as analog
connector channel 2
Amphenol only Reported as analog
channel 3
Amphenol only Reported as analog
channel 4
Internal Reported as analog
channel 5
Internal Reported as analog
channel 6
Internal Reported as analog
channel 7
Reported as analog
channel 8
Channel Mapping
