8
5.2
LAN Connection
To connect the unit to LAN, insert a standard RJ45 Ethernet cable into the 10/100BaseT Ethernet port on the back
of the unit. If the LAN connection is OK, the LNK LED will light SOLID GREEN.
5.3
50-Pin Alarm and Control Relay Connector
The primary connectors for discrete alarms, analog alarms and control relays are the 50-pin apmhenol connectors on
the Cell16 's back panel.
5.4
Optional 66 Block Connector
The unit is also available with an optional 66 Block Connector for connecting discrete alarms, analog alarms and
control relays. Pinout and wire color coding are shown.

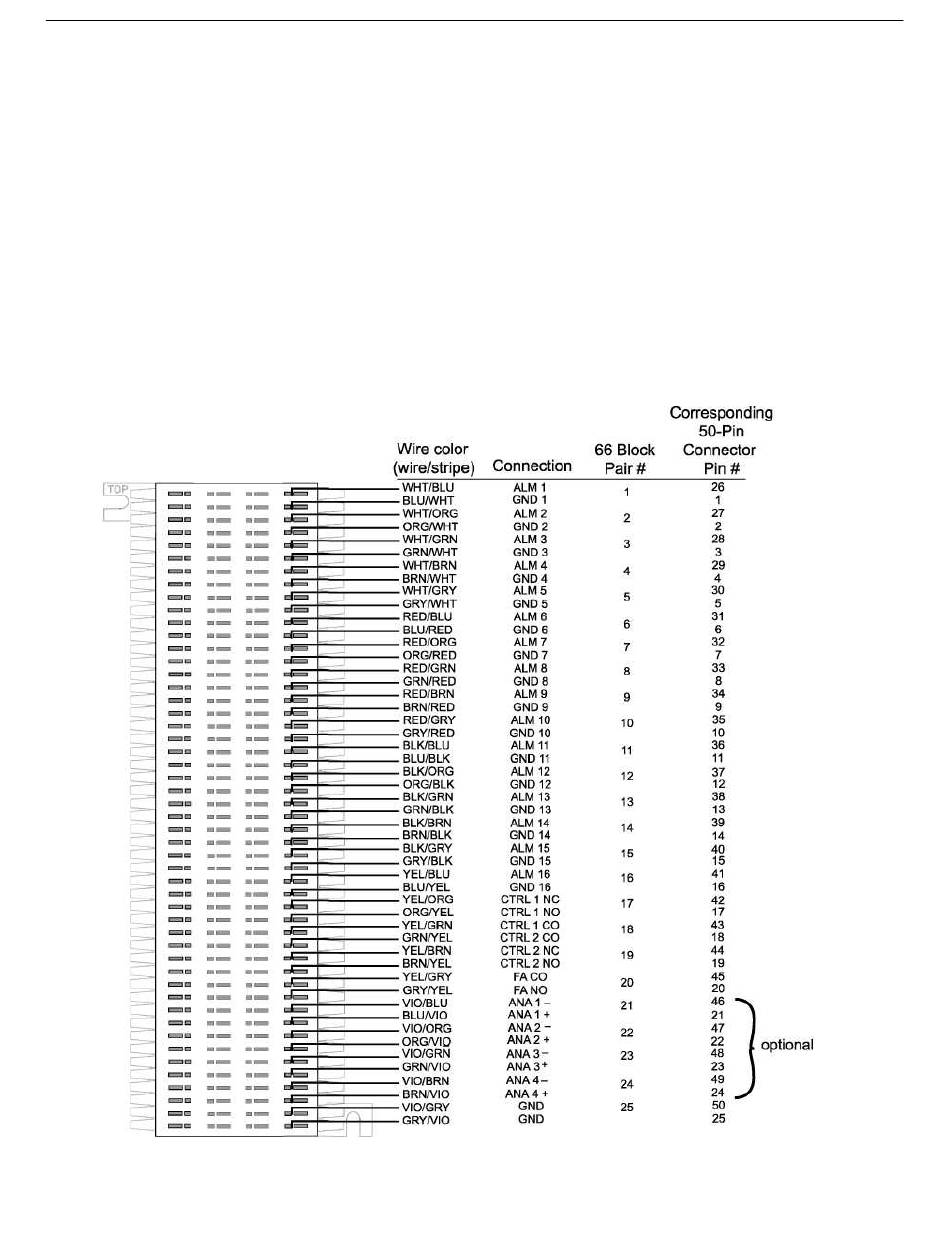

Optional 66 block connector pinout
