6.5

Alarm and Control Relay Connections

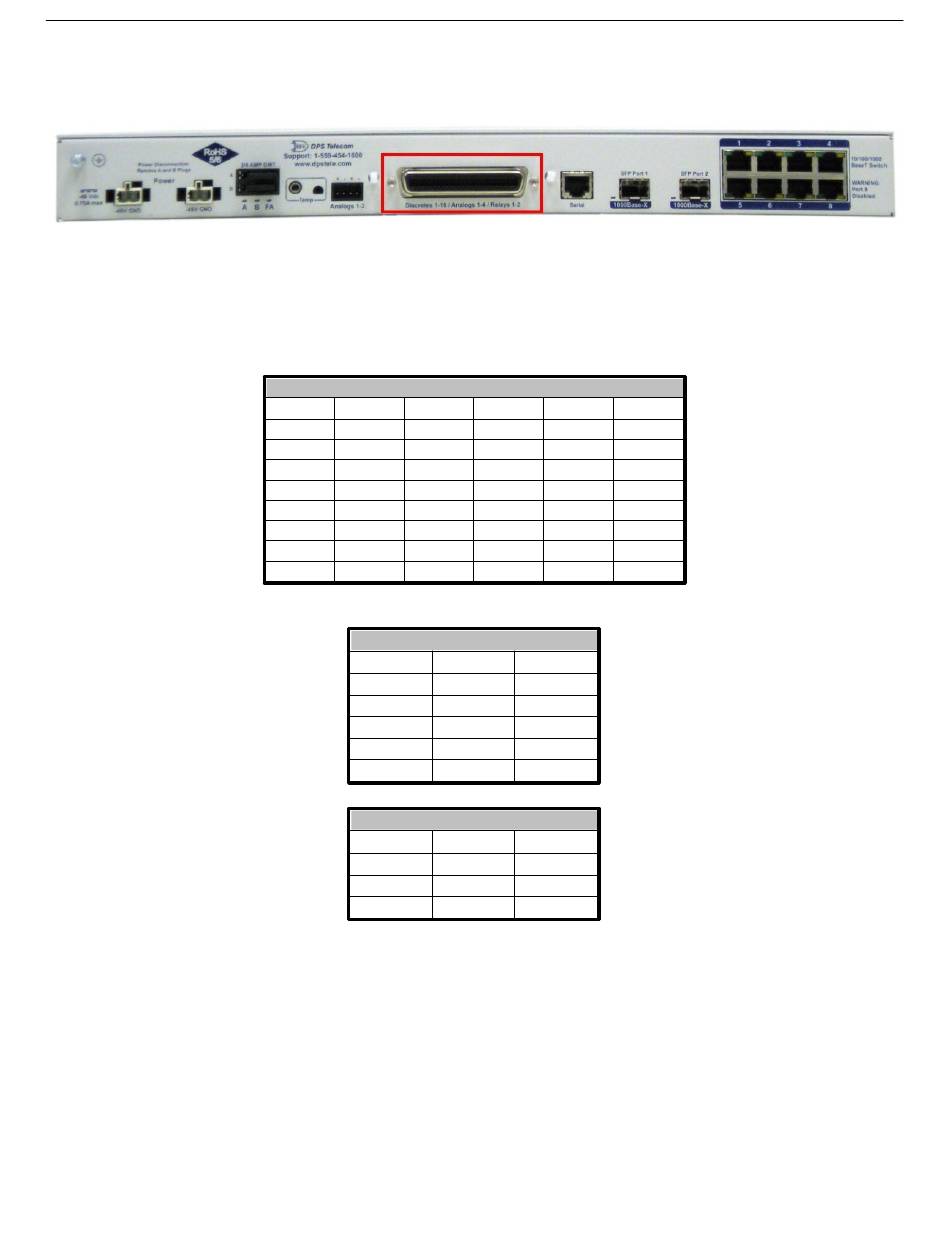

The NetGuardian's discrete alarm inputs, control relay outputs, and analog alarm inputs are connected through the
50-pin connectors labeled "Discretes 1–16, Analogs 1-4, and Relays 1-2" on the back panel.

6.5.1 Alarm and Control Relay Connector Pinout Table

Alarm, amphenol connector, and control relay pinout (continued on next page)
The table shows the pinouts for the 50-pin connectors "Discretes 1-16," and "Analogs 1-4" and "Control Relays 1-2."
Alarm and control relay connectors
Discretes 1–16
RTN ALM
ALM 1 1 26
ALM 2 2 27
ALM 3 3 28
ALM 4 4 29
ALM 5 5 30
ALM 6 6 31
ALM 7 7 32
ALM 8 8 33
Analogs 1–4
ANA 1
ANA 2
ANA 3
ANA 4
GND
Control Relatys 1–2
NO/NC
CTRL 1 17/42
CTRL 2 19/44
FUSE 20/NA
Alarm, amphenol connector, and control relay pinout
RTN ALM
ALM 9 9 34
ALM 10 10 35
ALM 11 11 36
ALM 12 12 37
ALM 13 13 38
ALM 14 14 39
ALM 15 15 40
ALM 16 16 41
+ –
21 46
22 47
23 48
24 49
25 50
CO
43
18
45
11
