6. Install the male end of the pressure transducer hose assembly on the machine's load sense hose.
NOTE:
Install the pressure transducer hose assembly so that the transducer points outward, toward the left
side of the machine.
7. Install the female end of the pressure transducer hose assembly on the steering orbital.
INSTALL THE LEFT AND RIGHT STEERING HOSES
1. Locate the left and right steering hoses connected to the steering orbital.

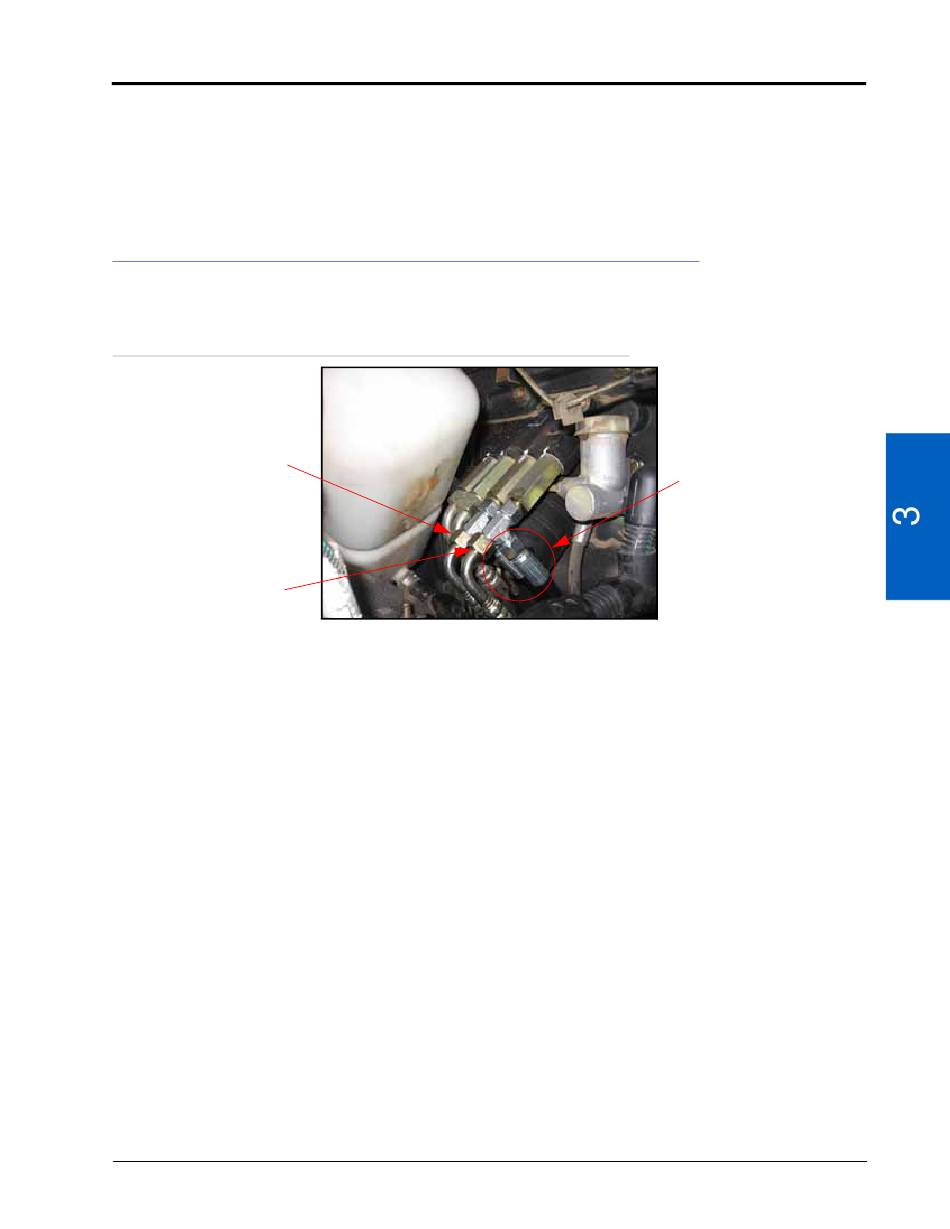

FIGURE 9. Steering Hoses Installed
Machine's
Right Steering
Hose
Machine's Left
Steering Hose
2. Disconnect the machine's right steering hose from the steering orbital.
3. Install a 12L, M18 x 1.5 M/M/F swivel run tee adapter fitting (P/N 333-0012-356) in the open port of the steering
orbital.
4. Connect the machine's right steering hose to the opposite end of the installed tee fitting.
5. Install the 12L end of the supplied hydraulic hose (P/N 214-1000-861) on the 90° end of the installed tee fitting.
6. Route and connect the other end of the installed hydraulic hose to the fittings installed in Port B of the
SmarTrax valve (P/N 334-0003-088).
NOTE:
Route the hose under the left side of the cab. Ensure the hose does not come into contact with the
cab.
7. Disconnect the machine's left steering hose from the steering orbital.
8. Install a 12L, M18 x 1.5 M/M/F swivel run tee adapter fitting (P/N 333-0012-356) in the open port of the steering
orbital.
9. Connect the machine's left steering hose to the opposite end of the installed tee fitting.
10. Install the 12L end of the supplied hydraulic hose (P/N 214-1000-861) on the 90° end of the installed tee fitting.
11. Route and connect the other end of the installed hydraulic hose to the fittings installed in Port A of the
SmarTrax valve.
NOTE:
Route the hose under the left side of the cab. Ensure the hose does not come into contact with the
cab.
Hydraulic System Installation: Install the Left and Right Steering Hoses
HYDRAULIC SYSTEM INSTALLATION
Installed Hoses (P/N
214-1000-861)
19
