Raven SmarTrax Installation Manual

Nitro n4 series
Hide thumbs Also See for SmarTrax:

Advertisement

Quick Links

Download this manual
SmarTrax™ Installation Manual
Nitro N4 Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmarTrax and is the answer not in the manual?

Questions and answers

Related Manuals for Raven SmarTrax

Summary of Contents for Raven SmarTrax

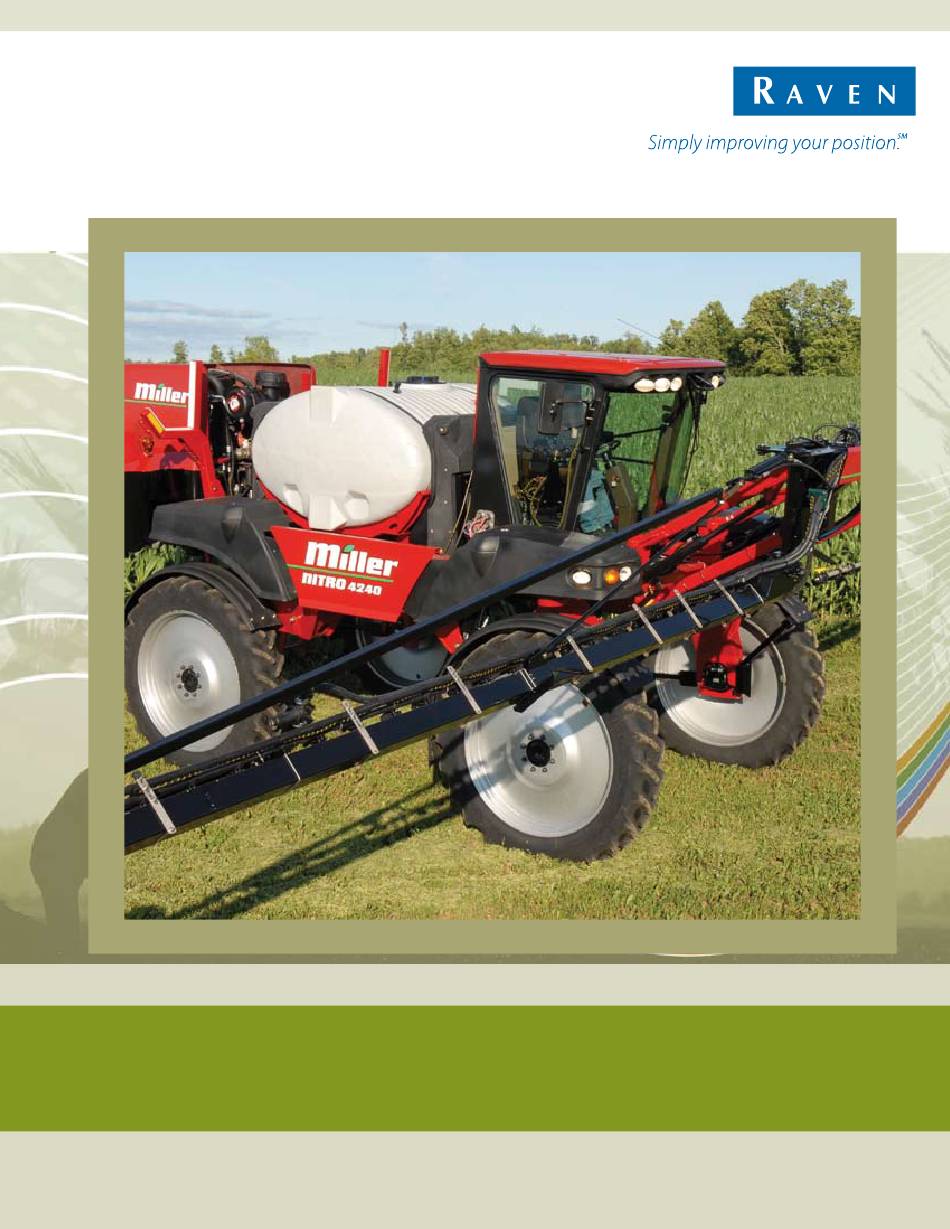

  • Page 1 SmarTrax™ Installation Manual Nitro N4 Series...
  • Page 2 GPS satellites, the OmniSTAR correction service or the WAAS correction service. Raven Industries accepts no responsibility for the use of the signal for other than the stated purpose. Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated benefits or profits, work stoppage or loss or impairment of data arising out of the use, or inability to use, the SmarTrax or any of its components.
  • Page 3 Manual # 016-0190-087 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates.

  • Page 4: Basic Kit

    Nitro N4 Series SmarTrax Installation Manual Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents Nitro N4 Series SmarTrax Kit Contents Quantity Item Description Part Number SENSOR ASSEMBLY, ROTARY WHEEL, 063-0181-013 ANGLE 100°...
  • Page 5 Caution must be exercised. Any work carried out on the hydraulic system must be performed in accordance with the machine manufacturerer’s approved maintenance instructions. Raven Industries recommends that appropri- ate protective equipment be worn when working on the hydraulic system. Ob- jects or materials that are able to bypass the machine’s hydraulic filtration system...
  • Page 6 Nitro N4 Series SmarTrax Installation Manual We welcome your feedback about this manual. If you have any comments or Contacting suggestions for improvement, please let us know by contacting our Customer Raven Support Center by any of the following methods:...
  • Page 7 H A P T E R OUNTING THE NIVERSAL RACKET AND ALVE Mount the SmarTrax valve to the mounting plate already on the machine. The plate is located on the backside of the front cross member just to the right of the steering orbital.
  • Page 8 Nitro N4 Series SmarTrax Installation Manual Notes:...
  • Page 9 Control Valve has been identified, remove the hose from the steering orbital and install Hoses on the appropriate tee fitting, found in the Raven adapter kit, to the steering orbital. Once the tee fitting is installed, reattach the original hose.
  • Page 10 Once the port has been identified, remove the hose from the steering orbital and install on the appropriate tee fitting, found in the Raven adapter kit, to the steering orbital. Once the tee fitting is installed, reattach the original hose.
  • Page 11 This port should be open since the original hose was removed and run to the LS-PV port in the previous step. Connect the Pressure Switch directly to the PS port on the SmarTrax valve.

  • Page 12: Hydraulic Schematic

    Nitro N4 Series SmarTrax Installation Manual Hydraulic Schematic...

  • Page 13: Position Sensor

    Manual # 016-0190-087 H A P T E R TEERING OSITION ENSOR Remove the plastic cover from over the top of the front left wheel to gain access to the steering cylinder area. Installing the Steering Position Remove Cover Sensor (SPS) With wheels pointed straight ahead, attach brackets to the machine as shown using the supplied hardware.
  • Page 14 Nitro N4 Series SmarTrax Installation Manual Attach the sensor to the bracket so the shaft is directly over the top of the king pin. Whith wheels pointing straight forward, align flatside of sensor shaft so it is per- pendicular to the notch in the sensor.

  • Page 15: Start-Up Procedures

    Manual # 016-0190-087 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, always follow these start-up pro- cedures. Turn the wheels fully from side to side numerous times to remove air from the hydraulic system.
  • Page 16 Nitro N4 Series SmarTrax Installation Manual Notes:...
  • Page 19 How Can I Get Service? Bring the defective part and proof of purchase to your Raven Dealer. If your Dealer agrees with the warranty claim, the Dealer will send the part and proof of purchase to their distributor or to Raven Industries for final approval.
  • Page 20 P.O. Box 5107 Fax: 605-331-0426 Sioux Falls, SD 57117-5107 www.ravenprecision.com atdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under copyright laws.
