Teldat S.A.

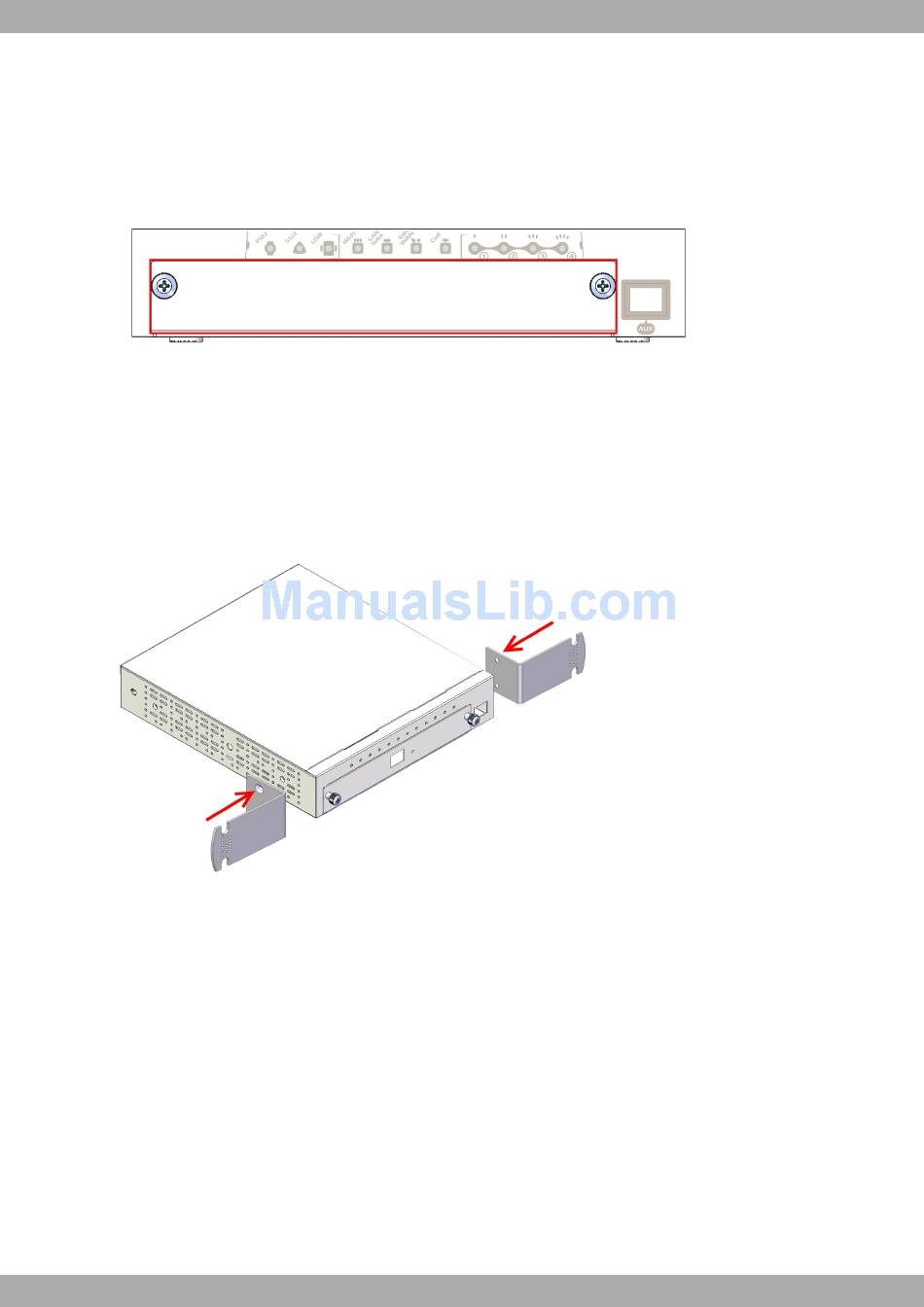

3.2 Expansion Slot
The Teldat Connect-104KF router has an expansion slot that is not used.
This slot is on the
Fig. 6: Expansion slot
3.3 Installation in a rack
The Teldat Connect-104KF router can be installed in a 19" rack. Mounting brackets and screws are not included
with the device as standard and must be purchased separately.
Each bracket is attached to the device using 2 screws, as shown in Figure 7.
Fig. 7: Anchor bolts for a rack
3.3.1 Standalone
The Teldat Connect-104KF router can be placed as a standalone on a flat, stable surface. The adhesive rubber feet
must be stuck to the bottom panel to prevent the router from sliding about.
You need to make sure that there is adequate room for ventilation and that the router is within reach of a power out-
let.
3.3.2 Wall mounting
The Teldat Connect-104KF router cannot be mounted on the wall.
Teldat Router Connect-104KF
Front Panel
on page 4 of the router, as shown in the following figure:
3 Components and Power Supply
7
