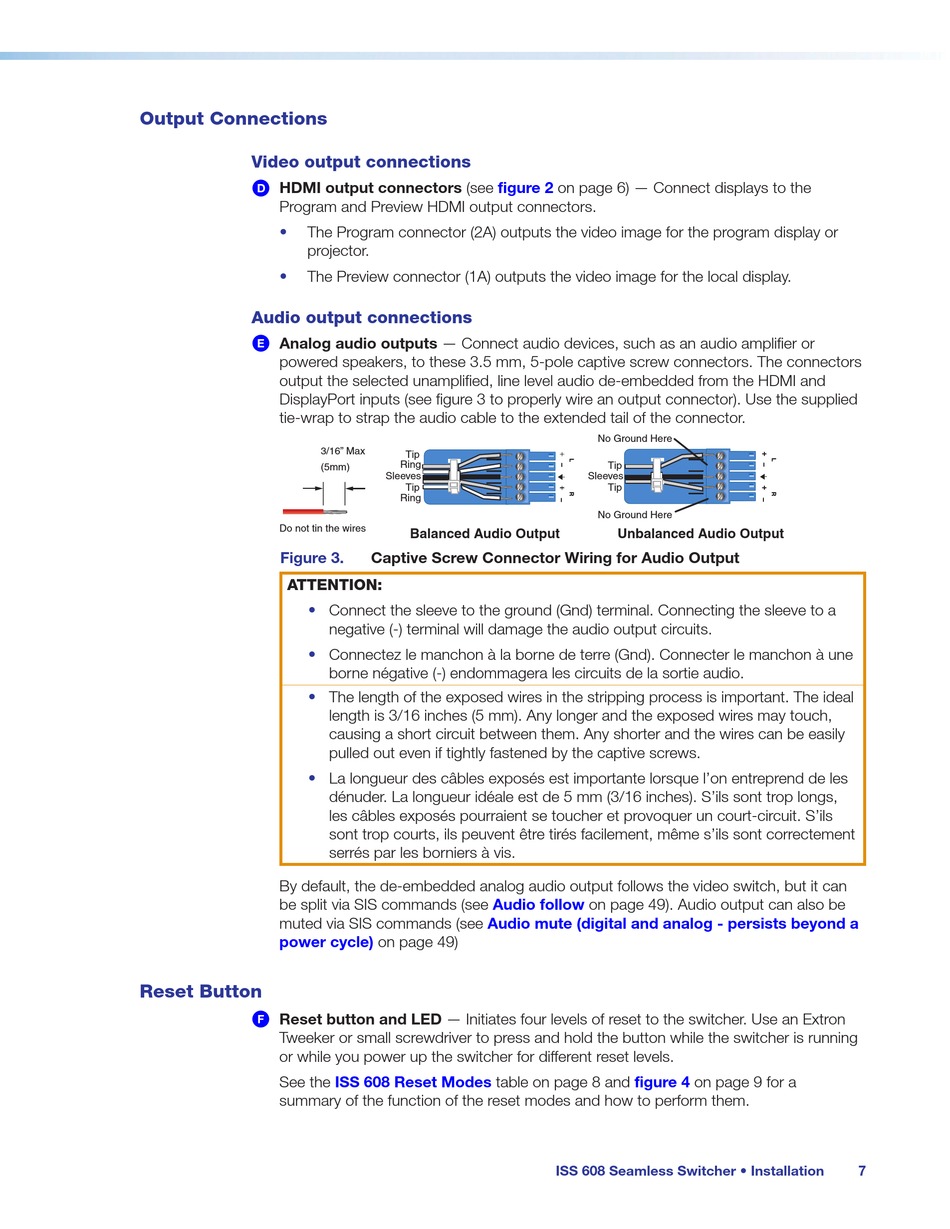

Output Connections

Video output connections
HDMI output connectors (see
D
Program and Preview HDMI output connectors.
• The Program connector (2A) outputs the video image for the program display or
projector.
The Preview connector (1A) outputs the video image for the local display.
•
Audio output connections
Analog audio outputs — Connect audio devices, such as an audio amplifier or
E
powered speakers, to these 3.5 mm, 5-pole captive screw connectors. The connectors
output the selected unamplified, line level audio de-embedded from the HDMI and
DisplayPort inputs (see figure 3 to properly wire an output connector). Use the supplied
tie-wrap to strap the audio cable to the extended tail of the connector.
Do not tin the wires
Figure 3.
ATTENTION:
•
•
•
•
By default, the de-embedded analog audio output follows the video switch, but it can
be split via SIS commands (see
muted via SIS commands (see
power cycle)

Reset Button

Reset button and LED — Initiates four levels of reset to the switcher. Use an Extron
F
Tweeker or small screwdriver to press and hold the button while the switcher is running
or while you power up the switcher for different reset levels.
See the
summary of the function of the reset modes and how to perform them.
figure 2
3/16" Max
Tip
Ring
(5mm)
Sleeves
Tip
Ring
Balanced Audio Output
Captive Screw Connector Wiring for Audio Output
Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a
negative (-) terminal will damage the audio output circuits.
Connectez le manchon à la borne de terre (Gnd). Connecter le manchon à une
borne négative (-) endommagera les circuits de la sortie audio.
The length of the exposed wires in the stripping process is important. The ideal
length is 3/16 inches (5 mm). Any longer and the exposed wires may touch,
causing a short circuit between them. Any shorter and the wires can be easily
pulled out even if tightly fastened by the captive screws.
La longueur des câbles exposés est importante lorsque l'on entreprend de les
dénuder. La longueur idéale est de 5 mm (3/16 inches). S'ils sont trop longs,
les câbles exposés pourraient se toucher et provoquer un court-circuit. S'ils
sont trop courts, ils peuvent être tirés facilement, même s'ils sont correctement
serrés par les borniers à vis.
Audio follow
Audio mute (digital and analog - persists beyond a
on page 49)
ISS 608 Reset Modes table on page 8 and
on page 6) — Connect displays to the
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
on page 49). Audio output can also be
figure 4 on page 9 for a
ISS 608 Seamless Switcher • Installation 7
