Output Configuration Menu

From the Output Configuration menu the user can configure the settings for the outputs
of the scaler including output resolution, HDMI format, and HDCP notification.
From the Output Configuration menu, press NEXT to enter the submenus (see figure 14).
Output Rate
Select the output resolution and refresh rate:
Rotate the horizontal ([) ADJUST knob
•
to select one of the available output
resolutions.
• Rotate the vertical ( { ) ADJUST knob to select
the rate for select resolutions.
See Scaler Resolution/EDID Emulation
Table
on page 19 for the available
resolutions and rates.
The resolution is the same for the Program and
Preview outputs.
HDMI Format
Select the HDMI format for each output:
Rotate the horizontal ( [ ) ADJUST knob to
•
select an output.
• Rotate the vertical ( { ) ADJUST knob to select
an HDMI format. The options are:
• Auto (default)
• DVI RGB 444
• RGB 444 FULL
RGB 444 Limited
•
• YUV 444 Limited
• YUV 422 Limited
YUV 420 Limited (available only for 3840x2160 and 4096x2160 resolutions)
•
HDCP Note
Select the HDCP notification to be displayed on the output when HDCP content is selected
but the connected display does not support HDCP:
• Rotate the horizontal ( [ ) ADJUST knob to select the type of notification. The options
are:
Green screen (default)
•
• Black screen
• User Image
• Rotate the vertical ( { ) ADJUST knob to select a user-created image file, if User Image is
selected.
NOTE: Upload images through PCS (see the ISS 608 PCS Help File).
MENU
Output
Configuration
NEXT
Menu
Output Rate
1080p @60Hz
Rotate
NEXT
or
Menu
Rotate
1A: HDMI Format
Auto
Rotate
NEXT
or
Menu Rotate
HDCP Note
On: Green
Rotate
NEXT
or
Menu
Rotate
the user image

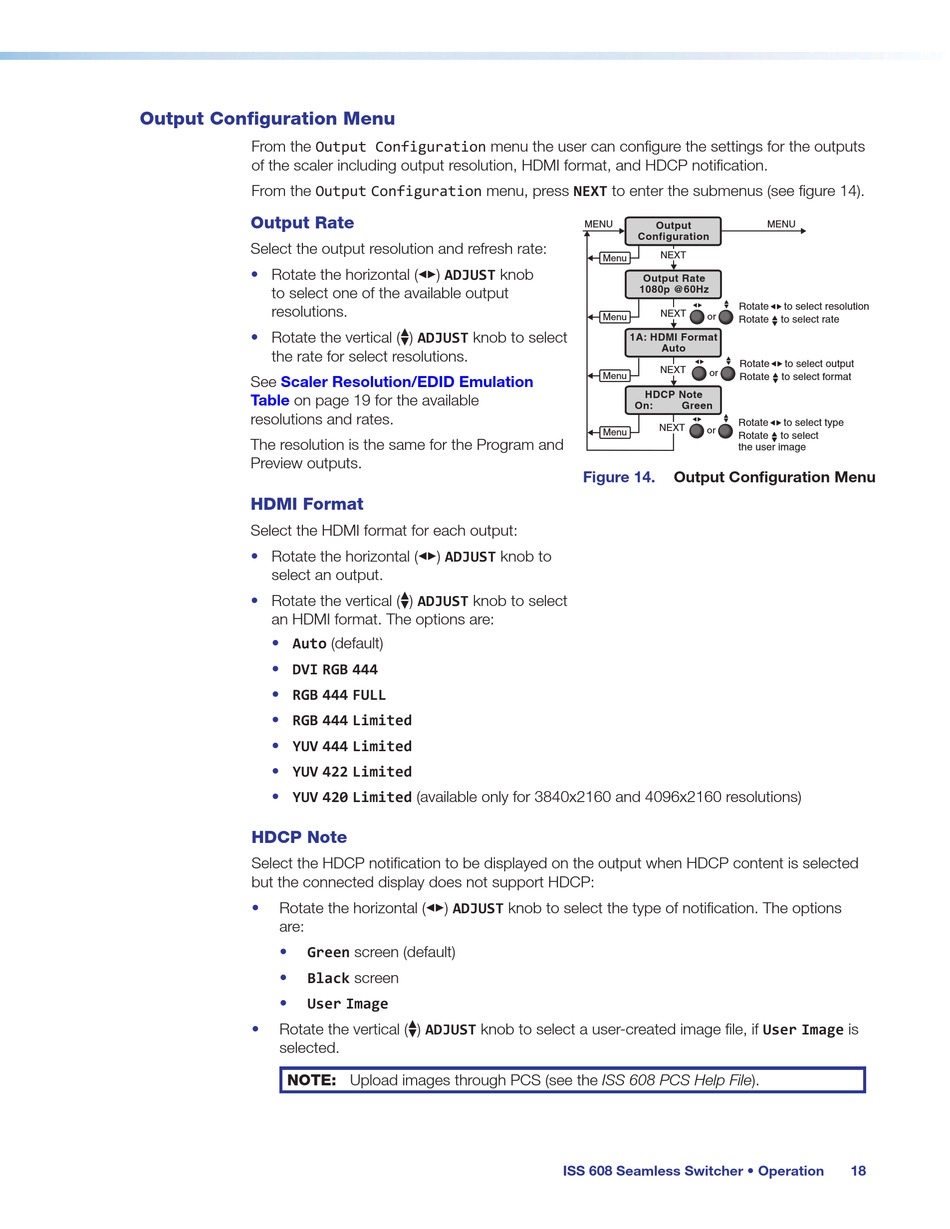

Figure 14. Output Configuration Menu
ISS 608 Seamless Switcher • Operation
