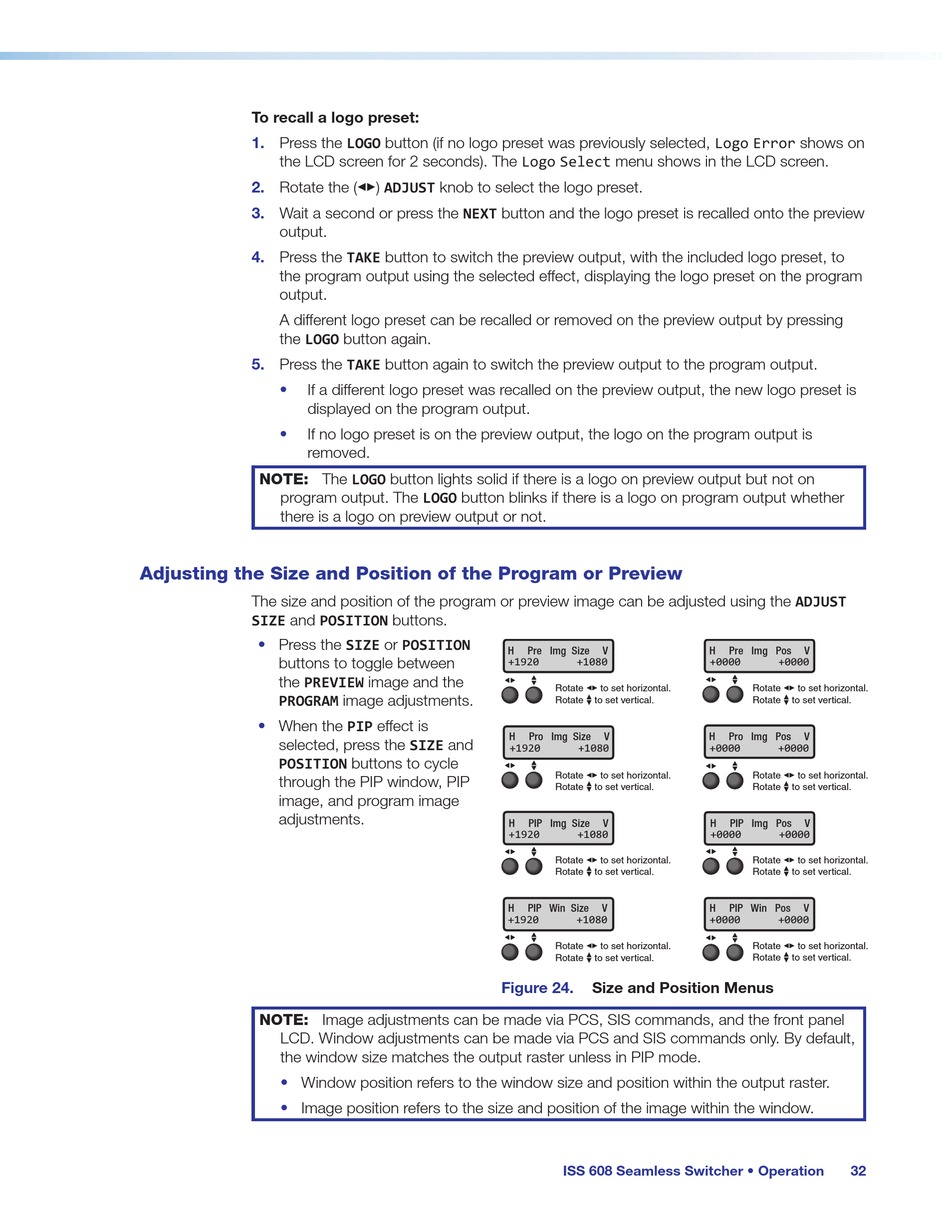

To recall a logo preset:
Press the LOGO button (if no logo preset was previously selected, Logo Error shows on
1.
the LCD screen for 2 seconds). The Logo Select menu shows in the LCD screen.
2.
Rotate the ( [ ) ADJUST knob to select the logo preset.
3. Wait a second or press the NEXT button and the logo preset is recalled onto the preview
output.
4. Press the TAKE button to switch the preview output, with the included logo preset, to
the program output using the selected effect, displaying the logo preset on the program
output.
A different logo preset can be recalled or removed on the preview output by pressing
the LOGO button again.
5. Press the TAKE button again to switch the preview output to the program output.
• If a different logo preset was recalled on the preview output, the new logo preset is
displayed on the program output.
If no logo preset is on the preview output, the logo on the program output is
•
removed.
NOTE: The LOGO button lights solid if there is a logo on preview output but not on
program output. The LOGO button blinks if there is a logo on program output whether
there is a logo on preview output or not.

Adjusting the Size and Position of the Program or Preview

The size and position of the program or preview image can be adjusted using the ADJUST
SIZE and POSITION buttons.
• Press the SIZE or POSITION
buttons to toggle between
the PREVIEW image and the
PROGRAM image adjustments.
When the PIP effect is
•
selected, press the SIZE and
POSITION buttons to cycle
through the PIP window, PIP
image, and program image
adjustments.
NOTE: Image adjustments can be made via PCS, SIS commands, and the front panel
LCD. Window adjustments can be made via PCS and SIS commands only. By default,
the window size matches the output raster unless in PIP mode.
• Window position refers to the window size and position within the output raster.
• Image position refers to the size and position of the image within the window.
H Pre Img Size V
+1920 +1080
Rotate [ to set horizontal.
Rotate { to set vertical.
H Pro Img Size V
+1920 +1080
Rotate [ to set horizontal.
Rotate { to set vertical.
H PIP Img Size V
+1920 +1080
Rotate [ to set horizontal.
Rotate { to set vertical.
H PIP Win Size V
+1920 +1080
Rotate [ to set horizontal.
Rotate { to set vertical.
Figure 24. Size and Position Menus
ISS 608 Seamless Switcher • Operation
H Pre Img Pos V
+0000 +0000
Rotate [ to set horizontal.
Rotate { to set vertical.
H Pro Img Pos V
+0000 +0000
Rotate [ to set horizontal.
Rotate { to set vertical.
H PIP Img Pos V
+0000 +0000
Rotate [ to set horizontal.
Rotate { to set vertical.
H PIP Win Pos V
+0000 +0000
Rotate [ to set horizontal.
Rotate { to set vertical.
