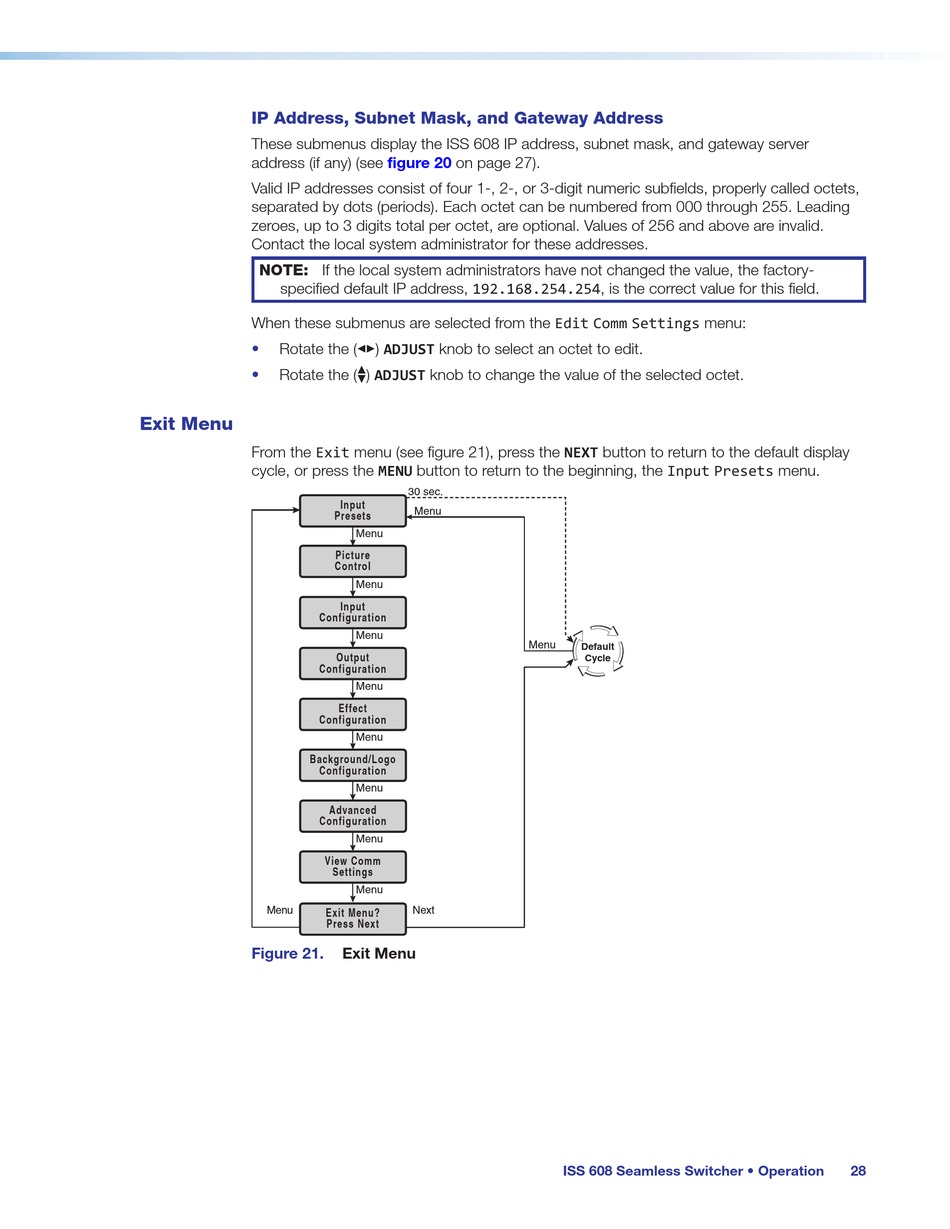

Exit Menu - Extron electronics ISS 608 User Manual

IP Address, Subnet Mask, and Gateway Address
These submenus display the ISS 608 IP address, subnet mask, and gateway server
address (if any) (see
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields, properly called octets,
separated by dots (periods). Each octet can be numbered from 000 through 255. Leading
zeroes, up to 3 digits total per octet, are optional. Values of 256 and above are invalid.
Contact the local system administrator for these addresses.
NOTE: If the local system administrators have not changed the value, the factory-
specified default IP address, 192.168.254.254, is the correct value for this field.
When these submenus are selected from the Edit Comm Settings menu:
• Rotate the ([) ADJUST knob to select an octet to edit.
• Rotate the ( { ) ADJUST knob to change the value of the selected octet.

Exit Menu

From the Exit menu (see figure 21), press the NEXT button to return to the default display
cycle, or press the MENU button to return to the beginning, the Input Presets menu.
Background/Logo
Menu
Figure 21.
figure 20 on page 27).
30 sec.
Input
Menu
Presets
Menu
Control
Menu
Input
Configuration
Menu
Output
Configuration
Menu
Effect
Configuration
Menu
Configuration
Menu
Advanced
Configuration
Menu
View Comm
Settings
Menu
Next
Exit Menu?
*
Press Next
Exit Menu
Menu
Default
Cycle
ISS 608 Seamless Switcher • Operation 28
