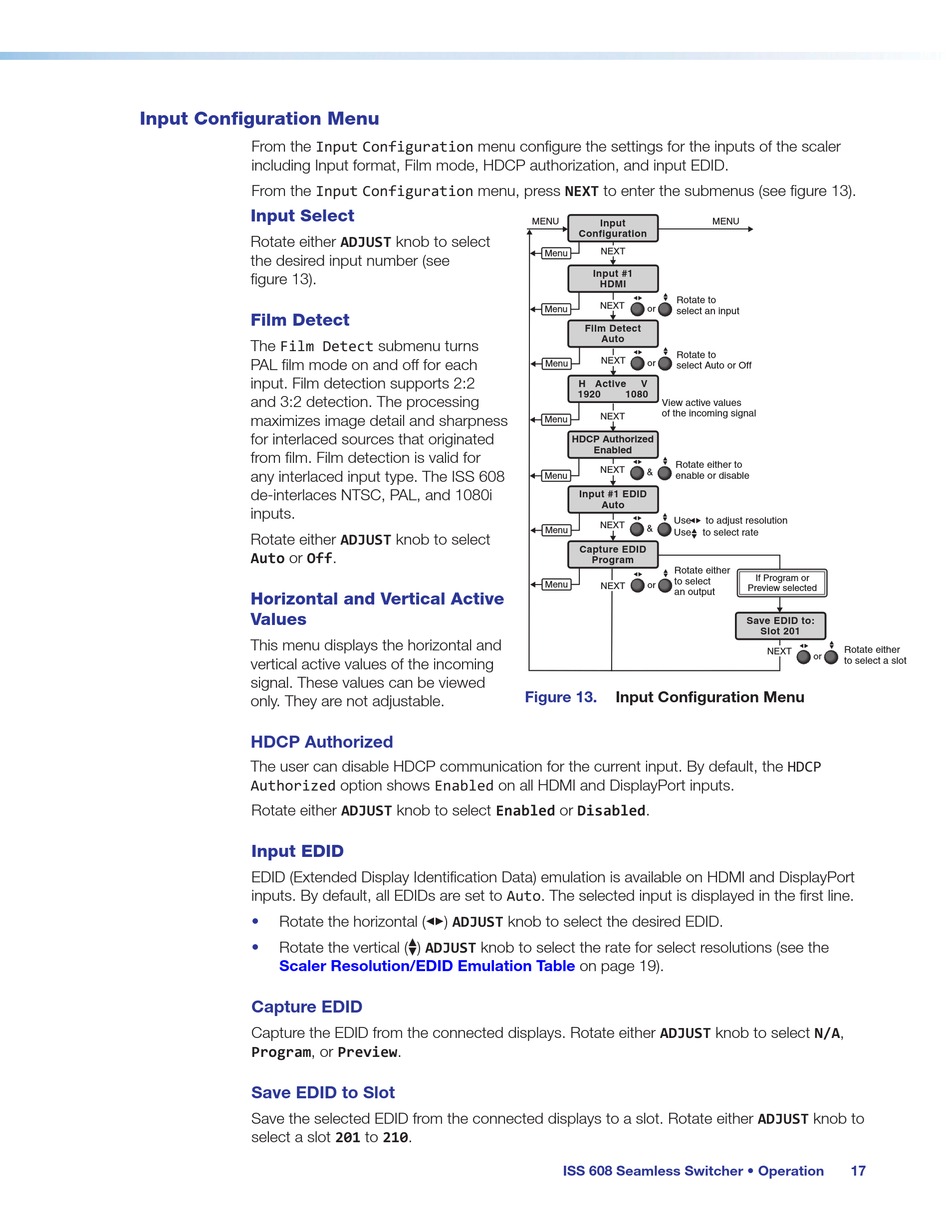

Input Configuration Menu

From the Input Configuration menu configure the settings for the inputs of the scaler
including Input format, Film mode, HDCP authorization, and input EDID.
From the Input Configuration menu, press NEXT to enter the submenus (see figure 13).
Input Select
Rotate either ADJUST knob to select
the desired input number (see
figure 13).
Film Detect
The Film Detect submenu turns
PAL film mode on and off for each
input. Film detection supports 2:2
and 3:2 detection. The processing
maximizes image detail and sharpness
for interlaced sources that originated
from film. Film detection is valid for
any interlaced input type. The ISS 608
de-interlaces NTSC, PAL, and 1080i
inputs.
Rotate either ADJUST knob to select
Auto or Off.
Horizontal and Vertical Active
Values
This menu displays the horizontal and
vertical active values of the incoming
signal. These values can be viewed
only. They are not adjustable.
HDCP Authorized
The user can disable HDCP communication for the current input. By default, the HDCP
Authorized option shows Enabled on all HDMI and DisplayPort inputs.
Rotate either ADJUST knob to select Enabled or Disabled.
Input EDID
EDID (Extended Display Identification Data) emulation is available on HDMI and DisplayPort
inputs. By default, all EDIDs are set to Auto. The selected input is displayed in the first line.
• Rotate the horizontal ([) ADJUST knob to select the desired EDID.
• Rotate the vertical ( { ) ADJUST knob to select the rate for select resolutions (see the
Scaler Resolution/EDID Emulation Table
Capture EDID
Capture the EDID from the connected displays. Rotate either ADJUST knob to select N/A,
Program, or Preview.
Save EDID to Slot
Save the selected EDID from the connected displays to a slot. Rotate either ADJUST knob to
select a slot 201 to 210.
MENU
Input
Configuration
NEXT
Menu
Input #1
HDMI
Rotate to
NEXT
or
Menu
select an input
Film Detect
Auto
Rotate to
NEXT
or
Menu
select Auto or Off
H Active V
1920 1080
View active values
of the incoming signal
NEXT
Menu
HDCP Authorized
Enabled
Rotate either to
NEXT
&
Menu enable or disable
Input #1 EDID
Auto
Use
NEXT
&
Menu
Use to select rate
Capture EDID
Program
Rotate either
to select
Menu or
NEXT
an output
Figure 13. Input Configuration Menu
on page 19).
ISS 608 Seamless Switcher • Operation
MENU
to adjust resolution
If Program or
Preview selected
Save EDID to:
Slot 201
Rotate either
NEXT
or
to select a slot
17
