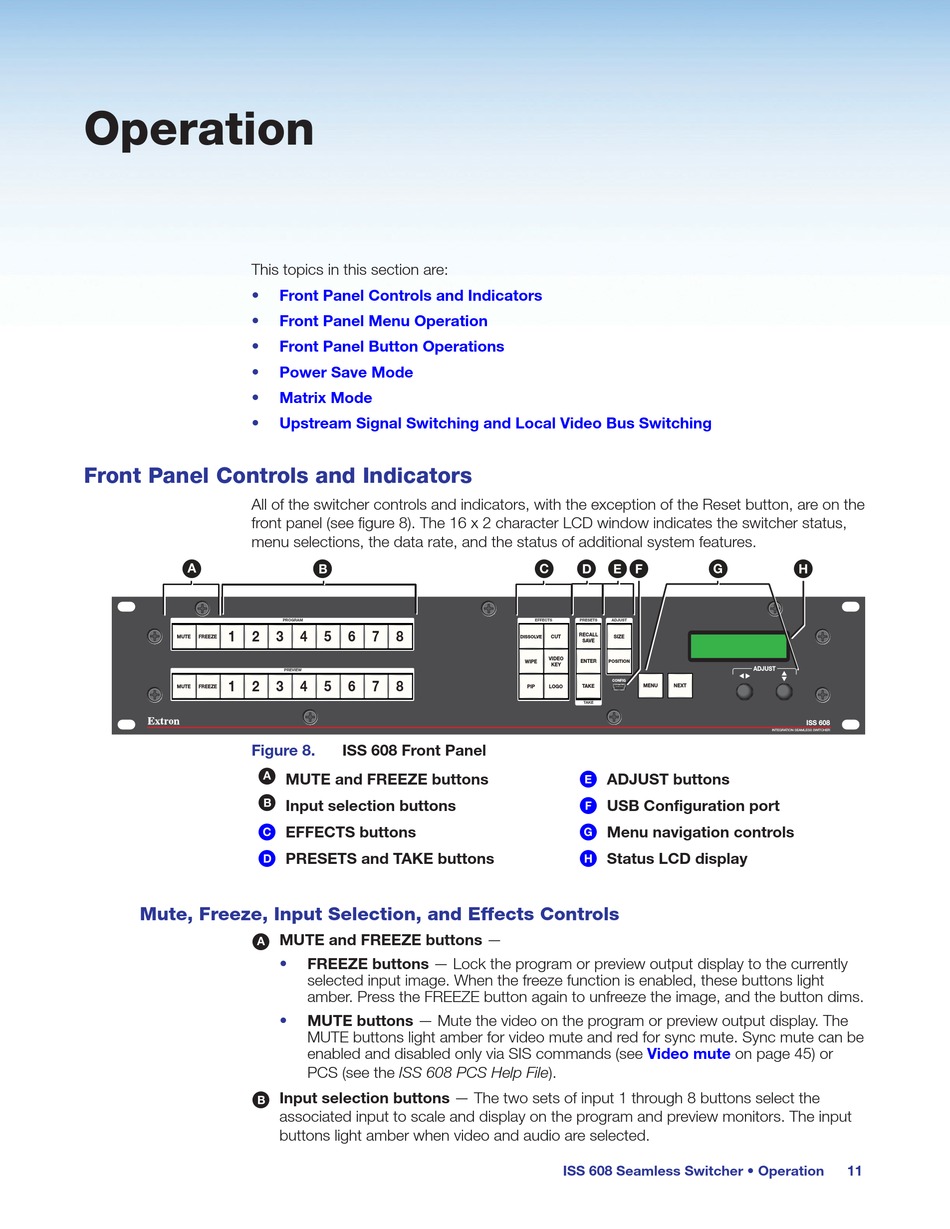

Operation

This topics in this section are:
•
•
•
•
•
•

Front Panel Controls and Indicators

All of the switcher controls and indicators, with the exception of the Reset button, are on the
front panel (see figure 8). The 16 x 2 character LCD window indicates the switcher status,
menu selections, the data rate, and the status of additional system features.
A A
1 2
MUTE FREEZE
1 2
MUTE FREEZE
Figure 8.
A
B
C
D

Mute, Freeze, Input Selection, and Effects Controls

A
B
Front Panel Controls and Indicators
Front Panel Menu Operation
Front Panel Button Operations
Power Save Mode
Matrix Mode
Upstream Signal Switching and Local Video Bus Switching
B B
PROGRAM
3 4 5 6 7 8
PREVIEW
3 4 5 6 7 8
ISS 608 Front Panel
MUTE and FREEZE buttons
Input selection buttons
EFFECTS buttons
PRESETS and TAKE buttons
MUTE and FREEZE buttons —
• FREEZE buttons — Lock the program or preview output display to the currently
selected input image. When the freeze function is enabled, these buttons light
amber. Press the FREEZE button again to unfreeze the image, and the button dims.
• MUTE buttons — Mute the video on the program or preview output display. The
MUTE buttons light amber for video mute and red for sync mute. Sync mute can be
enabled and disabled only via SIS commands (see
PCS (see the ISS 608 PCS Help File).
Input selection buttons — The two sets of input 1 through 8 buttons select the
associated input to scale and display on the program and preview monitors. The input
buttons light amber when video and audio are selected.
C C D D E E F F
EFFECTS PRESETS ADJUST
RECALL
DISSOLVE CUT SIZE
SAVE
VIDEO
WIPE ENTER POSITION
KEY
CONFIG
MENU NEXT
PIP LOGO TAKE
TAKE
ADJUST buttons
E
USB Configuration port
F
Menu navigation controls
G
Status LCD display
H
Video mute
ISS 608 Seamless Switcher • Operation
G G H H
ADJUST
ISS 608
INTEGRATION SEAMLESS SWITCHER
on page 45) or
