Advanced Configuration Menu

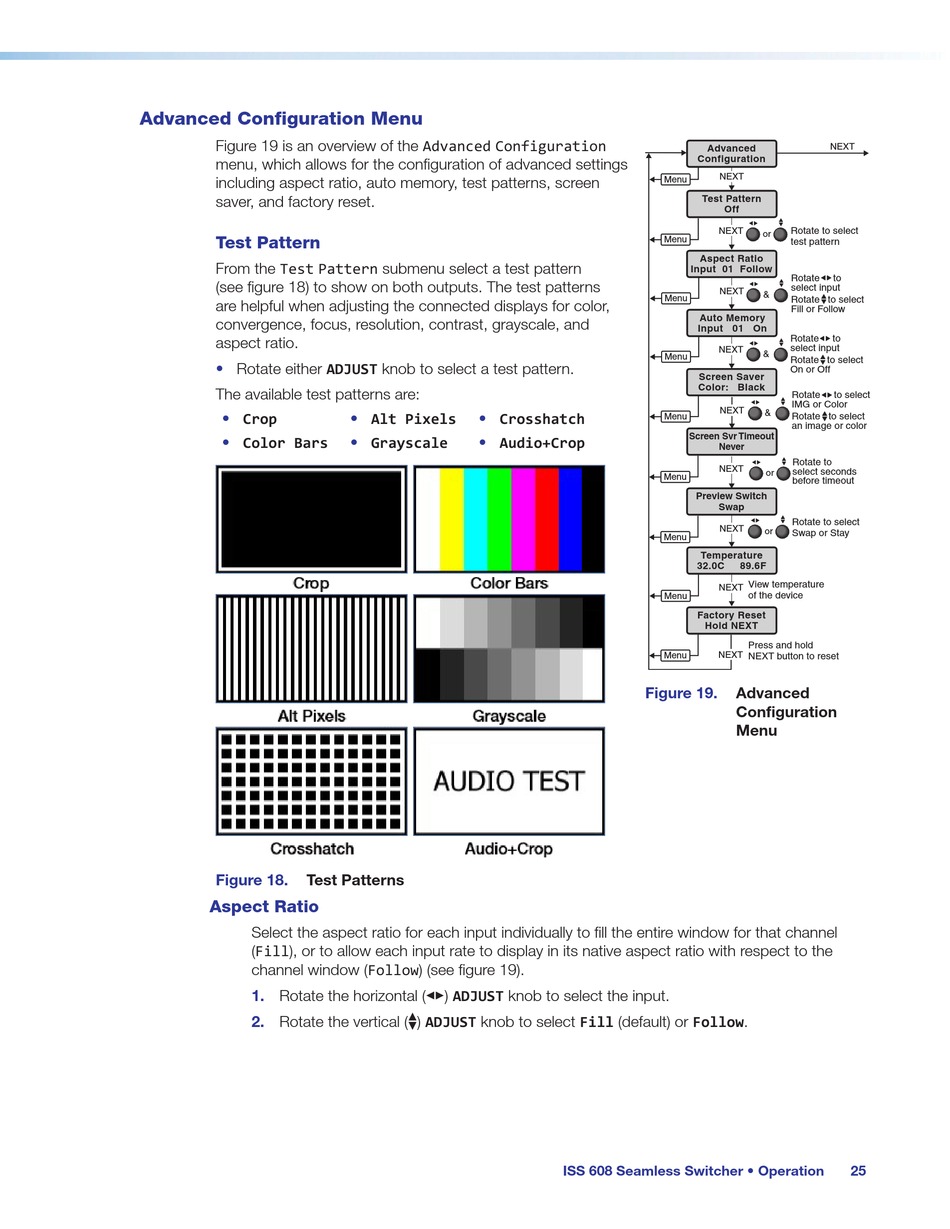

Figure 19 is an overview of the Advanced Configuration
menu, which allows for the configuration of advanced settings
including aspect ratio, auto memory, test patterns, screen
saver, and factory reset.
Test Pattern
From the Test Pattern submenu select a test pattern
(see figure 18) to show on both outputs. The test patterns
are helpful when adjusting the connected displays for color,
convergence, focus, resolution, contrast, grayscale, and
aspect ratio.
• Rotate either ADJUST knob to select a test pattern.
The available test patterns are:
• Crop
• Color Bars
Figure 18. Test Patterns
Aspect Ratio
Select the aspect ratio for each input individually to fill the entire window for that channel
(Fill), or to allow each input rate to display in its native aspect ratio with respect to the
channel window (Follow) (see figure 19).
1. Rotate the horizontal ( [ ) ADJUST knob to select the input.
2. Rotate the vertical ( { ) ADJUST knob to select Fill (default) or Follow.
• Alt Pixels • Crosshatch
• Grayscale • Audio+Crop
Advanced
Configuration
NEXT
Menu
Test Pattern
Off
NEXT
Menu
Aspect Ratio
Input 01 Follow
NEXT
Menu
Auto Memory
Input 01 On
NEXT
Menu
Screen Saver
Color: Black
NEXT
Menu
Screen Svr Timeout
Never
NEXT
Menu
Preview Switch
Swap
NEXT
Menu
Temperature
32.0C 89.6F
NEXT
Menu
Factory Reset
Hold NEXT
NEXT
Menu
Figure 19. Advanced
Configuration
Menu
ISS 608 Seamless Switcher • Operation
NEXT
Rotate to select
or
test pattern
Rotate to
select input
&
Rotate to select
Fill or Follow
Rotate to
select input
&
Rotate to select
On or Off
Rotate to select
IMG or Color
&
Rotate to select
an image or color
Rotate to
select seconds
or
before timeout
Rotate to select
or
Swap or Stay
View temperature
of the device
Press and hold
NEXT button to reset
25
