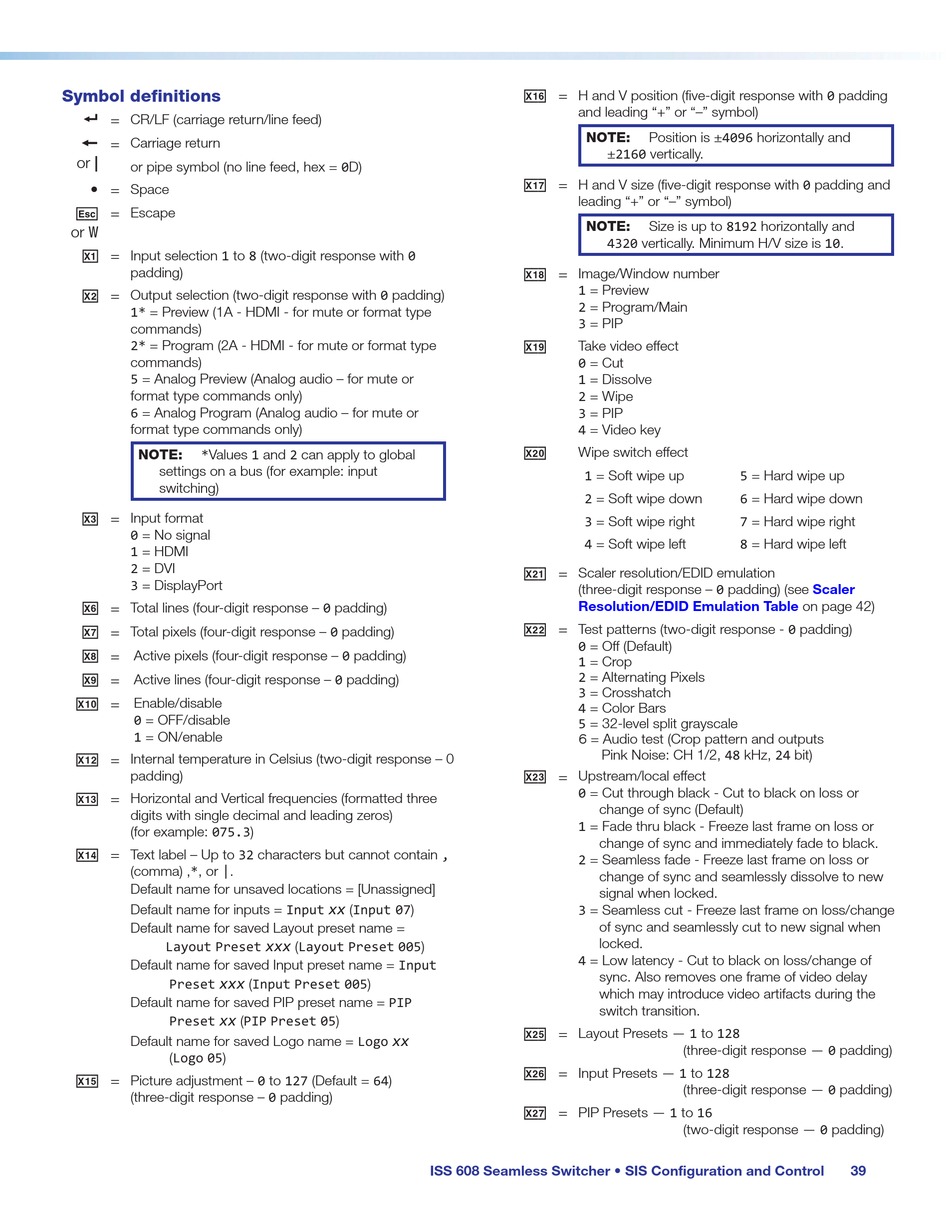

Symbol definitions
] =
CR/LF (carriage return/line feed)
}
= Carriage return
or |
or pipe symbol (no line feed, hex = 0D)
• = Space
E =
Escape
or W
X! =
Input selection 1 to 8 (two-digit response with 0
padding)
X@ =
Output selection (two-digit response with 0 padding)
1* = Preview (1A - HDMI - for mute or format type
commands)
2* = Program (2A - HDMI - for mute or format type
commands)
5 = Analog Preview (Analog audio – for mute or
format type commands only)
6 = Analog Program (Analog audio – for mute or
format type commands only)
*Values 1 and 2 can apply to global
NOTE:
settings on a bus (for example: input
switching)
X# =
Input format
0 = No signal
1 = HDMI
2 = DVI
3 = DisplayPort
X^ = Total lines (four-digit response – 0 padding)
X& = Total pixels (four-digit response – 0 padding)
X* = Active pixels (four-digit response – 0 padding)
X( = Active lines (four-digit response – 0 padding)
X1) =
Enable/disable
0 = OFF/disable
1 = ON/enable
X1@ =
Internal temperature in Celsius (two-digit response – 0
padding)
X1# =
Horizontal and Vertical frequencies (formatted three
digits with single decimal and leading zeros)
(for example: 075.3)
X1$ =
Text label – Up to 32 characters but cannot contain ,
(comma) ,*, or |.
Default name for unsaved locations = [Unassigned]
Default name for inputs = Input
Default name for saved Layout preset name =
Layout Preset
Default name for saved Input preset name = Input
xxx
Preset
Default name for saved PIP preset name = PIP
xx
Preset (PIP Preset 05)
Default name for saved Logo name = Logo
(Logo 05)
X1% = Picture adjustment – 0 to 127 (Default = 64)
(three-digit response – 0 padding)
xx
(Input 07)
xxx
(Layout Preset 005)
(Input Preset 005)
xx
X1^ =
H and V position (five-digit response with 0 padding
and leading "+" or "–" symbol)
NOTE:
±2160 vertically.
X1& =
H and V size (five-digit response with 0 padding and
leading "+" or "–" symbol)
NOTE:
4320 vertically. Minimum H/V size is 10.
X1* =
Image/Window number
1 = Preview
2 = Program/Main
3 = PIP
X1(
Take video effect
0 = Cut
1 = Dissolve
2 = Wipe
3 = PIP
4 = Video key
X2)
Wipe switch effect
1 = Soft wipe up
2 = Soft wipe down
3 = Soft wipe right
4 = Soft wipe left
X2! =
Scaler resolution/EDID emulation
(three-digit response – 0 padding) (see
Resolution/EDID Emulation Table
X2@ =
Test patterns (two-digit response - 0 padding)
0 = Off (Default)
1 = Crop
2 = Alternating Pixels
3 = Crosshatch
4 = Color Bars
5 = 32-level split grayscale
6 = Audio test (Crop pattern and outputs
Pink Noise: CH 1/2, 48 kHz, 24 bit)
X2# =
Upstream/local effect
0 = Cut through black - Cut to black on loss or
change of sync (Default)
1 = Fade thru black - Freeze last frame on loss or
change of sync and immediately fade to black.
2 = Seamless fade - Freeze last frame on loss or
change of sync and seamlessly dissolve to new
signal when locked.
3 = Seamless cut - Freeze last frame on loss/change
of sync and seamlessly cut to new signal when
locked.
4 = Low latency - Cut to black on loss/change of
sync. Also removes one frame of video delay
which may introduce video artifacts during the
switch transition.
X2% =
Layout Presets — 1 to 128
X2^ =
Input Presets — 1 to 128
X2& =
PIP Presets — 1 to 16
ISS 608 Seamless Switcher • SIS Configuration and Control
Position is ±4096 horizontally and
Size is up to 8192 horizontally and
5 = Hard wipe up
6 = Hard wipe down
7 = Hard wipe right
8 = Hard wipe left
Scaler
on page 42)
(three-digit response — 0 padding)
(three-digit response — 0 padding)
(two-digit response — 0 padding)
39
