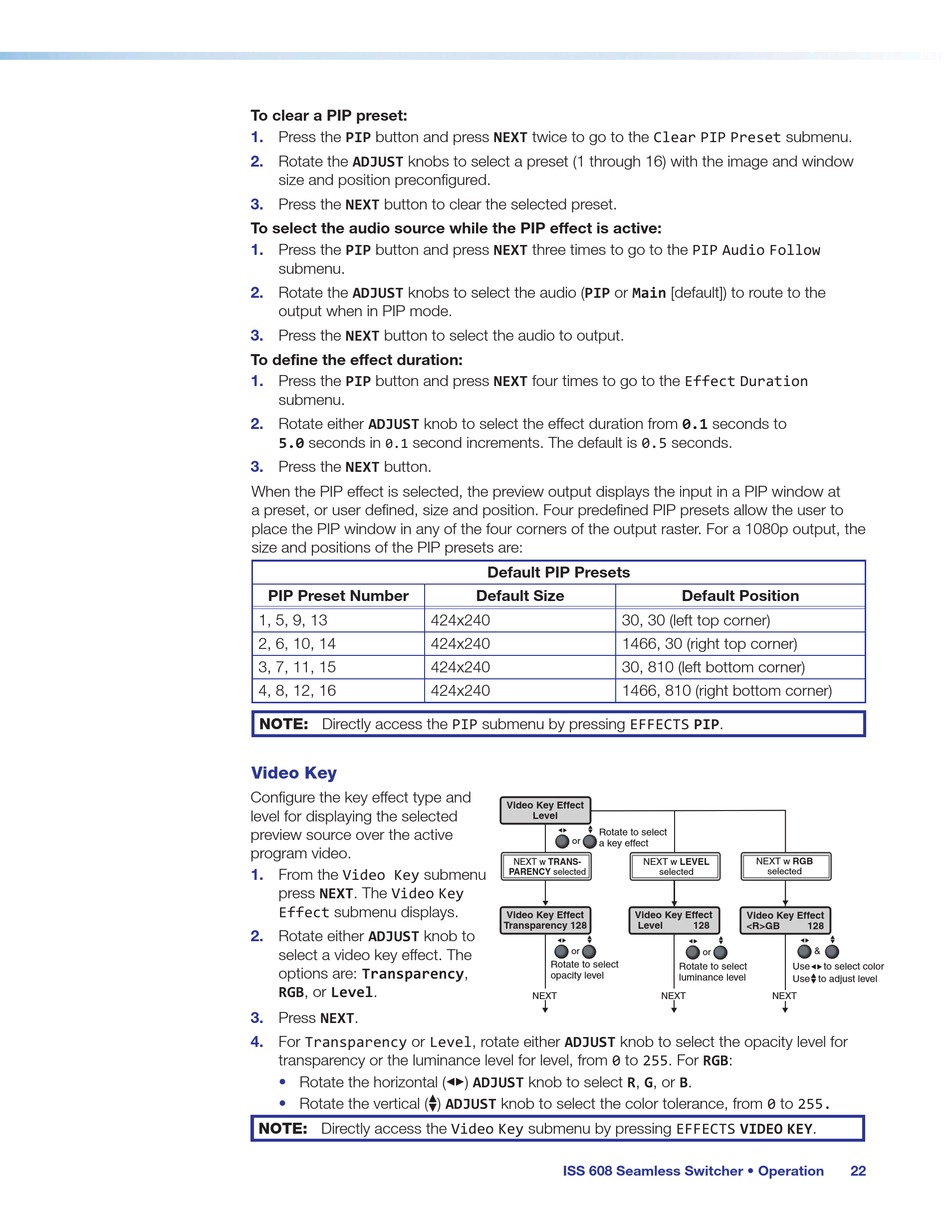

To clear a PIP preset:
Press the PIP button and press NEXT twice to go to the Clear PIP Preset submenu.
1.
2. Rotate the ADJUST knobs to select a preset (1 through 16) with the image and window
size and position preconfigured.
3. Press the NEXT button to clear the selected preset.
To select the audio source while the PIP effect is active:
Press the PIP button and press NEXT three times to go to the PIP Audio Follow
1.
submenu.
2. Rotate the ADJUST knobs to select the audio (PIP or Main [default]) to route to the
output when in PIP mode.
3. Press the NEXT button to select the audio to output.
To define the effect duration:
Press the PIP button and press NEXT four times to go to the Effect Duration
1.
submenu.
2. Rotate either ADJUST knob to select the effect duration from 0.1 seconds to
second increments. The default is 0.5 seconds.
5.0 seconds in
0.1
3. Press the NEXT button.
When the PIP effect is selected, the preview output displays the input in a PIP window at
a preset, or user defined, size and position. Four predefined PIP presets allow the user to
place the PIP window in any of the four corners of the output raster. For a 1080p output, the
size and positions of the PIP presets are:
PIP Preset Number
1, 5, 9, 13
2, 6, 10, 14
3, 7, 11, 15
4, 8, 12, 16
NOTE: Directly access the PIP submenu by pressing EFFECTS PIP.
Video Key
Configure the key effect type and
level for displaying the selected
preview source over the active
program video.
From the Video Key submenu
1.
press NEXT. The Video Key
Effect submenu displays.
2. Rotate either ADJUST knob to
select a video key effect. The
options are: Transparency,
RGB, or Level.
3. Press NEXT.
For Transparency or Level, rotate either ADJUST knob to select the opacity level for
4.
transparency or the luminance level for level, from 0 to 255. For RGB:
Rotate the horizontal ( [ ) ADJUST knob to select R, G, or B.
•
Rotate the vertical ( { ) ADJUST knob to select the color tolerance, from 0 to 255.
•
NOTE: Directly access the Video Key submenu by pressing EFFECTS VIDEO KEY.
Default PIP Presets
Default Size
424x240
424x240
424x240
424x240
Video Key Effect
Level
Rotate to select
or
a key effect
NEXT w TRANS-
PARENCY selected
Video Key Effect
Transparency 128
or
Rotate to select
opacity level
NEXT
ISS 608 Seamless Switcher • Operation
Default Position
30, 30 (left top corner)
1466, 30 (right top corner)
30, 810 (left bottom corner)
1466, 810 (right bottom corner)
NEXT w LEVEL NEXT w RGB
selected selected
Video Key Effect Video Key Effect
Level 128
<R>GB
or
Rotate to select Use
luminance level
Use to adjust level
NEXT NEXT
128
&
to select color
22
