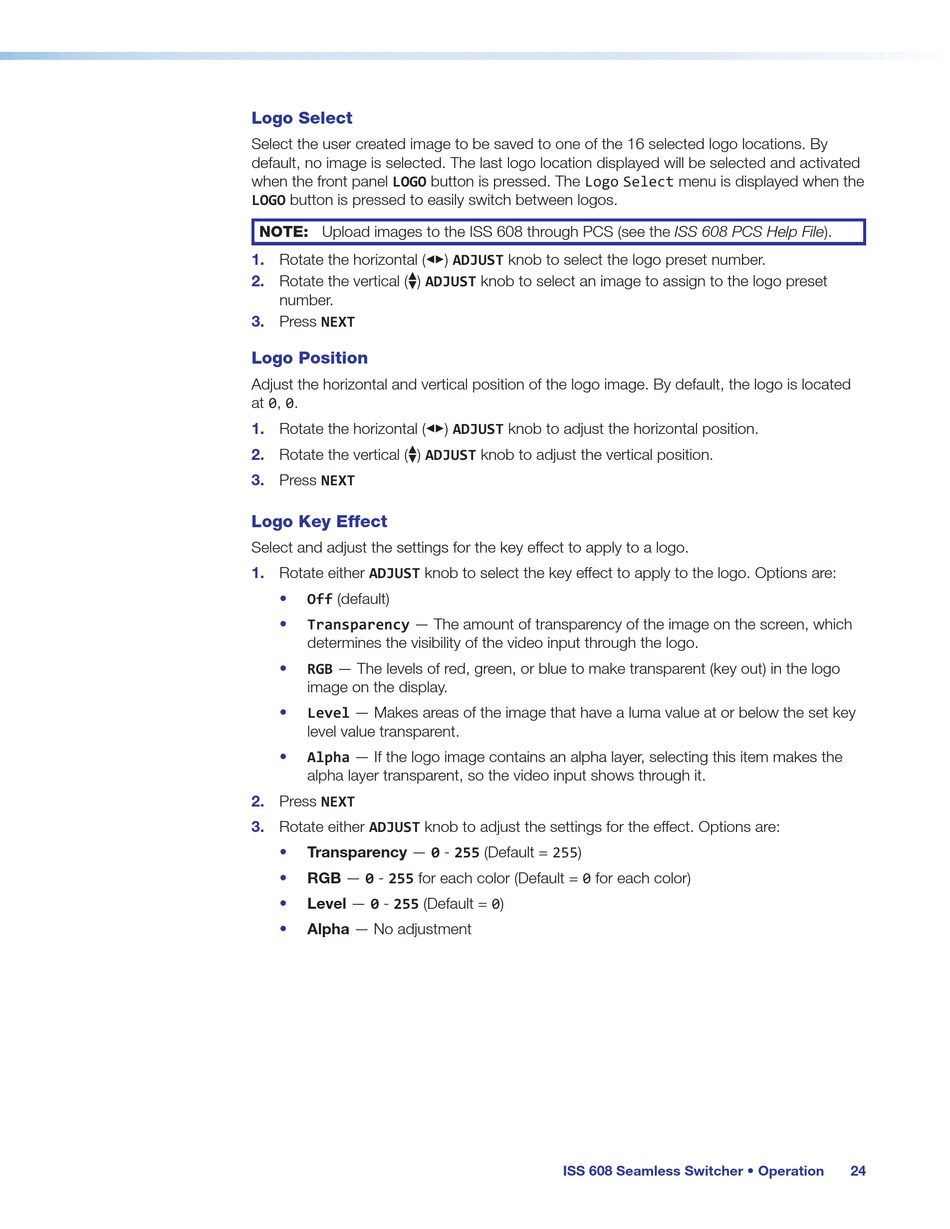

Logo Select
Select the user created image to be saved to one of the 16 selected logo locations. By
default, no image is selected. The last logo location displayed will be selected and activated
when the front panel LOGO button is pressed. The Logo Select menu is displayed when the
LOGO button is pressed to easily switch between logos.
NOTE: Upload images to the ISS 608 through PCS (see the ISS 608 PCS Help File).
1. Rotate the horizontal ( [ ) ADJUST knob to select the logo preset number.
2. Rotate the vertical ( { ) ADJUST knob to select an image to assign to the logo preset
number.
3. Press NEXT
Logo Position
Adjust the horizontal and vertical position of the logo image. By default, the logo is located
at 0, 0.
1. Rotate the horizontal ( [ ) ADJUST knob to adjust the horizontal position.
2. Rotate the vertical ( { ) ADJUST knob to adjust the vertical position.
3. Press NEXT
Logo Key Effect
Select and adjust the settings for the key effect to apply to a logo.
1. Rotate either ADJUST knob to select the key effect to apply to the logo. Options are:
• Off (default)
Transparency — The amount of transparency of the image on the screen, which
•
determines the visibility of the video input through the logo.
• RGB — The levels of red, green, or blue to make transparent (key out) in the logo
image on the display.
• Level — Makes areas of the image that have a luma value at or below the set key
level value transparent.
• Alpha — If the logo image contains an alpha layer, selecting this item makes the
alpha layer transparent, so the video input shows through it.
2. Press NEXT
3. Rotate either ADJUST knob to adjust the settings for the effect. Options are:
Transparency — 0 - 255 (Default = 255)
•
RGB — 0 - 255 for each color (Default = 0 for each color)
•
Level — 0 - 255 (Default = 0)
•
Alpha — No adjustment
•
ISS 608 Seamless Switcher • Operation 24
