Menu Overview

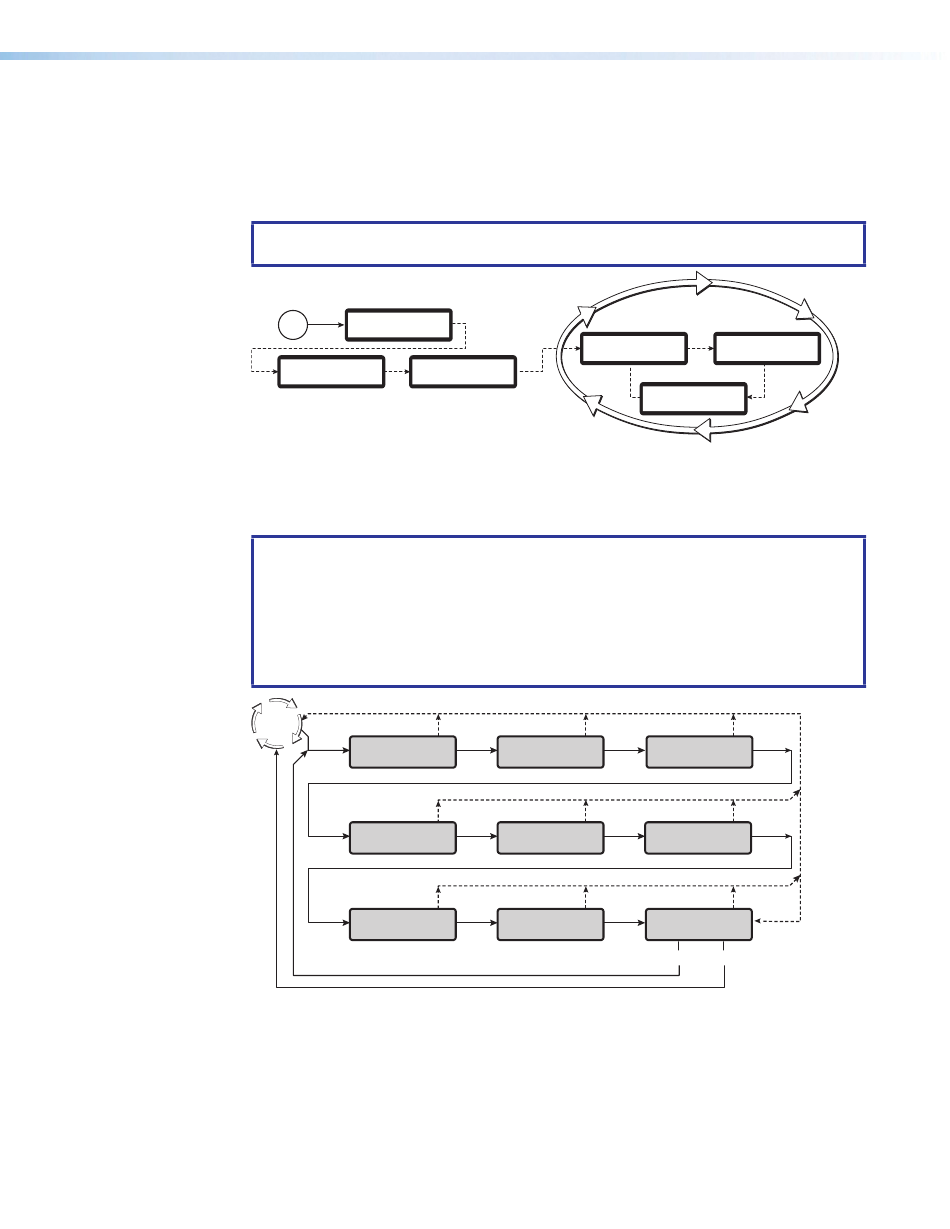

After start-up, when no adjustments are actively being made, the default display cycle
(see figure 9) runs on the menu display LCD. The screen progressively cycles through the
program and preview input format information, showing the number and video format of the
active input and the current output resolution.
NOTE: If a signal is not present on the currently selected input, No Valid Signal
appears in place of the input type (for example, Prev #4 No Valid Signal).
Power
on
Extron
ISS 608
Figure 9.
Press the MENU button once to bring up the first main (top level) menu (see figure 9). Each
successive MENU button press cycles to the next main menu (see figure 10 for a flowchart of
the main menus in the menu system).
NOTES:
From any menu or submenu, after 30 seconds of inactivity, the ISS 608 times-out
•
to the default display cycle.
• In all the flowcharts in this chapter, solid lines indicate screen changes initiated by
the operator. Dashed lines indicate screen changes resulting from a timeout.
• A complete schematic of the menus and submenus is in the reference section (see
Front Panel Menu Diagrams
Default
Cycle
Menu
Menu
Menu
Figure 10.
The top level menus are displayed, in order, on the LCD panel by pressing the MENU front
panel button. To return to the default cycle from a top level menu or submenu, press MENU
repeatedly until EXIT MENU? shows, then press NEXT.
Press NEXT when a menu displays to access its submenu. Within the submenu, press MENU
to exit the submenu and return to the currently active menu. Press NEXT to move to the next
submenu. Submenu details with configuration and options are on the following pages.
Extron
Electronics
60-1684-01
FW Ver 1.00
ISS Default Display Cycle
on page 76).
30 sec.
Input Menu
Presets
30 sec.
Menu
Output
Configuration Configuration
30 sec.
Menu
Advanced
Configuration
Menu System Flowchart
Default Display Cycle
Prog #01 HDMI
1080p @60Hz
2
sec.
2
Output Rate
sec.
1080p @60Hz
30 sec.
Menu Input
Configuration
Controls
30 sec.
Menu
Effect
Background/Logo
Configuration
30 sec.
Menu
View Comm Exit Menu?
Settings Press Next
Menu
ISS 608 Seamless Switcher • Operation
Prev #08 DP
720p @60Hz
2
sec.
30 sec.
Menu
30 sec.
Menu
30 sec.
30 sec.
Next
14
