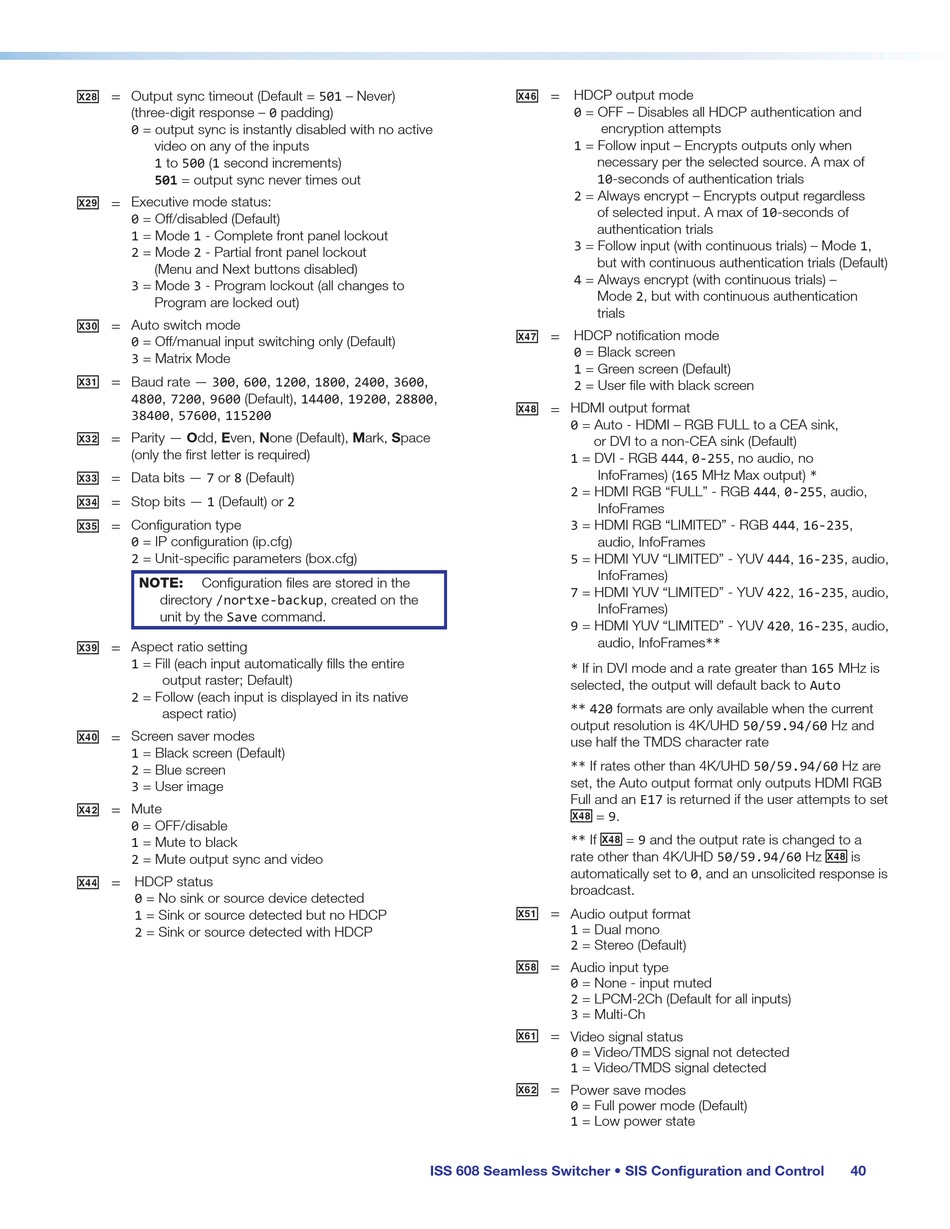

X2* =
Output sync timeout (Default = 501 – Never)
(three-digit response – 0 padding)
0 = output sync is instantly disabled with no active
video on any of the inputs
1 to 500 (1 second increments)
501 = output sync never times out
X2( =
Executive mode status:
0 = Off/disabled (Default)
1 = Mode 1 - Complete front panel lockout
2 = Mode 2 - Partial front panel lockout
(Menu and Next buttons disabled)
3 = Mode 3 - Program lockout (all changes to
Program are locked out)
X3) =
Auto switch mode
0 = Off/manual input switching only (Default)
3 = Matrix Mode
X3! =
Baud rate — 300 , 600
, ,
4800 7200 9600 (Default), 14400
, ,
38400 57600 115200
X3@ =
Parity — Odd, Even, None (Default), Mark, Space
(only the first letter is required)
X3# =
Data bits — 7 or 8 (Default)
X3$ =
Stop bits — 1 (Default) or 2
X3% =
Configuration type
0 = IP configuration (ip.cfg)
2 = Unit-specific parameters (box.cfg)
NOTE: Configuration files are stored in the
directory /nortxe-backup, created on the
unit by the Save command.
X3( =
Aspect ratio setting
1 = Fill (each input automatically fills the entire
output raster; Default)
2 = Follow (each input is displayed in its native
aspect ratio)
X4) =
Screen saver modes
1 = Black screen (Default)
2 = Blue screen
3 = User image
X4@ =
Mute
0 = OFF/disable
1 = Mute to black
2 = Mute output sync and video
X4$ =
HDCP status
0 = No sink or source device detected
1 = Sink or source detected but no HDCP
2 = Sink or source detected with HDCP
, 1200 , 1800 , 2400 , 3600 ,
, , ,
19200 28800
ISS 608 Seamless Switcher • SIS Configuration and Control
X4^ =
HDCP output mode
0 = OFF – Disables all HDCP authentication and
encryption attempts
1 = Follow input – Encrypts outputs only when
necessary per the selected source. A max of
10-seconds of authentication trials
2 = Always encrypt – Encrypts output regardless
of selected input. A max of 10-seconds of
authentication trials
3 = Follow input (with continuous trials) – Mode 1,
but with continuous authentication trials (Default)
4 = Always encrypt (with continuous trials) –
Mode 2, but with continuous authentication
trials
X4& =
HDCP notification mode
0 = Black screen
1 = Green screen (Default)
2 = User file with black screen
X4* =
HDMI output format
0 = Auto - HDMI – RGB FULL to a CEA sink,
or DVI to a non-CEA sink (Default)
1 = DVI - RGB 444, 0-255, no audio, no
InfoFrames) (165 MHz Max output) *
2 = HDMI RGB "FULL" - RGB 444, 0-255, audio,
InfoFrames
3 = HDMI RGB "LIMITED" - RGB 444, 16-235,
audio, InfoFrames
5 = HDMI YUV "LIMITED" - YUV 444, 16-235, audio,
InfoFrames)
7 = HDMI YUV "LIMITED" - YUV 422, 16-235, audio,
InfoFrames)
9 = HDMI YUV "LIMITED" - YUV 420, 16-235, audio,
audio, InfoFrames**
* If in DVI mode and a rate greater than 165 MHz is
selected, the output will default back to Auto
** 420 formats are only available when the current
output resolution is 4K/UHD 50/59.94/60 Hz and
use half the TMDS character rate
** If rates other than 4K/UHD 50/59.94/60 Hz are
set, the Auto output format only outputs HDMI RGB
Full and an E17 is returned if the user attempts to set
X4*
= 9.
X4*
** If = 9 and the output rate is changed to a
rate other than 4K/UHD 50/59.94/60 Hz
automatically set to 0, and an unsolicited response is
broadcast.
X5! =
Audio output format
1 = Dual mono
2 = Stereo (Default)
X5* =
Audio input type
0 = None - input muted
2 = LPCM-2Ch (Default for all inputs)
3 = Multi-Ch
X6! =
Video signal status
0 = Video/TMDS signal not detected
1 = Video/TMDS signal detected
X6@ =
Power save modes
0 = Full power mode (Default)
1 = Low power state
X4*
