Software Menu

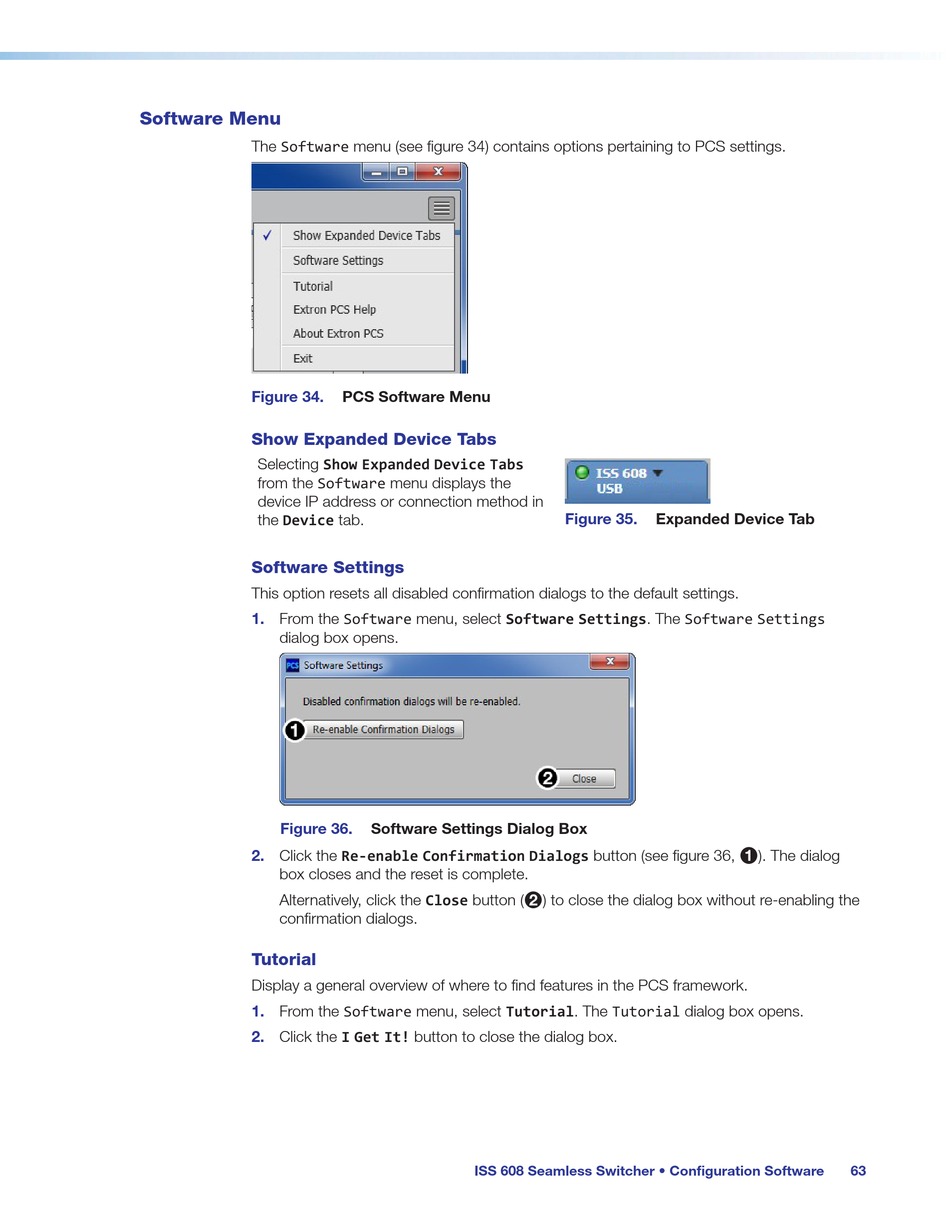

The Software menu (see figure 34) contains options pertaining to PCS settings.
Figure 34.
Show Expanded Device Tabs
Selecting Show Expanded Device Tabs
from the Software menu displays the
device IP address or connection method in
the Device tab.
Software Settings
This option resets all disabled confirmation dialogs to the default settings.
From the Software menu, select Software Settings. The Software Settings
1.
dialog box opens.
Figure 36.
2. Click the Re-enable Confirmation Dialogs button (see figure 36,
box closes and the reset is complete.
Alternatively, click the Close button (
confirmation dialogs.
Tutorial
Display a general overview of where to find features in the PCS framework.
1. From the Software menu, select Tutorial. The Tutorial dialog box opens.
2. Click the I Get It! button to close the dialog box.
PCS Software Menu
Software Settings Dialog Box
ISS 608 Seamless Switcher • Configuration Software
Figure 35. Expanded Device Tab
) to close the dialog box without re-enabling the
2
). The dialog
1
63
