2.2.7 Analog Output
The C191HM provides one optically isolated analog output with current output
options of 0-20 mA and 4-20 mA (current loop load of up to 500 Ohm). The
analog output must be used with a 24 V DC external power supply.
14
PLC OR SC ADA
INPUT OF
0-2 0mA OR
24 V D C
4-2 0mA
=
LOA D
UP TO
51 0
O HM
16 17
2 4V
OUT
AN ALOG OU TPU T
C19 1H M

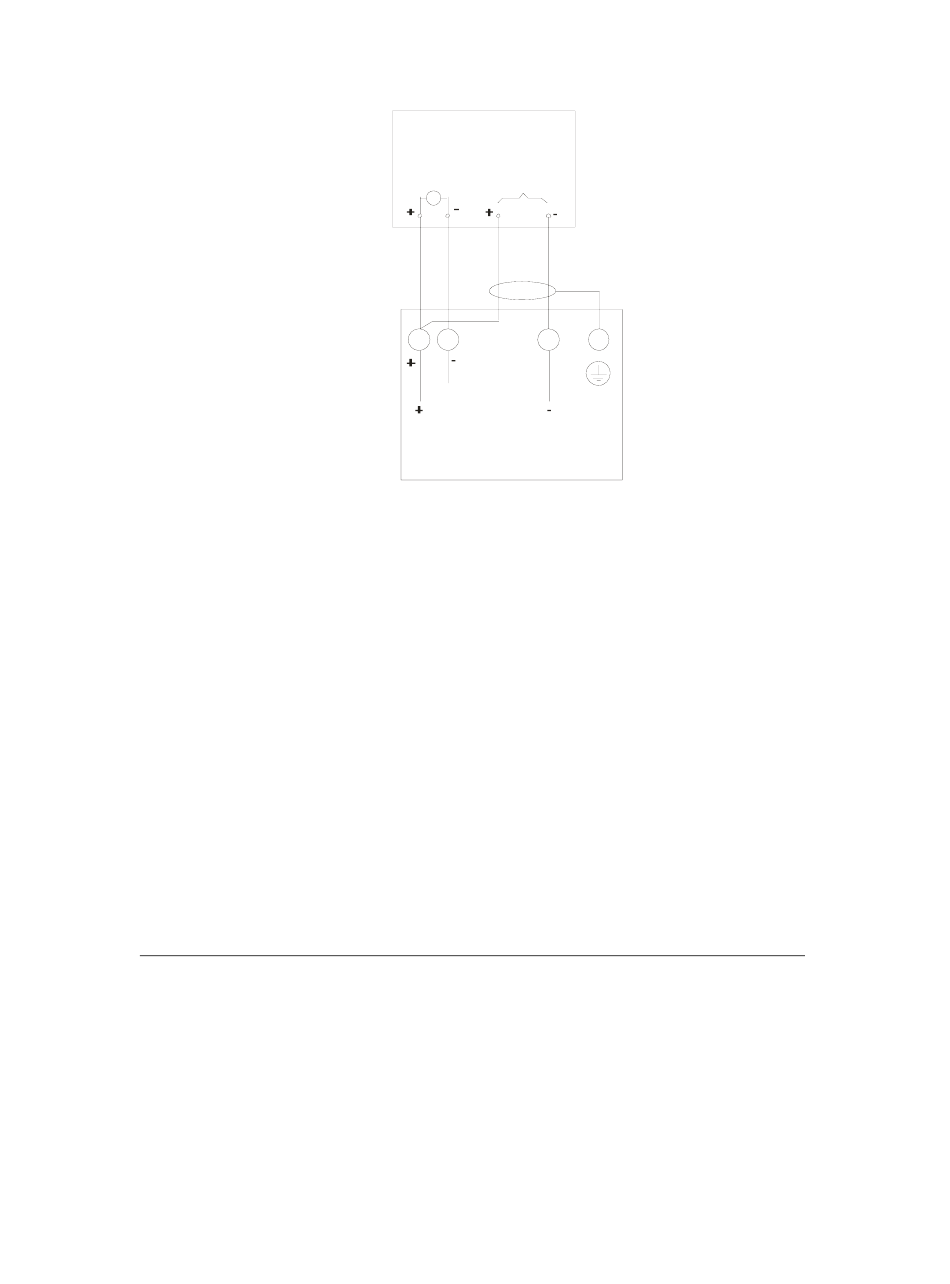

Figure 2-11 Analog Output Connection
SHIELD
18 19
c99 -090 43
Chapter 2 Installation
