Wiring Configuration
(See parameter setup instructions in Section 4.1)
3-wire direct connection using 2 CTs (2-element)
4-wire WYE direct connection using 3 CTs (3-element)
4-wire WYE connection using 3 PTs, 3 CTs (3-element)
3-wire open delta connection using 2 PTs, 2 CTs (2-element)
3-wire open delta connection using 2 PTs, 3 CTs (2½-element) 3OP3
4-wire WYE connection using 2 PTs, 3 CTs (2½-element)
4-wire delta direct connection using 3 CTs (3-element)
LINE 1 (A)
LINE 2 (B)
LINE 3 (C)
Voltages
2
5
8
11
Chapter 2 Installation
K
L
-
+
LOAD
K L
-
+
-
Currents
+
1
-
3
4
6
+
7
-
9
10
12
Wiring
Setup Mode Connection
3dir2 Figure 2-2
4Ln3 or 4LL3 Figure 2-3
4Ln3 or 4LL3 Figure 2-4
3OP2 Figure 2-5
Figure 2-6
3Ln3 or3LL3 Figure 2-7
4Ln3 or 4LL3 Figure 2-8

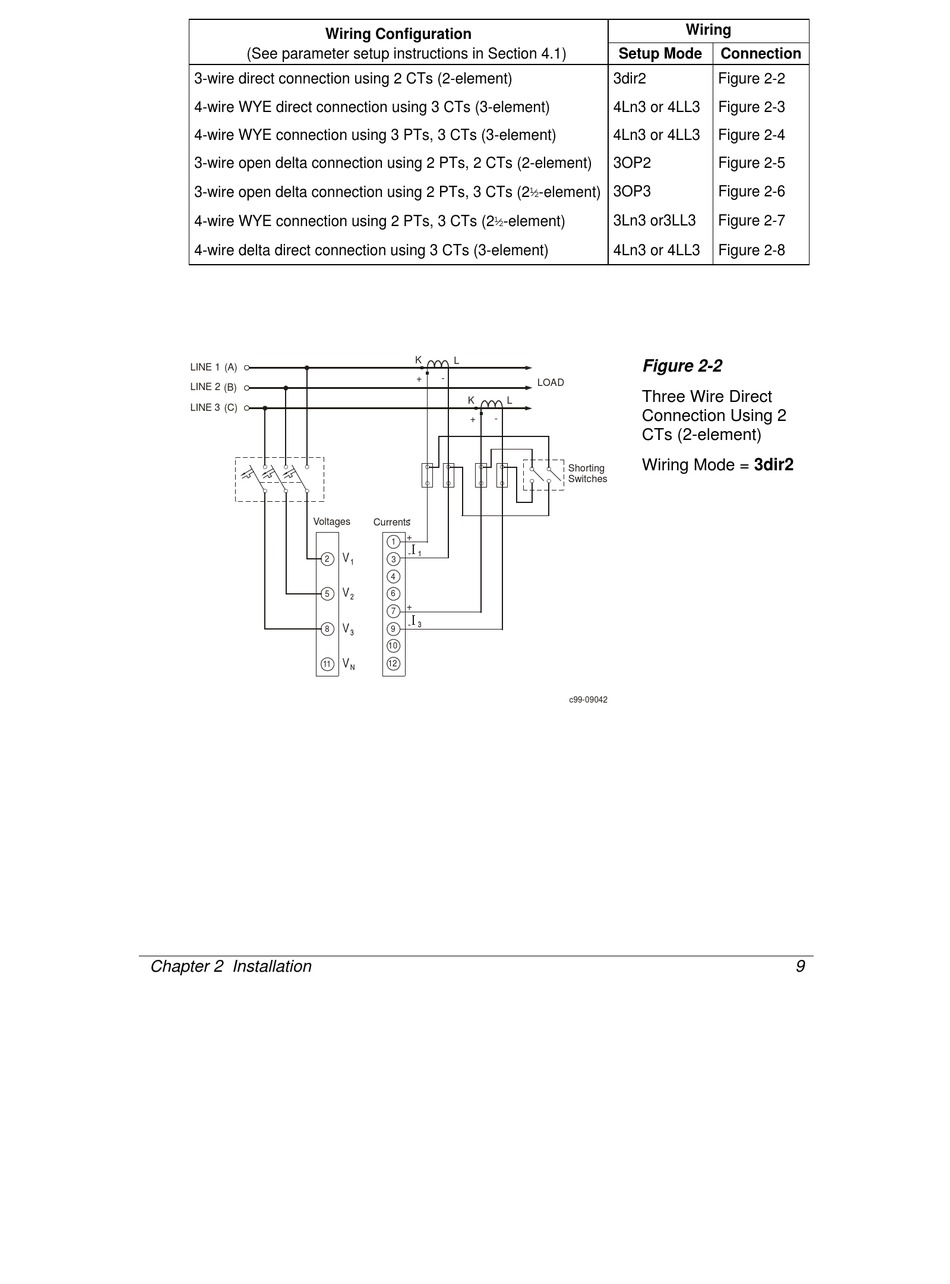

Figure 2-2
Three Wire Direct
Connection Using 2
CTs (2-element)
Wiring Mode = 3dir2
Shorting
Switches
c99-09042
