  • Page 1 Series PM130 Powermeters Installation and Operation Manual BG0306 Rev. A1...
  • Page 2 Series PM130 Powermeters Installation and Operation Manual...
  • Page 3 LIMITED WARRANTY The manufacturer offers the customer an 24-month functional warranty on the instrument for faulty workmanship or parts from date of dispatch from the distributor. In all cases, this warranty is valid for 36 months from the date of production. This warranty is on a return to factory basis. The manufacturer does not accept liability for any damage caused by instrument malfunction.
  • Page 4 To prevent potential fire or shock hazard, do not expose the instrument to rain or moisture. The secondary of an external current transformer must never be allowed to be open circuit when the primary is energized. An open circuit can cause high voltages, possibly resulting in equipment damage, fire and even serious or fatal injury.

  • Page 5: Table Of Contents

    Table of Contents Quick Start.................iv Chapter 1 Introduction ............ 1 About This Manual ..............1 About The PM130 ..............1 Chapter 2 Installation ............6 Mechanical Installation ............6 Electrical Installation............8 Chapter 3 Using The Menus ........... 17 Chapter 4 Setup Menus........... 19 Basic Setup Menu ...............19 Communications Port Setup Menu ........21 Pulsing Output Setup Menu (PM130E) ......22...

  • Page 6: Quick Start

    Quick Start TYPICAL INSTALLATION (see Section 2.2.4 for full instructions) Wiring Mode: 4LL3...
  • Page 7 SETUP (see Chapter 4 for full instructions) All setups can be performed directly on the front panel or via communications using PComTest communication software, except for Communications and Display setups which must be performed directly on the instrument panel. Performing Basic and Communications Setup menu bASc Press...

  • Page 8: Chapter 1 Introduction

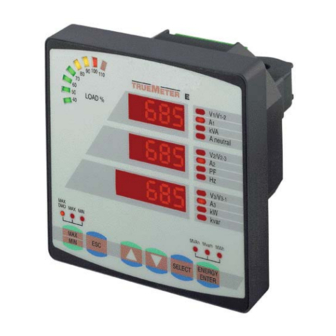

    The PM130 is available in three models: the PM130 for basic voltage, current and frequency measurements; the PM130P which adds power and power factor measurements; and the PM130E which adds power demands and energy measurements. All models are suitable for mounting on both 4-inch round and 92x92mm square cut-outs.
  • Page 9 Automatic return to the main screen is available after 30 seconds of uninterrupted use. Setup is menu driven, with optional password protection. Communications are available using an RS-485 standard, with ASCII/Modbus or ASCII/DNP3.0 protocols. 120 user assignable registers are available. Transmitter and receiver status are displayed on the status information page (see Chapter 6).
  • Page 10 Measured Parameters Note: Real-time values are measured over 1 cycle of fundamental frequency; Average values are of 8, 16 or 32 real-time values Output available in the PM130P/PM130E Parameter Display Comm. Pulse Alarm Average Values: Amps, Volts, $ = setup via PC...
  • Page 11 Output available in the PM130P/PM130E Parameter Display Comm. Pulse Alarm Active Power Maximum Demand Apparent Power Maximum Demand Energy Per Phase Active Energy Import per phase Reactive Energy Import per phase Apparent Energy per phase Total Energy Total Active Energy Import...
  • Page 12 Instrument Dimensions Figure 1-1 PM130 Dimensions Chapter 1 Introduction...

  • Page 13: Chapter 2 Installation

    Chapter 2 Installation 2.1 Mechanical Installation 1- Position Powermeter in cut-out 2- Affix the Powermeter using washers and nuts Figure 2-1 Mounting the PM130 (Square or Round Cut-out) Chapter 2 Installation...

  • Page 15: Electrical Installation

    2.2 Electrical Installation Before installation ensure that all incoming power sources are shut OFF. Failure to observe this practice can result in serious or even fatal injury and damage to equipment. Connections to the PM130 are made via terminals (voltage input, power supply, communication and optional relay output) and CT cores located on the rear of the instrument as shown in Figure 2-3.
  • Page 16 2.2.2 Current Inputs To ensure accurate readings, the input current should not exceed 1.5A RMS for the 1A CT secondary, or 7.5A RMS for the 5A CT secondary. The PM130 does not have current terminals. To connect to the external CT, you must pass the external CT wire through the instrument CT core (see Figure 2-4).
  • Page 17 Figure 2-4 Current Input Connection Chapter 2 Installation...
  • Page 18 2.2.4 Voltage Inputs 690V Inputs (Standard): 690V inputs are usually used with direct connection. Use any of the seven wiring configurations shown in Figures 2-5 through 2-11. 120V Inputs (Option U): 120V inputs usually implies use of a potential transformer (PT). The PT requires use of any of the four wiring configurations shown in Figures 2-7 through 2-10.
  • Page 19 Figure 2-5 Three Wire Direct Connection Using 2 CTs (2-element) Wiring Mode = 3dir2 Figure 2-6 Four Wire WYE Direct Connection Using 3 CTs (3-element) Wiring Mode = 4LL3 or 4Ln3 Chapter 2 Installation...
  • Page 20 Figure 2-7 Four Wire WYE Connection Using 3 PTs, 3 CTs (3- element) Wiring Mode = 4LL3 or 4Ln3 Figure 2-8 Three Wire Open Delta Connection Using 2 PTs, 2 CTs (2-element) Wiring Mode = 3OP2 Chapter 2 Installation...
  • Page 21 Figure 2-9 Three Wire Open Delta Connection Using 2 PTs, 3 CTs (2½-element) Wiring Mode = 3OP3 Figure 2-10 Four Wire Wye Connection Using 2 PTs, 3 CTs (2½-element) Wiring Mode = 3LL3 or 3Ln3 Note This configuration will provide accurate power measurements only if the voltages are balanced.
  • Page 22 Figure 2-11 Four Wire Delta Direct Connection Using 3 CTs (3 element) Wiring Mode = 4LL3 or 4Ln3 2.2.5 Relay One relay (optional) is provided for energy pulsing, alarms or remote control. LOAD 10A FUSE 120V AC c99-07014 Figure 2-12 Relay Connection Chapter 2 Installation...
  • Page 23 2.2.6 Communications A connection to the RS-485 communication port can be made from a distance of up to1200 meters, with up to 32 instruments on one multi-drop line. Figure 2-13 RS-485 Multidrop Computer Connection NOTE: Where an RS-232/RS-485 converter is used on a computer connection, R1 is not applicable since it is built in to the converter.

  • Page 24: Chapter 3 Using The Menus

    Chapter 3 Using The Menus Press to enter the setup mode. The primary menus will SELECT appear: - Status Information Menu (see Chapter 6) - Setup Options Menu - Setup Change Menu (see Chapter 4) SELECT Press again to activate the window of the desired primary menu.
  • Page 25 Alarm status OPtS ALAr Access Control AccS SELECT Selects an active window ENTER Enters menu/sub-menu available in the PM130P Quits menu/sub-menu available in the PM130E Scrolls options forward Scrolls options backward Figure 3-1 Menu Structure Chapter 3 Using the Menus...

  • Page 26: Chapter 4 Setup Menus

    Chapter 4 Setup Menus 4. CHAPTER 3 SETUP MENUS NOTE: Instrument setup can be performed directly on the front panel using the setup menus or via communications using PComTest communication software. PComTest is supplied with your instrument and provides full setup capabilities for your instrument. For information on using PComTest, refer to the user documentation supplied with your instrument.
  • Page 27 Code Parameter Options Description ConF Wiring mode 3OP3 3-wire open delta using 3 CTs (2½ element) 3Ln3 4-wire Wye using 2 PTs (2½ element), line to neutral voltage readings 3LL3 4-wire Wye using 2 PTs (2½ element), line to line voltage readings PT ratio The potential transformer ratio...

  • Page 28: Communications Port Setup Menu

    4.2 Communications Port Setup Menu SELECT Port ENTER ENTER This menu allows you to access the communications port options that the PM130 uses to communicate with a master computer. Table 4-2 lists the communications options, their code names and applicable choices. Activate the middle window to scroll through the list of available options, and then activate the lower window to set the option value.

  • Page 29: Pulsing Output Setup Menu (Pm130E)

    4.3 Pulsing Output Setup Menu (PM130E) PulS SELECT ENTER ENTER This menu allows you to program a relay (optional) provided by your PM130E instrument to output energy pulses. Available pulsing parameters are listed in Table 4-3. To change the pulse relay setup: Press to activate the middle window.

  • Page 30: Alarm/Event Setpoints Setup Menu

    4.4 Alarm/Event Setpoints Setup Menu SEtP SELECT ENTER ENTER Your instrument provides 16 alarm/event setpoints that can monitor a wide variety of events; in turn, these events can be programmed to trigger specific actions. This menu is used to specify the events to be monitored by the setpoints, and actions to be triggered by those events.
  • Page 31 Use the up/down arrow keys to scroll to the desired setup option. The value associated with this option is displayed in the lower window. To change the selected setup option: Press to activate the lower window. SELECT Use the up/down arrow keys to scroll to the desired value. ENTER Press to store the new value.
  • Page 32 Table 4-5 Setpoint Triggers (lower window, when middle window is triG) Code Parameter Unit Range nonE Setpoint disabled Phase Reversal POS.ro. Positive phase rotation reversal NEG.ro. Negative phase rotation reversal Real-time Values on any Phase r. Hi. U High voltage 0 to Vmax r.
  • Page 33 Hi Pd.S High predicted sliding window kVA kVA 0 to Pmax demand available in the PM130P available in the PM130E The parameter limits are as follows: Vmax (690 V input option) = 828 V @ PT Ratio = 1 Vmax (690 V input option) = 144 × PT Ratio [V] @ PT Ratio > 1 Vmax (120 V input option) = 144 ×...

  • Page 34: Relay Operation Control Menu

    4.5 Relay Operation Control Menu rELo SELECT ENTER ENTER This menu allows you to set the relay operation mode: non-failsafe or failsafe. Failsafe relay operation is the opposite of normal operation where relay contacts are closed when a relay is operated (activated), and are open when a relay is released (de- activated).

  • Page 35: Display Setup Menu

    Ph.P powers in common display measurements mode available in the PM130E available in the PM130P To select a display option: SELECT Press to activate the middle window, and then use the up/down arrow keys to scroll to the desired option.

  • Page 36: User Selectable Options Menu

    Using non-active power roLL Energy roll value 10.E4 10,000 10.E5 100,000 10.E6 1,000,000 10.E7 10,000,000 10.E8* 100,000,000 Ph.En Phase energy diS*, En Enables/disables measurements measurements of energies per phase available in the PM130P available in the PM130E Chapter 4 Setup Menus...

  • Page 37: Access Control Menu

    4.8 Access Control Menu SELECT AccS ENTER ENTER This menu can be only accessed via the Setup Change Menu (CHG). It is used in order to: • change the user password • enable or disable password check To view an option setting: SELECT Press to activate the middle window.

  • Page 38: Reset/Synchronization Menu

    4.9 Reset/Synchronization Menu SELECT ENTER ENTER This menu allows you to reset to zero the accumulators and Min/Max registers in your instrument, and also to synchronize the power demand interval in the PM130E. The menu can be only accessed via the Setup Change Menu (CHG). If the reset is disabled from the Basic Setup Menu (see Section 4.1), you will not be able to enter this menu.

  • Page 39: Chapter 5 Data Display

    Chapter 5 Data Display 5.1 Navigating in the Display Mode The front panel has a simple interface that allows you to display numerous measurement parameters in up to 38 display pages. For easier reading, the parameters are divided into three groups, each accessible by a designated key.
  • Page 40 In the Display Mode, the front panel display is updated approximately twice per second; you can adjust the display update rate via the Display Setup Menu (see Section 4.6). Tables 5-1 and 5-2 list all displayed parameters and their LED indicators.

  • Page 41: Data Display Formats

    Fast Reset of Accumulated Data When changing data via the front panel is not secured by a password, you can reset the Min/Max registers, maximum demands and energies from the display mode without entering the reset menu. Select the display page of the data you want to reset. To reset: •...
  • Page 42 Page Window Indicator Digits Unit Parameter Min/Max Measurements V1/V1-2 Min. real-time voltage V/kV L1/L12 V2/V2-3 Min. real-time voltage V/kV L2/L23 V3/V3-1 Min. real-time voltage V/kV L3/L31 V1/V1-2 Max. real-time voltage L1/L12 V/kV V2/V2-3 Max. real-time voltage L2/L23 V/kV V3/V3-1 Max. real-time voltage L3/L31 V/kV MAX DMD Max.
  • Page 43 Table 5-2 Displayed Parameters for the PM130P/PM130E Page Window Indicator Parameter Digits Unit Common Measurements V1/V1-2 Voltage L12 V/kV V2/V2-3 Voltage L23 V/kV V3/V3-1 L. Voltage L31 V/kV V1/V1-2 Voltage L1 V/kV V2/V2-3 Voltage L2 V/kV V3/V3-1 P. Voltage L3...
  • Page 44 Page Window Indicator Parameter Digits Unit Min/Max Measurements V1/V1-2 Min. real-time voltage V/kV L1/L12 V2/V2-3 Min. real-time voltage V/kV L2/L23 V3/V3-1 Min. real-time voltage V/kV L3/L31 Min. real-time current L1 A/kA Min. real-time current L2 A/kA Min. real-time current L3 A/kA Min.
  • Page 45 Page Window Indicator Parameter Digits Unit Max. ampere demand L1 A/kA Max. ampere demand L2 A/kA Max. ampere demand L3 A/kA Max. sliding window kVA kVA/MVA demand Power factor at max. kVA demand Max. sliding window kW kW/MW demand Total Energies Ac.En.

  • Page 46: Self-Test Diagnostics Display

    Page Window Indicator Parameter Digits Unit MVAh AP.En. Label Label MVAh L2 MVAh Ac.En. Label IP.L3 Label MWh import L3 Mvarh rE.En. Label IP.L3 Label Mvarh import L3 Mvarh MVAh AP.En. Label Label MVAh L3 MVAh available in the PM130E Display readings for all electrical quantities except Min/Max log and energies are sliding average values.
  • Page 47 Frequent failures may be the result of excessive electrical noise in the region of the instrument. If the instrument continuously resets itself, contact your local distributor. Table 5-3 Self-Test Diagnostic Codes Code Meaning ROM error RAM error Watch dog timer reset Sampling failure Out of control trap Timing failure...

  • Page 48: Chapter 6 Viewing Status Information

    Chapter 6 Viewing Status Information Through the Status Information Menu (STA), it is possible to view the status of various instrument features. 6.1 The Status Information Menu SELECT ENTER To enter the Status Information Menu: From the display mode, press to enter the Primary SELECT Selection Menu.

  • Page 49: Status Display Formats

    Table 6-1 lists all the displays available from the Status Information Menu. The display windows are labeled in the table as follows: 1 = upper window, 2 = middle window, 3 = lower window. available in the PM130P available in the PM130E Table 6-1 Status Information...

  • Page 50: Appendix: Technical Specifications

    Appendix: Technical Specifications 7. ions Input and Output Ratings 3 voltage 690 V: DIRECT INPUT - Nominal: 690V line-to-line inputs (standard) voltage, 790V maximum; 400V line-to-neutral, 460V maximum - Burden: <0.5 VA INPUT USING PT - Burden: <0.15 VA 120 V: INPUT USING PT - Nominal: 120V line-to-line (optional) voltage, 144V maximum - Burden: <0.1 VA...
  • Page 51 Construction Instrument Case enclosure: flame resistant ABS & Polycarbonate blend body Dimensions: 114.3 114.3 109 mm ( 4.5 x 4.5 x 4.29 “) Mounting: 4-inch round or 92x92mm square cut-out Instrument 0.70 kg (1.54 lb.) weight Standards Compliance UL File # E129258 CE-EMC: 89/336/EEC as amended by 92/31/EEC and 93/68/EEC CE-LVD: 72/23/EEC as amended by 93/68/EEC and 93/465/EEC Harmonized standards to which conformity is declared:...
  • Page 52 Measurement Specifications Accuracy, % Range Display resolution (%Rdg) Parameter Full scale FS Conditions @ range × Voltage 10% to 120% FS 0 to 999,000 V 1 V @ 1V to 9,999 V 120V For Ln reading ≤0.1% @ 10,000 V to 999,000 V @ 120V and for Starting voltage 1.5% FS...
  • Page 53 Accuracy, % Range Display resolution (%Rdg) Parameter Full scale FS Conditions @ range CT PRIMARY CURRENT 2% to 150% FS 0 to 60,000 A 1 A @ 1A to 9,999 A Neutral (unbalanced) ≤0.1% @ 10,000 A to 60,000 A current Ampere demand same as for current...
  • Page 54 Key: PT = external potential transformer ratio CT, CT Primary Current = primary current rating of external current transformer FSU = voltage full scale FSI = current full scale @ 10% to 120% of voltage FS and 2% to 150% of current FS Higher resolution is achievable via communications Where the current is >...
  • Page 55 Index accuracy, 47 Modbus, ii, v, 16, 21 active energy, 46 mounting, 1, 6 active power, 45 open delta, v, 11, 19, 20 ampere demand, v, 20, 25, 35, overload withstand, 43 password, 17, 30, 31, 34, 42 analog outputs, 20 PComTest, v, 19 basic setup, 19 power, i, v, 1, 8, 20, 27, 29, 33,...
