Cable entry position

3.3 Cable entry position
3.3.1 Design MMF1.
3.3.2 Design MMF3.
16
Operating Instructions – MOVIMOT
The following cables entries are possible for the device:
• Position X + 2 + 3
– X: 2 × M25 × 1.5 + 2 × M16 × 1.5
– 2: 2 × M25 × 1.5 + 2 × M16 × 1.5
– 3: 3 × M25 × 1.5 + 3 × M16 × 1.5

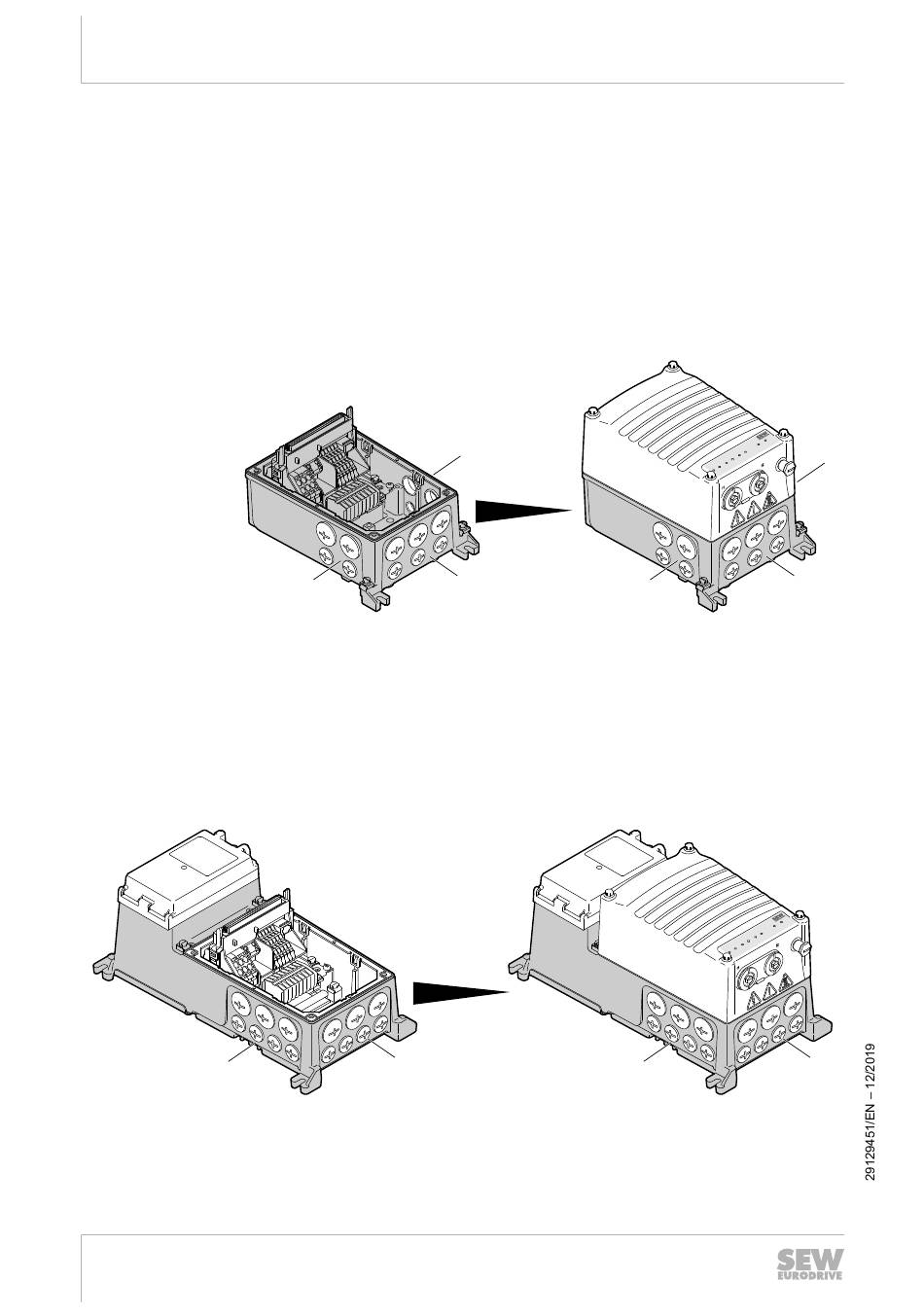

The following figure shows the possible cable entries:
X
The following cables entries are possible for the device:
• Position X + 3
– X: 3 × M25 × 1.5 + 4 × M16 × 1.5
– 3: 3 × M25 × 1.5 + 4 × M16 × 1.5
The following figure shows the possible cable entries:
X
®
flexible
2
3
3
3
X
29317789707
X
29317793547
2
3
