Electrical installation
5
Assignment of the optional plug connectors
5.11.8 X2041: Inverter output for connecting motors without digital interface
114
Operating Instructions – MOVIMOT
The following table shows information about this connection:
Function
Inverter output for connecting motors without digital interface
Connection type
M23, female, union nut with female thread, TE Connectivity - Intercontec Products,
series 723, SEW insert, SpeedTec equipment, coding ring: brown, protected against
contact

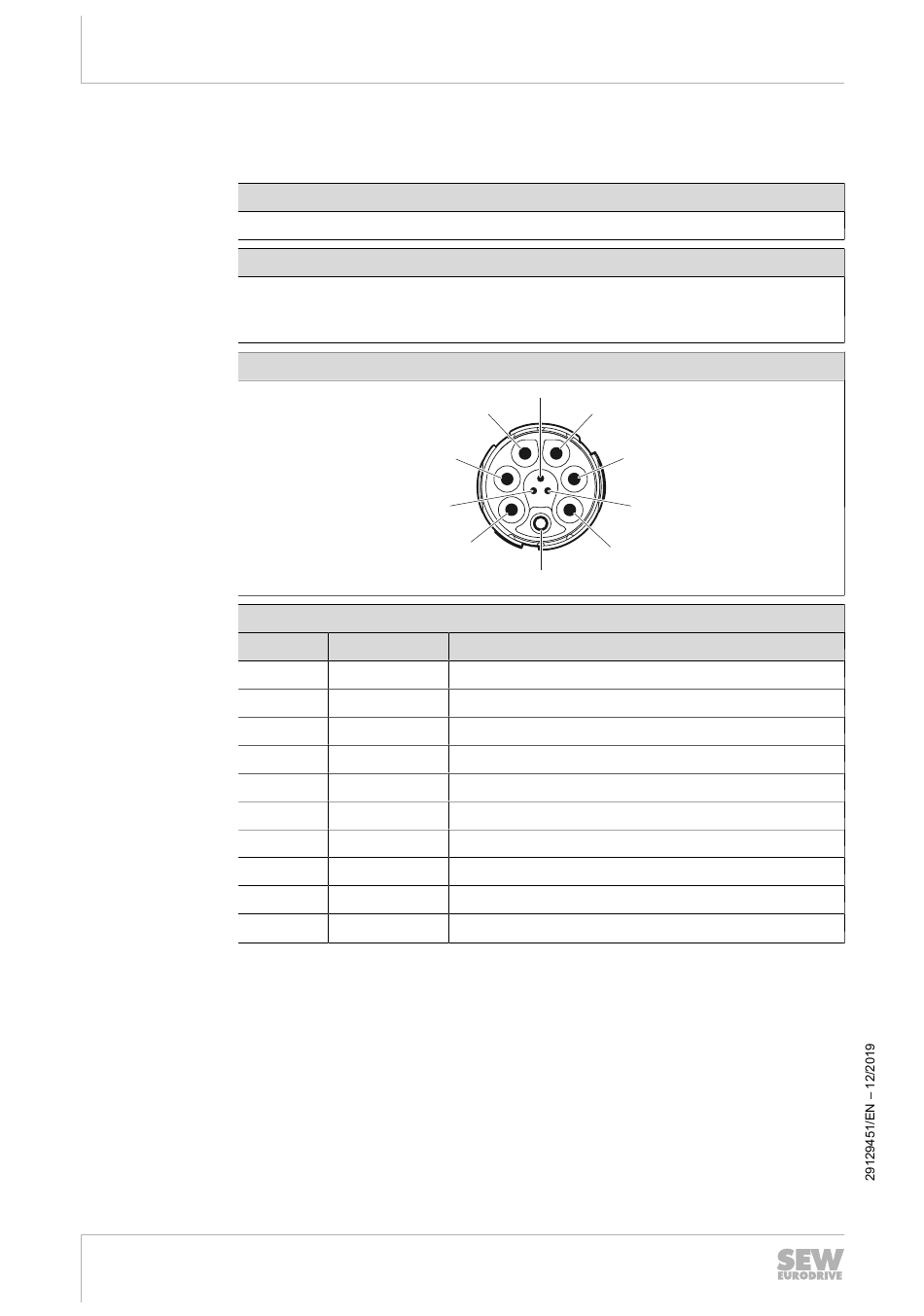

Connection diagram
Assignment
Contact Signal
A U
B V
C W
D 13
E 14
F 15
PE PE
1 Temp+
2 Res.
3 Temp-
®
flexible
2
D C
E
3
F
PE
Description
Motor connection, phase U
Motor connection, phase V
Motor connection, phase W
Brake connection 13
Brake connection 14
Brake connection 15
PE connection
Connection temperature sensor+
Reserved
Connection temperature sensor -
B
1
A
