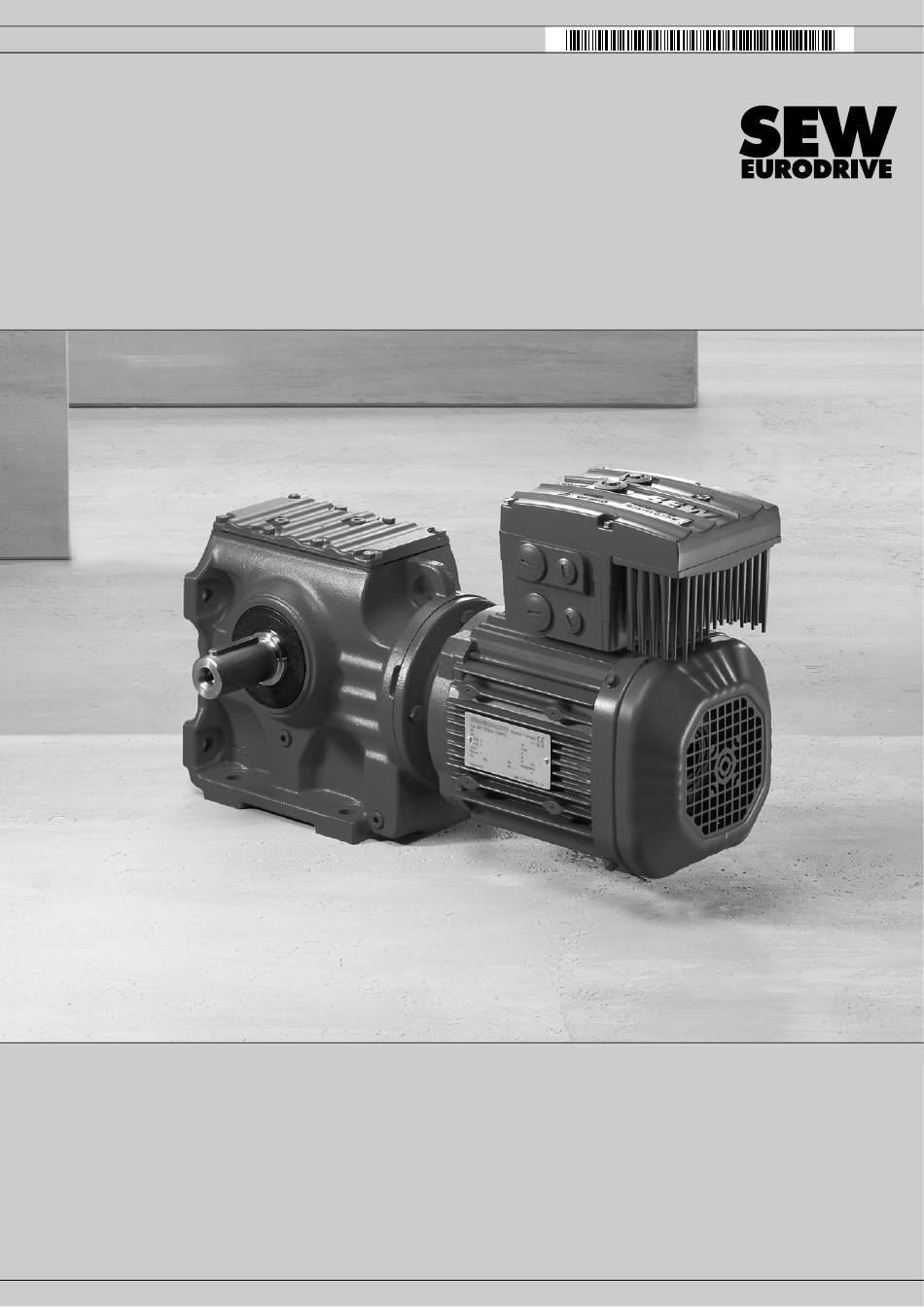

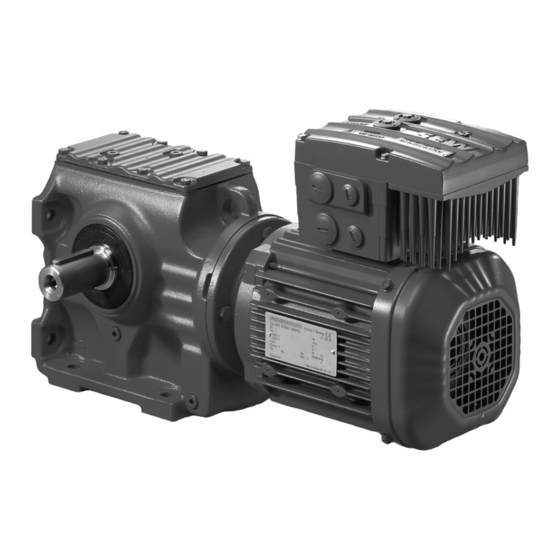

- Page 1 Drive Technology \ Drive Automation \ System Integration \ Services Addendum to the Operating Instructions ® MOVIMOT with AS-Interface and AC Motor DT/DV ® Unit Replacement MOVIMOT MM..C -> MM..D with MLK30A Option Edition 10/2013 19481616 / EN...
- Page 2 SEW-EURODRIVE—Driving the world...
-
Page 3: Table Of Contents
Contents Contents General information .................... 4 Structure of the safety notes ............... 4 Rights to claim under warranty ..............5 Exclusion of liability..................5 Copyright..................... 5 Product names and trademarks ..............5 Other applicable documentation ..............5 Determining the required retrofit set ............6 Mechanical installation.................. -
Page 4: General Information
General information Structure of the safety notes General information MOVIMOT® with AS-Interface and AC Motor DT/DV – Unit Replacement MOVIMOT® MM..C -> MM..D Structure of the safety notes 1.1.1 Meaning of signal words The following table shows the graduation and meaning of the signal words for safety notes, warnings regarding potential risks of damage to property, and other notes. -
Page 5: Rights To Claim Under Warranty
You must comply with the information contained in this documentation to ensure safe operation and to achieve the specified product characteristics and performance fea- tures. SEW-EURODRIVE assumes no liability for injury to persons or damage to equip- ment or property resulting from non-observance of these operating instructions. In such cases, any liability for defects is excluded. -
Page 6: Determining The Required Retrofit Set
The following illustration shows an example of how to determine the type designation of the required retrofit set based on the nameplate data of the current motor: SEW -EURODRIVE Bruchsal / Germany SEW-EURODRIVE KA77DT90L4/BMG/MM15/RJ1A/AND3/AZSK IEC 34 3009818304. 0001. 99 0,99... -
Page 7: Mechanical Installation
Mechanical installation Scope of delivery of the retrofit set Mechanical installation Scope of delivery of the retrofit set ® Check whether the MOVIMOT MM..D retrofit set was delivered complete using the fol- lowing figure. 5816848651 [A] Connection box [B] Connection board with 1 or several connected plug connectors [C] Connection cable ®... -
Page 8: Disassembly Movimot ® Mm
Mechanical installation ® Disassembly MOVIMOT MM..C ® Disassembly MOVIMOT MM..C WARNING Electric shock caused by dangerous voltages in the connection box. Severe or fatal injuries. • De-energize the drive using a suitable cut-off device before removing the ® MOVIMOT inverter. ®... - Page 9 Mechanical installation ® Disassembly MOVIMOT MM..C 4. Only for motors without a brake: Unscrew the BW braking resistor from the connection box. The braking resistor and the screws will be re-installed. 5688325643 5. Unscrew the connection board unit from the connection box.
-
Page 10: Assembly
Mechanical installation Assembly 7. Clean the sealing surface [1]. A new gasket is already installed in the new connection box. Do not use the used gasket. 5689351051 Assembly ® Assemble the MOVIMOT MM..D inverter and the connection box as follows: 1. - Page 11 Mechanical installation Assembly 3. Plug the connection cables [C] onto the bolts of the terminal board as shown in the wiring diagram. Fasten the connec- tion cables with the already installed nuts. (tightening torque 1.6 – 2.0 Nm / 14 – 18 lb.in) 4.
- Page 12 Mechanical installation Assembly 7. Only for motors without a brake: Install the BW.. braking resistor in the terminal box using 2 screws. (tightening torque 1.4 – 1.6 Nm / 12 – 14 lb.in) BW1 / BW2 Connect the BW.. braking resistor to terminals X1:13 and X1:15.
-
Page 13: Startup
Startup Important notes on startup Startup Important notes on startup INFORMATION You must comply with the general safety notes in chapter "Safety Notes" during startup. WARNING Risk of crushing due to missing or defective protective covers. Severe or fatal injuries. •... -
Page 14: Control Element Settings
Startup Control element settings Control element settings INFORMATION The setpoint potentiometer f1 and the switch f2 are at the same position at the new ® ® MOVIMOT MM..D inverter as in the replaced MOVIMOT MM..C inverter. 3.2.1 Setpoint potentiometer f1 Use the f1 potentiometer to adjust setpoint f1. - Page 15 Startup Control element settings 3.2.4 Setting the DIP switches ® Write down the DIP switch settings of the current MOVIMOT MM..C inverter into the following fields (ON or OFF): 1 2 3 4 5 6 1 2 3 4 5 6 ®...
- Page 16 Startup Control element settings DIP switch S1: Meaning Binary coding Motor pro- Motor power PWM fre- No-load RS-485 unit tection rating quency damping address Motor one Variable (16, stage smaller 8, 4 kHz) Motor 4 kHz adjusted DIP switch S2: Meaning Brake type Brake...
- Page 17 Startup Control element settings 3.2.5 Setting the 24 V supply via switch S5 The switch S5 [1] is located on the connection board. Size 1 Size 2 9007200446045707 [1] Switch S5 Use switch S5 to set the type of 24 V supply. Switch 24 V voltage supply ®...
-
Page 18: Starting Up The Movimot ® Drive With As-Interface
Startup ® Starting up the MOVIMOT drive with AS-Interface ® Starting up the MOVIMOT drive with AS-Interface WARNING Electric shock caused by dangerous voltages in the connection box. Severe or fatal injuries. • De-energize the drive using a suitable cut-off device before removing the ®... - Page 19 Startup ® Starting up the MOVIMOT drive with AS-Interface 3.3.1 Assigning the slave address ® MOVIMOT drives with MLK3.A AS-Interface option are set to address 0 by default. You have the following options for assigning the AS-Interface address of the ®...
- Page 20 Startup ® Starting up the MOVIMOT drive with AS-Interface Example: Disconnect the AS-Interface nodes from the AS-Interface network one at a time and assign addresses via the hand-held programming device (A). Then reconnect the respective AS-Interface node to the AS-Interface network (B). MOVIMOT 1127669899 [1] AS-Interface hand-held programming device...
- Page 21 Startup ® Starting up the MOVIMOT drive with AS-Interface ® 3.3.3 Data AS-Interface master → MOVIMOT The following table shows the 4 data bits that the AS-Interface master sends to the ® MOVIMOT inverter via the AS-Interface: AS-Interface Function (page 22) CW rotation / stop CCW rotation / stop Speed f2 / speed f1...
- Page 22 Startup ® Starting up the MOVIMOT drive with AS-Interface 3.3.5 Setpoint scaling via parameter bits The following table lists the parameter bits for setpoint scaling. The setpoint scaling does only affect setpoint f1 that can be set externally. Setpoint f2 and the minimum frequency are not affected by the scaling. The following table lists the possible setpoint frequencies for setpoint potentiometer f1 = 100 Hz (3000 rpm) and f1 = 50 Hz (1500 rpm): Parameter bits...
- Page 24 SEW-EURODRIVE—Driving the world SEW-EURODRIVE Driving the world SEW-EURODRIVE GmbH & Co KG P.O. Box 3023 76642 BRUCHSAL GERMANY Phone +49 7251 75-0 Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com...
