Other connections
Design MMF1.

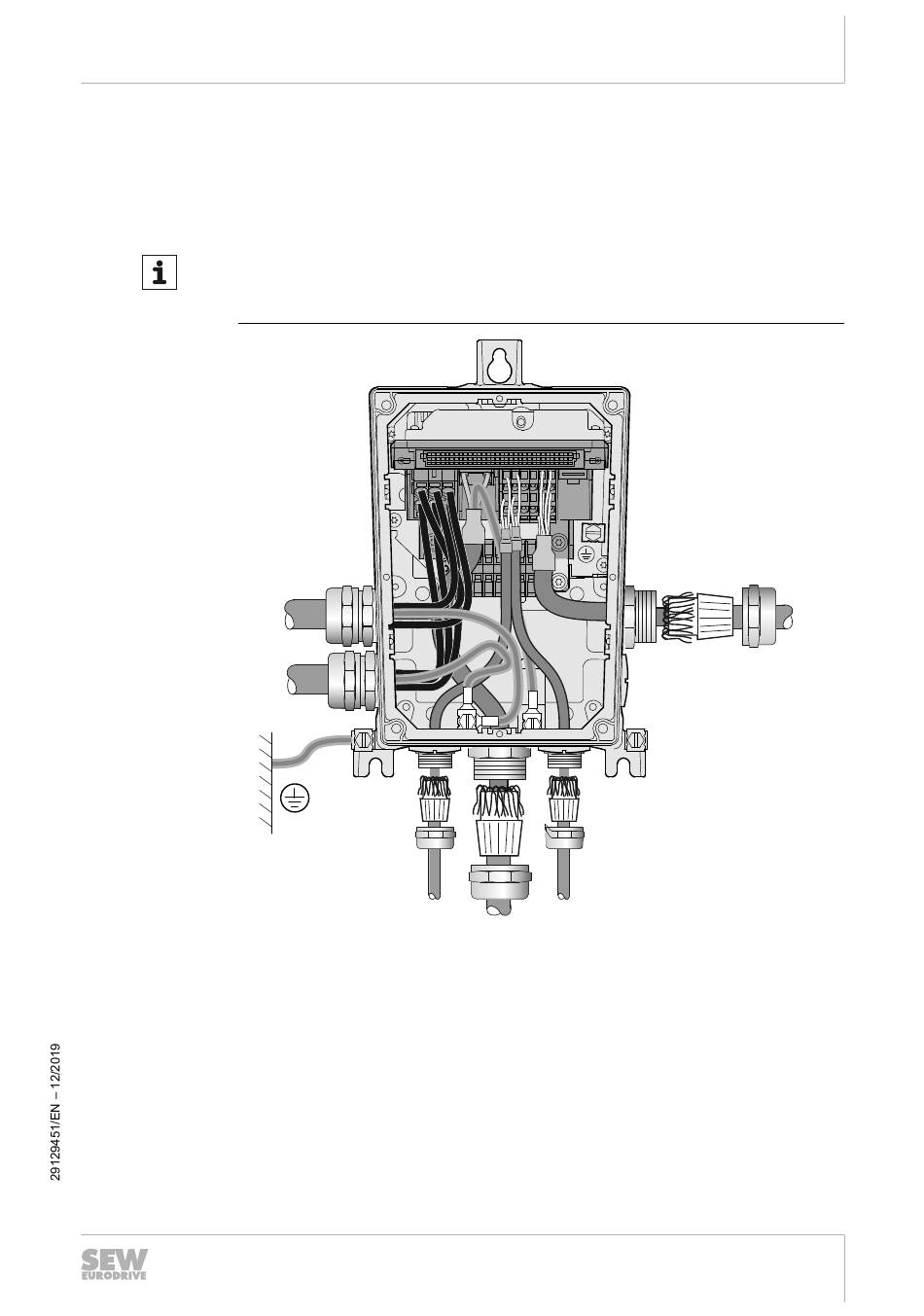

The following figure shows the connections of the device without motor connection:
INFORMATION
Motor connection is shown in another figure, see chapter "Cable routing and cable
shielding" > "Installation with separately routed Ethernet cable" > "Motor connec-
tion...".
Supply system
Supply system
D C B A1 T2 U V W
STO STO
BR
Operating Instructions – MOVIMOT
Electrical installation
Cable routing and cable shielding
30720281227
5
Binary
71
®
flexible
