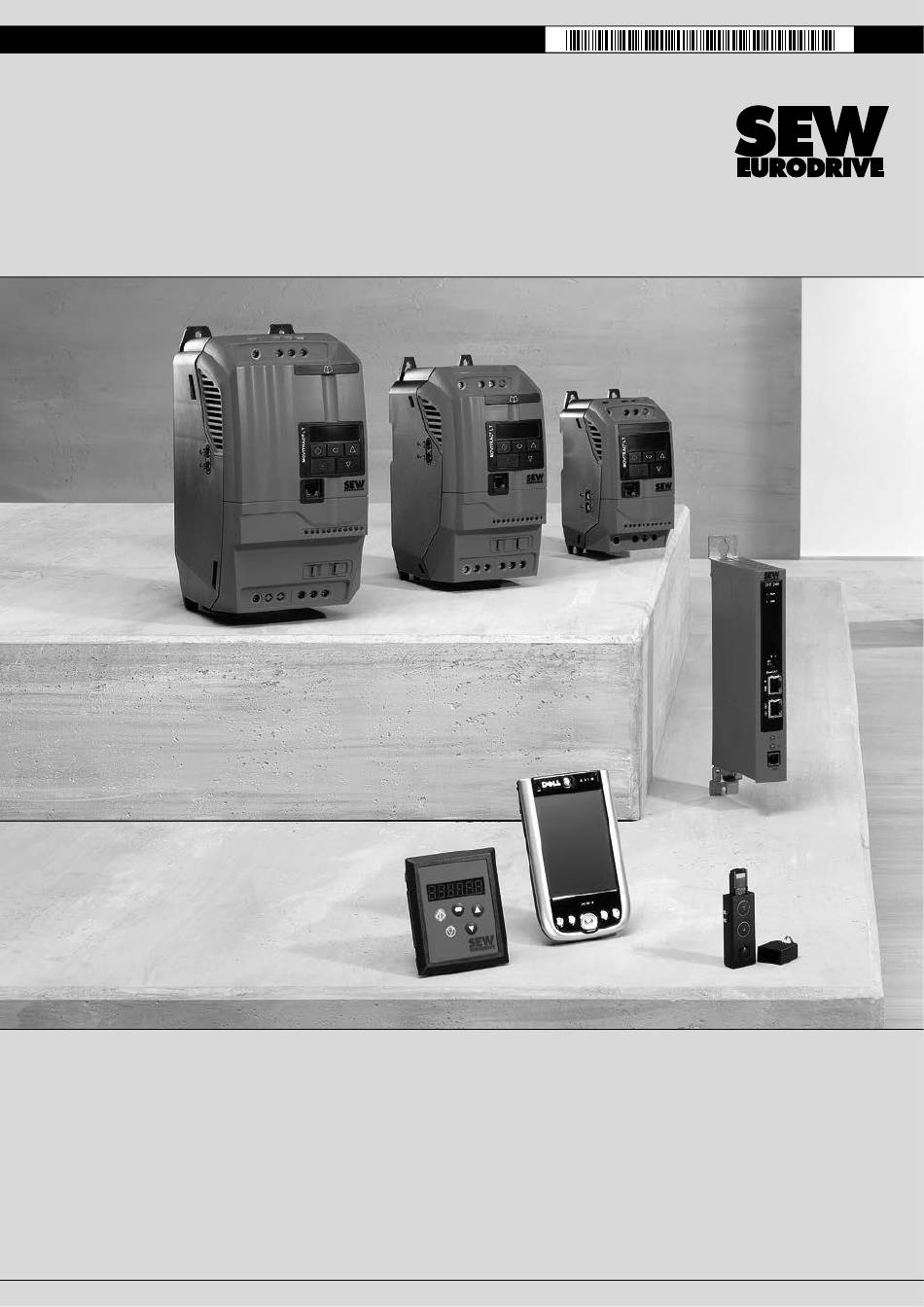

  • Page 1 Drive Technology \ Drive Automation \ System Integration \ Services ® MOVITRAC LTE-B Communications Options Operating Instructions Edition 04/2008 16643615 / EN...
  • Page 2 SEW-EURODRIVE – Driving the world Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
  • Page 3: Table Of Contents

    1 Important Notes....................4 Structure of the safety notes ..............4 Application environment................5 Waste disposal..................5 2 Safety Notes ...................... 6 Installation and startup ................6 Operation and servicing ................6 3 Parameter Module ..................... 7 Installation and Operation using a Windows PDA or Smartphone.... 8 4 Remote Keypad ....................
  • Page 4: Important Notes

    Important Notes Structure of the safety notes Important Notes Operating Instructions Structure of the safety notes The safety notes in these operating instructions are structured as follows: Symbol SIGNAL WORD Nature and source of hazard. Possible consequence(s) if disregarded. • Measure(s) to avoid the hazard.
  • Page 5: Application Environment

    Important Notes Application environment Application environment The following applications are forbidden unless measures are expressly taken to make them possible: • Use in potentially explosive atmospheres • Use in environments with harmful substances: – Oils – Acids – Gases – Vapors –...
  • Page 6: Safety Notes

    Safety Notes Installation and startup Safety Notes Installation and startup • Never install or start up damaged products. In the event of damage please submit a complaint to the transport company immediately. • Installation, startup and service work on the unit can only be carried out by trained personnel.
  • Page 7: Parameter Module

    Parameter Module Operation and servicing Parameter Module Type Part number LTBP-B 1821 8199 11932AXX • Functionality – Storing data from the inverter in the parameter module – Loading data back from the parameter module into the inverter – Providing an infrared interface for communication between Windows PDA / ®...
  • Page 8: Installation And Operation Using A Windows Pda Or Smartphone

    Parameter Module Installation and Operation using a Windows PDA or Smartphone Installation and Operation using a Windows PDA or Smartphone • Download the appropriate LT-Shell software from the SEW-EURODRIVE Website. • Insert the parameter module into the drive. • Align the infra-red connectivity from the parameter module with your Windows PDA or Smartphone.
  • Page 9: Remote Keypad

    Remote Keypad Safety notes Remote Keypad Type Part number LT BG-B 1821 8202 60201AXX ® The remote keypad is designed to control the operation of the MOVITRAC LTE-B units. Safety notes ® The level of integrity offered by the remote keypad / MOVITRAC LTE-B control func- tions, for example stop / start, forward / reverse and maximum speed, is not sufficient for use in safety-critical applications without independent means of protection.
  • Page 10: Electromagnetic Compatibility (Emc)

    Remote Keypad Electromagnetic compatibility (EMC) Electromagnetic compatibility (EMC) ® MOVITRAC LTE-B is designed to high standards of EMC. EMC data is provided in a separate EMC Data Sheet, available on request. Under extreme conditions, the product might cause or suffer disturbance due to electromagnetic interaction with other equip- ment.
  • Page 11 Remote Keypad Mechanical installation 4.5.1 Installation in switch cabinet or control panel To install the remote keypad in the door of a switch cabinet or in a control panel the metal work has to be cut according to the drawing below. By using the included self-adhesive seal the installed keypad meets the IP54 / NEMA 13 standard.
  • Page 12: Electrical Installation

    Remote Keypad Electrical installation Electrical installation 4.6.1 Electrical interface The remote keypad uses a standard RJ45 8-way connector as its electrical interface, which provides a simple solution for the user to set their system up using a standard RJ45 8-way data cable. The signal layout of the connector is as follows: 62701AXX Not connected...
  • Page 13: System Setup

    Remote Keypad System setup 4.6.2 Cable requirements Standard 8-way data cables with plugs are available from SEW-EURODRIVE on request → page 19. If you are fabricating the cables yourself, ensure that the connection pin out is 1 to 1. 20762AXX STOP! Incorrect cable connection may damage the drive.
  • Page 14: User Interface

    Remote Keypad User interface User interface The remote keypad user interface allows drive operation and setup without any addition- al equipment. 63393AXX Display Navigate Start Stop / Reset Down The keypad consists of 5 buttons with the following functions: Start / Run •...
  • Page 15: Real-Time Operation

    Remote Keypad Real-time operation Real-time operation Once the communication has been set up between the drive and the remote keypad, the ® user can control the MOVITRAC LTE-B by using the control buttons on the front panel of the remote keypad. 4.9.1 Display messages The remote keypad uses various display messages to indicate different working states:...
  • Page 16: Easy Startup

    Remote Keypad Easy startup 4.10 Easy startup 4.10.1 Communication address setup By default, the remote keypad will try to communicate with the drive in address 1 in the network after powering up for the first time. The remote keypad will display "SCAN.." after power up, which indicates that it is searching the drive with the correct drive address in the network.
  • Page 17 Remote Keypad Easy startup 4.10.3 Vary speed in real-time remote keypad mode • Press the START button. The drive will ramp up to the preset speed set in the digital potentiometer (assuming P-31 = 1). • To increase speed, press the UP button. The drive will run forward, increasing speed until the UP button is released.
  • Page 18: Service And Fault Codes

    Remote Keypad Service and fault codes 4.11 Service and fault codes 4.11.1 Troubleshooting Symptom Cause and Solution 'Adr-XX' displayed after 'SCAN..' message • The remote keypad failed to find the drive with the specified address in the net- work. • Check that the RJ45 data cable connection is correct.
  • Page 19: Prefabricated Cables

    Prefabricated Cables Prefabricated cables with RJ45 connectors on both ends Prefabricated Cables Prefabricated cables with RJ45 connectors on both ends The prefabricated cables are available in 3 different lengths. Each cable is equipped with an 8-pin RJ45 connector on each end. 11949AXX Cable length Type...
  • Page 20: Cable Splitter: 1 In And 2 Out

    Cable Splitter: 1 in and 2 out Prefabricated cables with RJ45 connector on one end Cable Splitter: 1 in and 2 out Type Part number LT-RJ-CS-21-B 1821 8253 63457AXX The RJ45 data cable splitter is required when the RJ45 communications port from a ®...
  • Page 21: Communication Interface

    Cable Splitter: 1 in and 2 out Communication interface Communication interface 62701AXX No connection No connection +24 V RS-485+ / internal bus RS-485– / internal bus SBus+ SBus– 1) The bit format is fixed as: 1 start bit, 8 data bits, 1 stop bit, no parity 2) P-12 must be set to 3 or 4 for SBus communication Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com Operating Instructions –...
  • Page 22: Sbus Terminating Connector

    SBus Terminating Connector Communication interface SBus Terminating Connector Type Part number LT-CS-TR-B 1821 8261 63456AXX ® The SBus terminating connector is required if MOVITRAC LTE-B is used in conjunction ® ® with MOVI-PLC or the SEW Gateway DFx. In this case the last MOVITRAC LTE-B in the network must be connected via this terminating connector.
  • Page 23: Fieldbus Connection

    Fieldbus Connection Fieldbus gateways Fieldbus Connection Fieldbus gateways The fieldbus gateways convert standard fieldbuses into the SEW SBus. This means that up to 8 inverters can be triggered using one gateway. ® The controller (PLC or PC) and the MOVITRAC LTE-B frequency inverter exchange process data, such as a control word or speed, using the fieldbus.
  • Page 24: Index

    Index Index Application environment........5 Remote keypad ..........9 Cable requirements ......... 13 Conformity ..........9 Easy startup..........16 Cable splitter ..........20 Electrical installation ........ 12 Cables with RJ45 connectors......19 Electromagnetic Compatibility (EMC) ..10 Connection via Fieldbus......... 23 Fault codes ..........
