7-8 Returning Spring Replacement

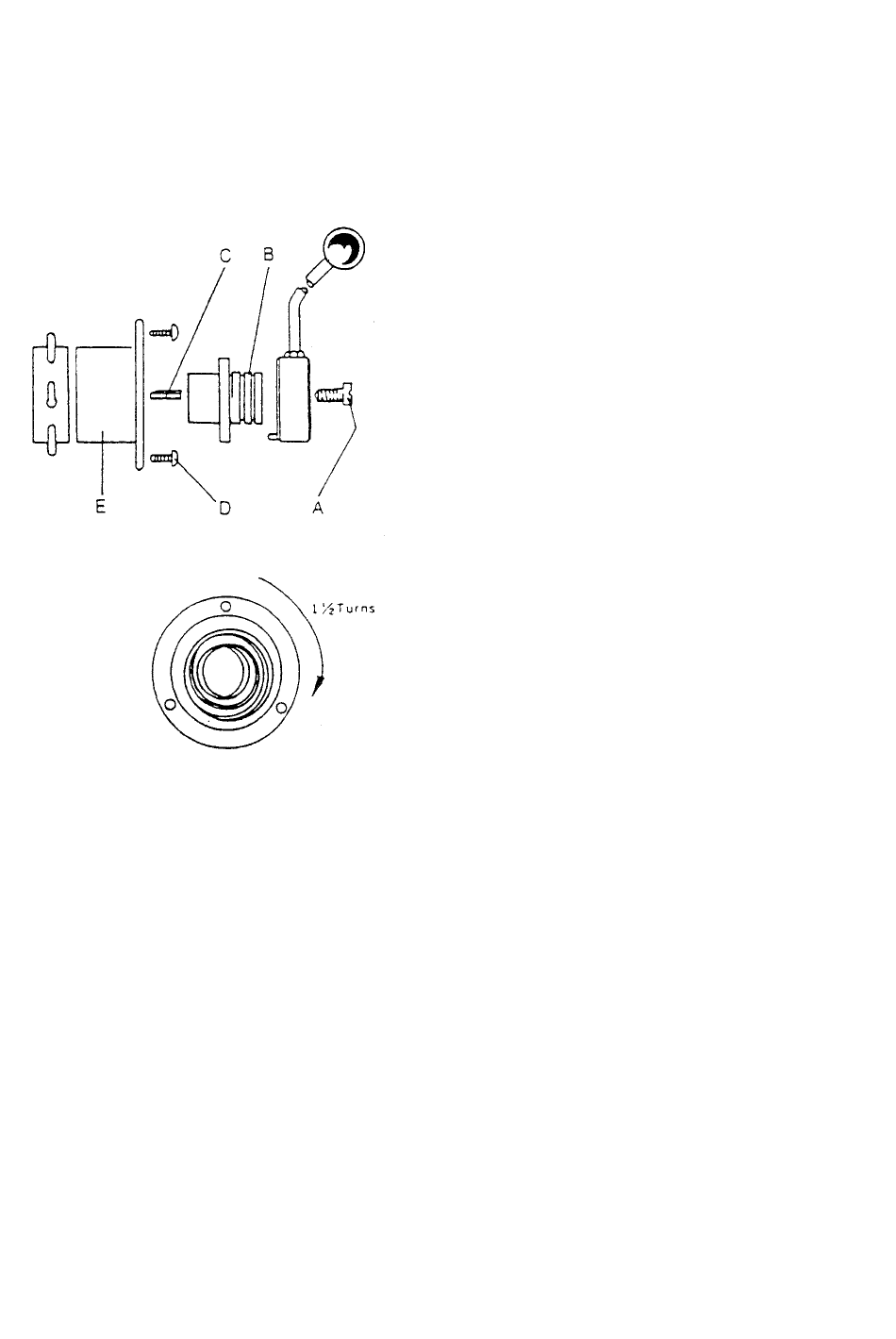

Move quill to top p osition and apply quill lock, remove screw (A), hub (B) and key
(C) and screws (D), allowing housing to rotate slowly releasing spring tension. Lift
end of spring from peg on the pinion shaft. Rotate Housing (E) counter -clockwise
from head casting, remov e spring from housing.
Refit spring to main housing
casting turning housing clockwise until spring locates on peg in the pinion shaft.
Clock Spring Replacement
- 107 -
