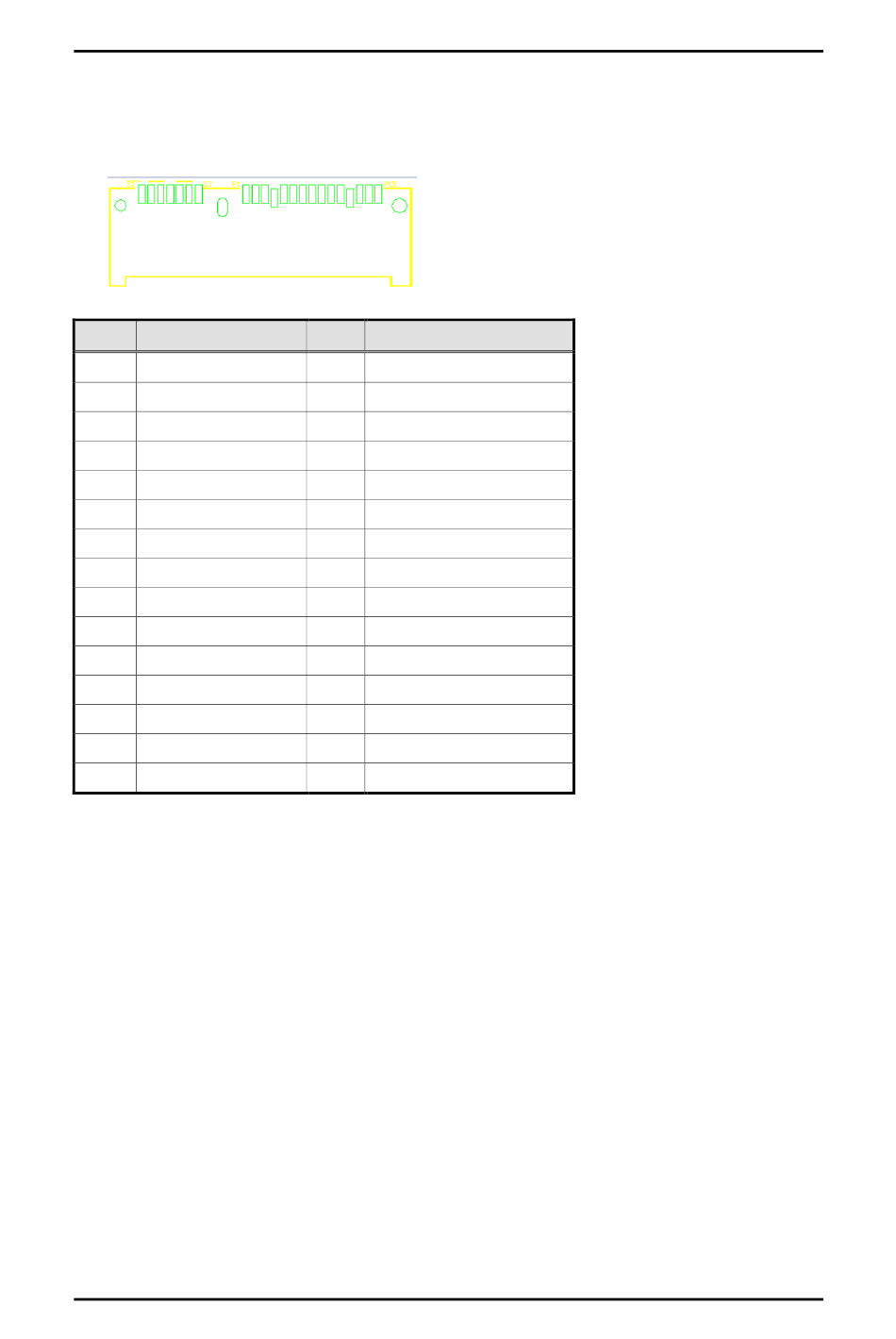

3.3.10 SATA/SATA Power connector (SATA 1)

SATA1 connector supports one 2.5" HDD/SSD.
S1 S7 P1
Pins Signals
S1 GND
S2 SATA0_TX+
S3 SATA0_TX-
S4 GND
S5 SATA0_RX-
S6 SATA0_RX+
S7 GND
Jumper & Connector Settings
P15
Pins Signals
P1 +3.3V
P2 +3.3V
P3 +3.3V
P4 GND
P5 GND
P6 GND
P7 +5V
P8 +5V
P9 +5V
P10 GND
P11 GND
P12 GND
P13 NC
P14 NC
P15 NC
