eBOX100-312-FL Series user's Manual
3.3.1

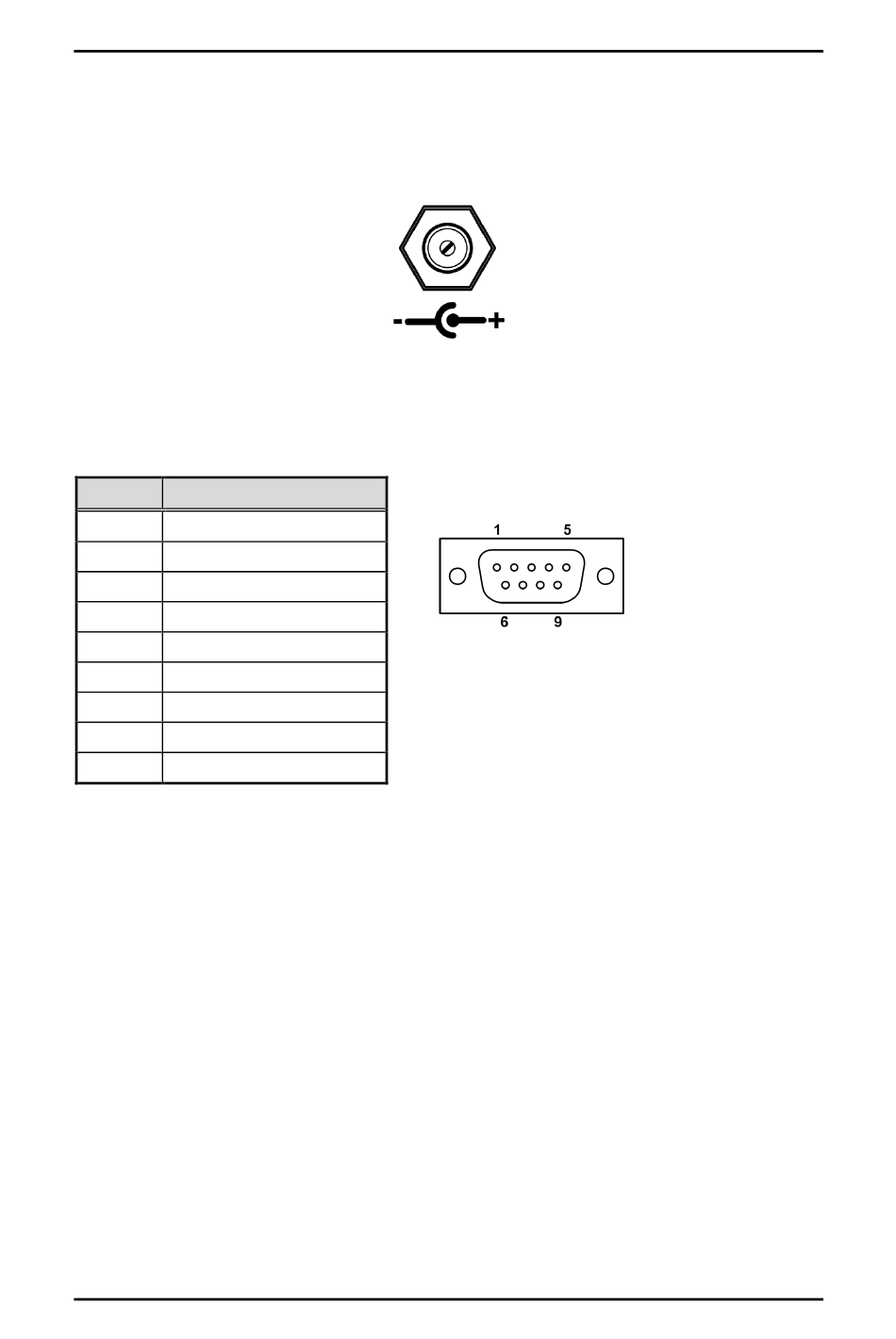

DC Power Jack Connector (screw type)
The system supports 12V DC-in connector for system power input. The CN12 is a DC jack
with screw. Firmly insert at least 36W adapter into this connector. Loose connection may
cause system instability and make sure all components/devices are properly installed before
connecting
3.3.2
Serial Port Connector (COM 1)
The system has one serial port. COM 1 is RS-232 port.
Pins
Signals
1
DCD
2
3
4
5
GND
6
7
8
9
22
RXD
TXD
DTR
DSR
RTS
CTS
RI
Jumper & Connector Settings
