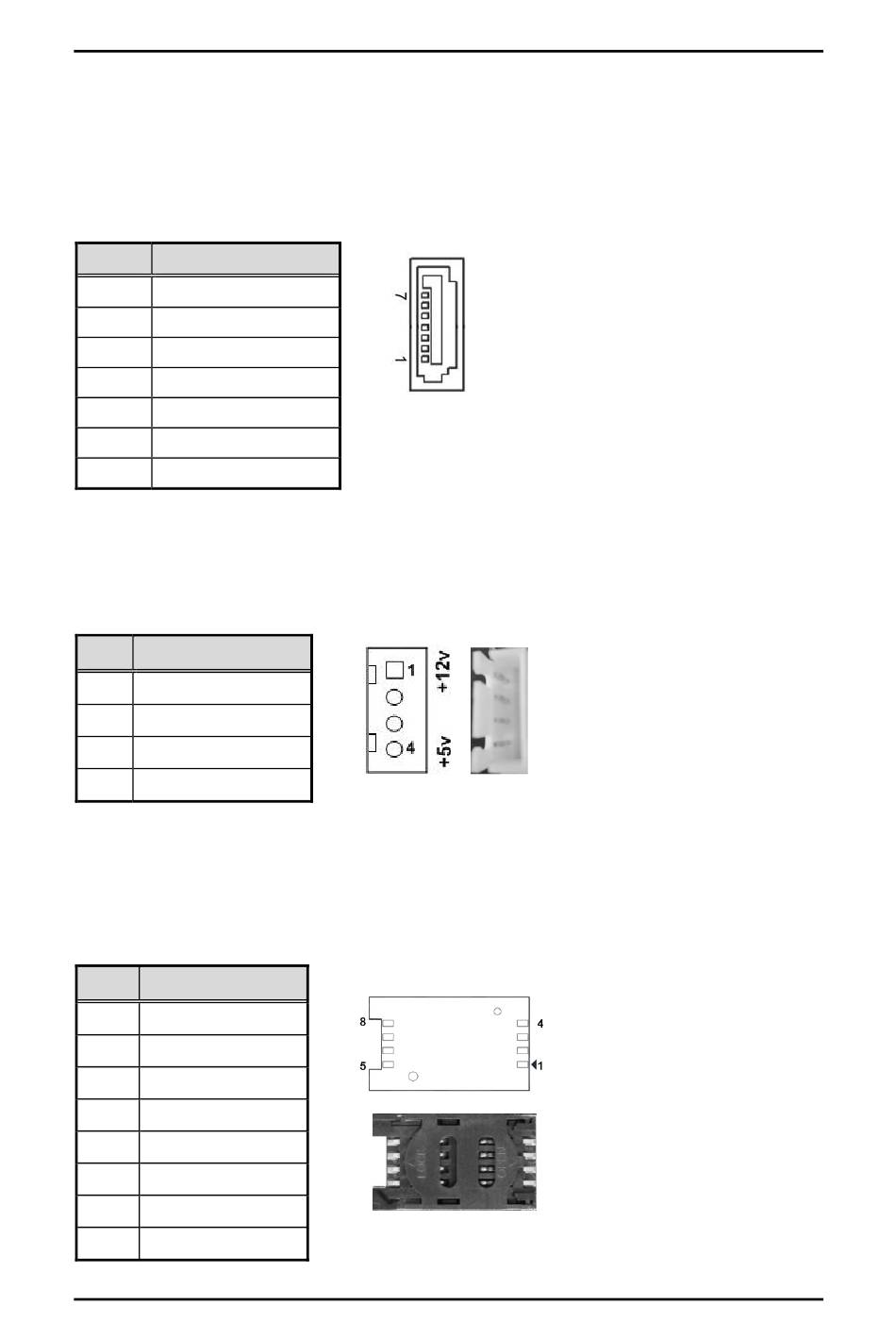

3.3.17 SATA Connector (SATA 1 & 2)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such
as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND

3.3.18 SATA Power Connector

Use CN8、CN9 for interfacing to SATA 2.5" HDD power supply.
Pin Signal
1 +12V level
2 GND
3 GND
4 +5V level

3.3.19 SIM Card Slots

eBOX671-885-FL includes one SIM slots (SCN4) on the bottom side of the system for
inserting SIM Card. It is mainly used in 3G /LTE wireless network application on
SCN3.
Pin Signal
1 PW R
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
