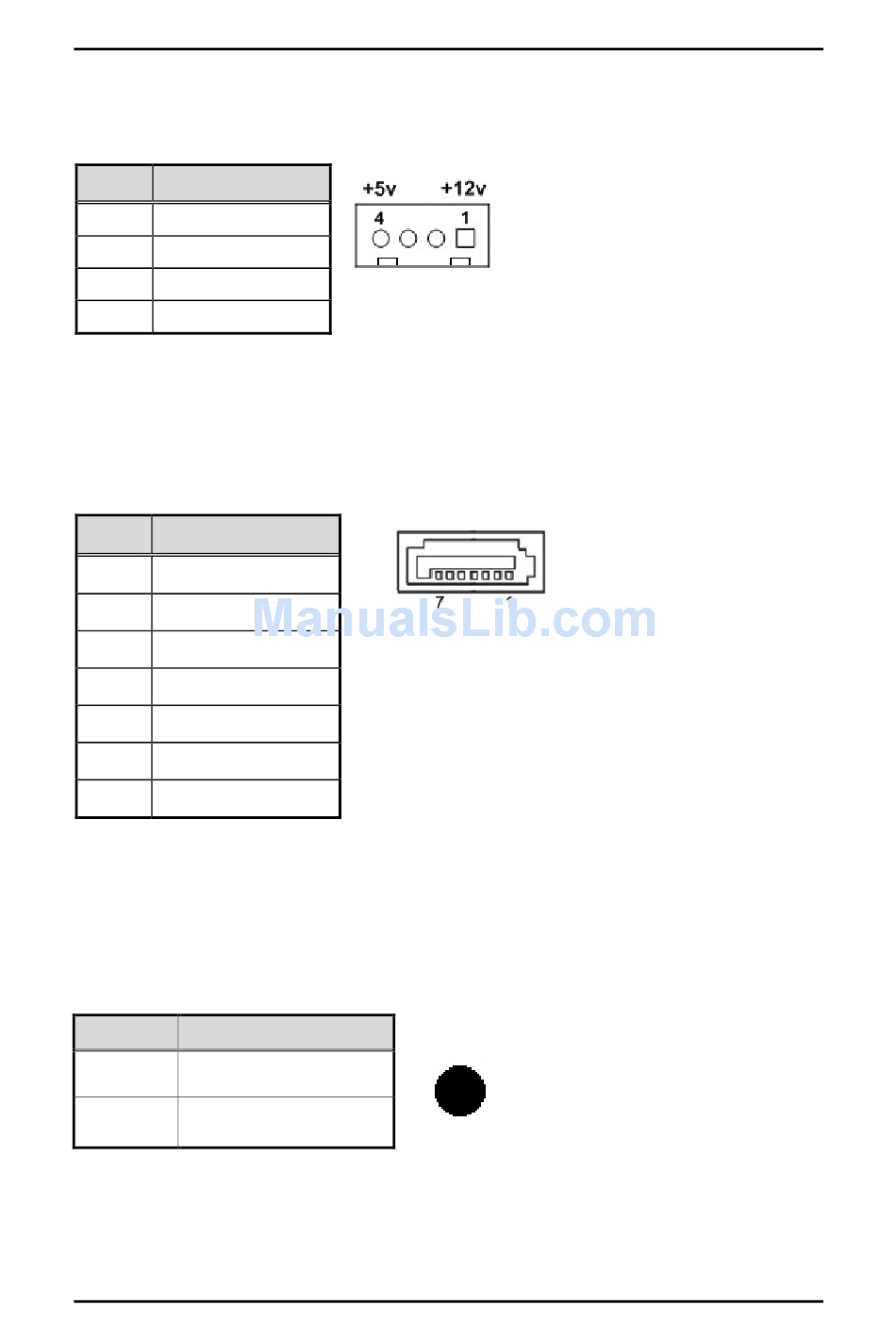

1.7.7 SATA Power connector (SCN1、SCN2)
Use SCN1、SCN2 for interfacing to SATA 2.5" HDD power supply.
Pins Signals
1 +12V level
2 GND
3 GND
4 +5V level
1.7.8 SATA Connector (SATA1、SATA2)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such
as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.
Pins Signals
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
1.7.9

ATX Power On/OFF Button(SW1)

The ATX power button is on the I/O side. It can allow users to control SBC87853
power on/off.
Function Description
On Turn on/off system
Off Keep system status
Introduction
IPC962-511-FL/IPC964-512-FL Series User's Manual
15
