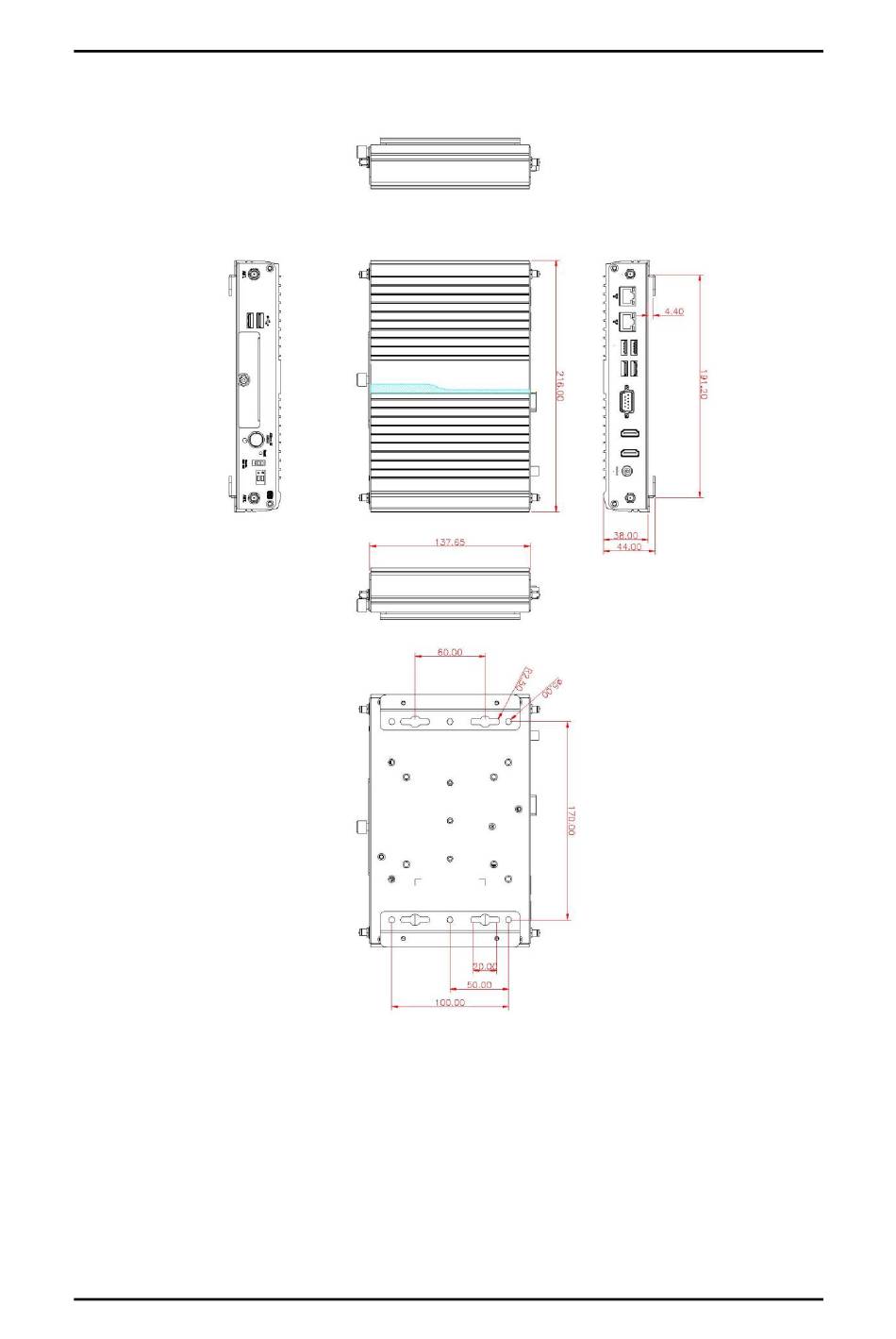

1.3.3 Wall-mount Bracket Dimensions (B)
Instruction
Step 1: Before install the wall mount kit, please remove the four foot pads, and screw the two
pieces of wall-mount kits to the bottom plate of the device.
Total four screws (metric 3 x6) are required.
Step 2: Use the device, with wall mount plate attached, as a guide to mark the correct
locations of the four screws.
Step 3: Insert a tapping-screw (thread diameter less than 4mm) head through middle of the
keyhole-shaped aperture on the plate, and then slide the device downwards.
Tighten the screw head for added stability.
