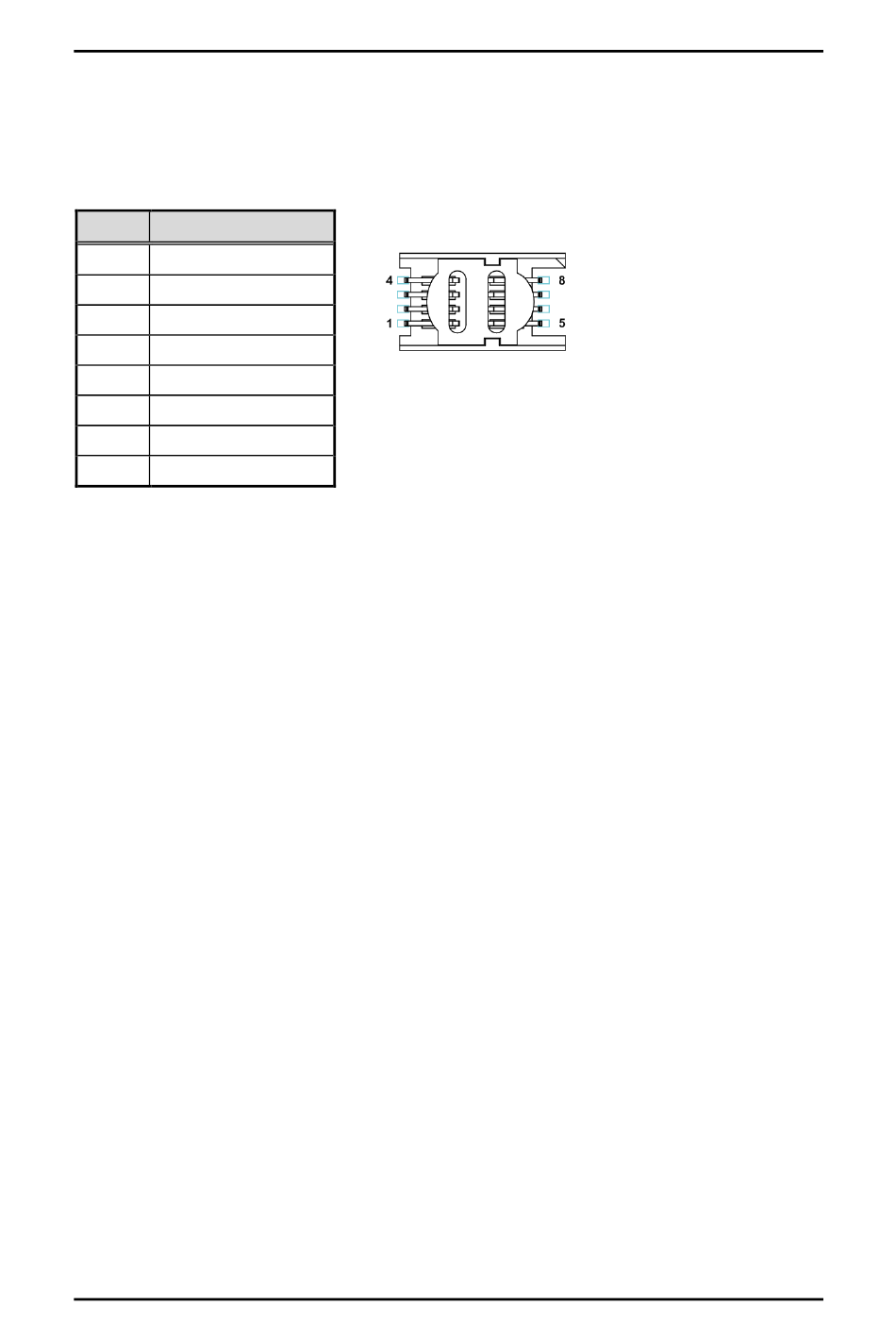

3.3.12 SIM Card slot (CN5)
This board has CN5 socket on the bottom side for inserting SIM Card. In order to work
properly, the SIM Card must be used together with 3G module which is inserted to CN4 or
CN6. It is mainly used in 3G wireless network application.
Pins
Signals
1
PW R
2
RST
3
CLK
4
NC
5
GND
6
VPP
7
I/O
8
NC
Jumper & Connector Settings
