3.3.8

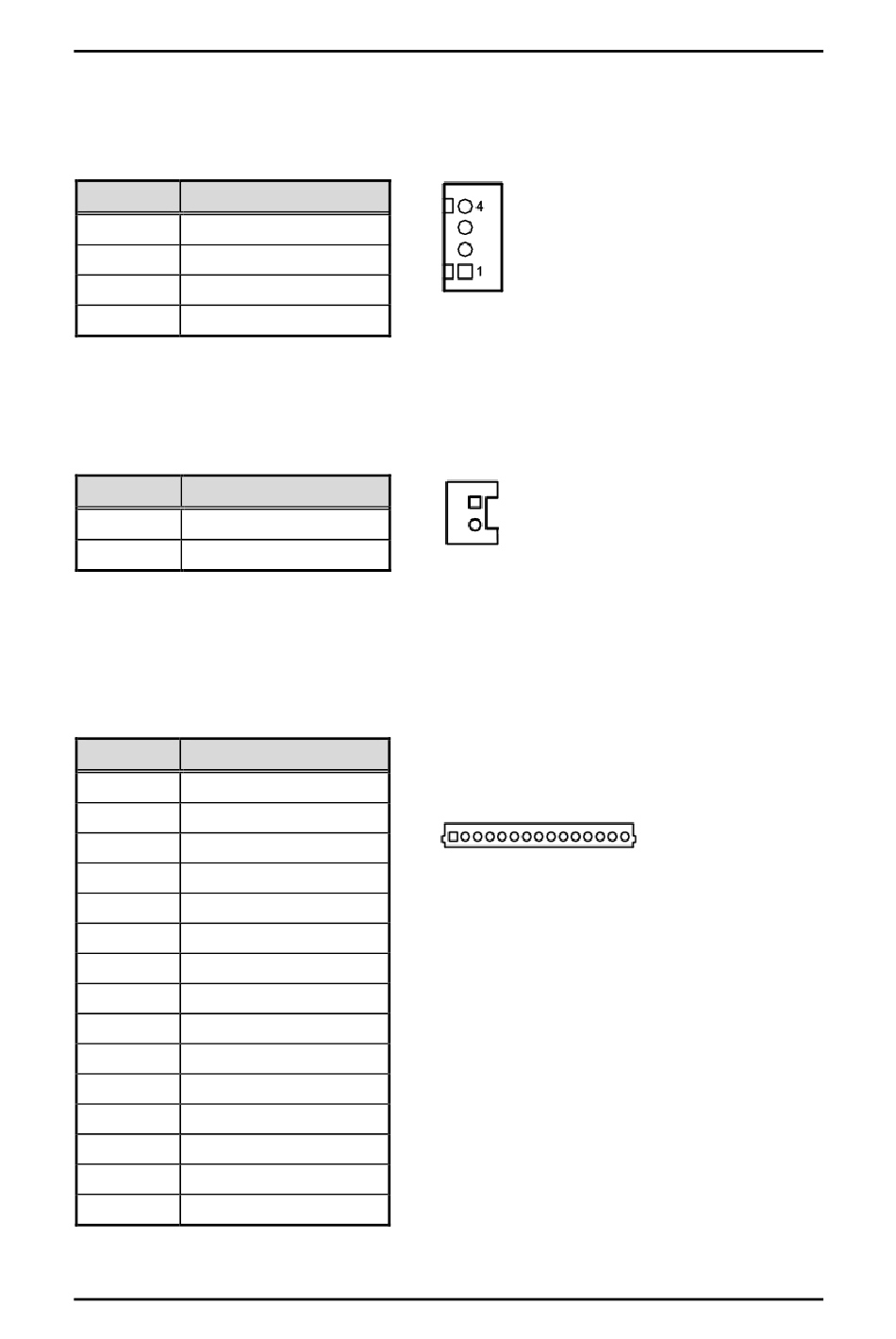

SATA Power Connector (CN6)

The CN6 is a 4-pin (pitch=2.0mm) wafer connector, which is compliant with JST B4B-PH-K-S,
for SATA power interface.
Pins Signals
1 +5V
2 GND
3 GND
4 +12V
3.3.9

CMOS Battery Connector (CN8)

This connector is for CMOS battery interface.
Pins Signals
1 +3.3V
2 GND

3.3.10 Ethernet Connector (CN15)

This is a JST BM16B-SRSS-TB 15-pin wafer connector for Ethernet interface. Gently connect
CN15 to AX93287 I/O board's CN1.
Pins Signals
1 1000 LAN LED
2 100 LAN LED
3 GND
4 MDI3-
5 MDI3+
6 MDI1-
7 MDI2-
8 MDI2+
9 MDI1+
10 MDI0-
11 MDI0+
12 GND
13 LAN_VDD33
14 LAN_LINK_ACT
15 GND
Jumper & Connector Settings
eBOX800-511-FL-FL Series user's Manual
