2.3 Installation of Mini PCIe Module (full-size)

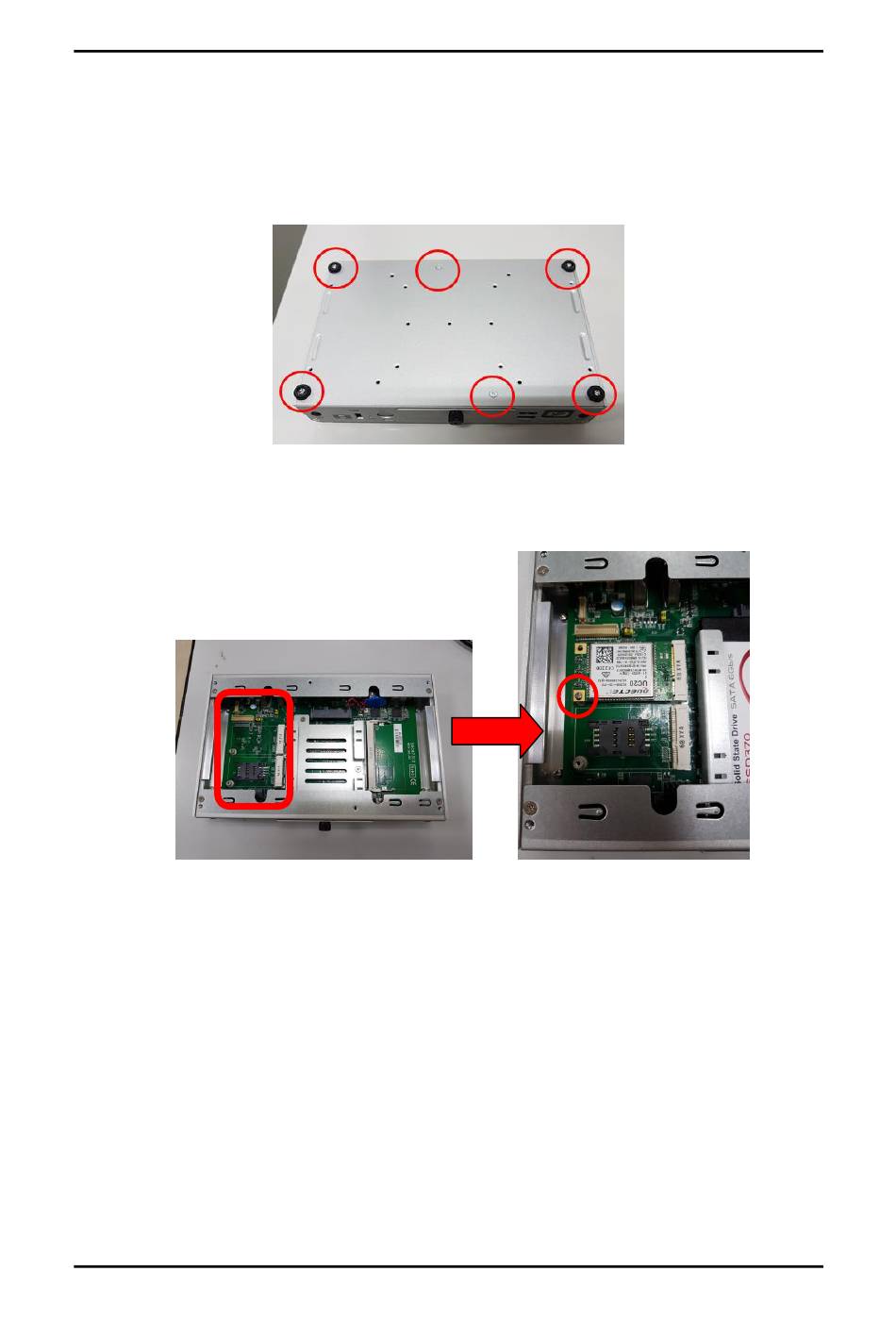

Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom, and then
loosen all screws.
Step 3 Identify the two full-size mini PCIe slots, insert a mini PCIe module into
the socket and then fasten a screw.
Step 4 Put the bottom cover and fasten six screws back onto the system.
