3.2 Summary of Jumper Settings

Proper jumper settings configure the eBOX100-312-FL to meet various application purposes.
A table of all jumpers and their default settings is listed below.
Jumper and Switch
JP2
SW 3

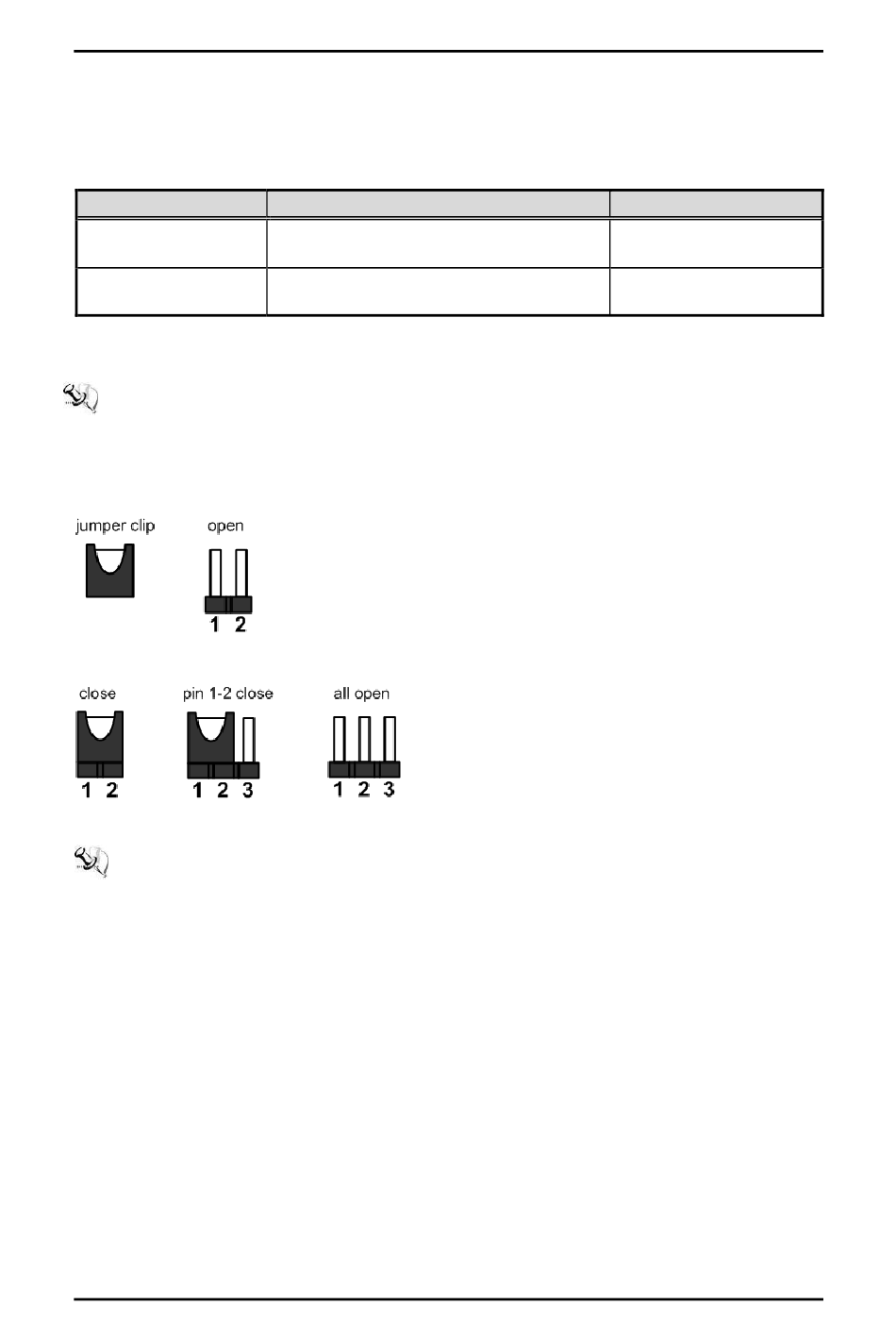

【Note】: How to setup Jumpers
That a cap on a jumper is to "close" the jumper, whereas that offs a jumper is to "open" the
jumper.
【Note】: Once the default jumper or switch setting needs to be changed, please
do it under power-off condition.
Jumper & Connector Settings
Descriptions
Restore BIOS Optimal Defaults
Default: Normal Operation
ATX/ AT quick switch
eBOX100-312-FL Series user's Manual
Settings
1-2 Close
Default: ATX Mode
