eBOX100-312-FL Series user's Manual

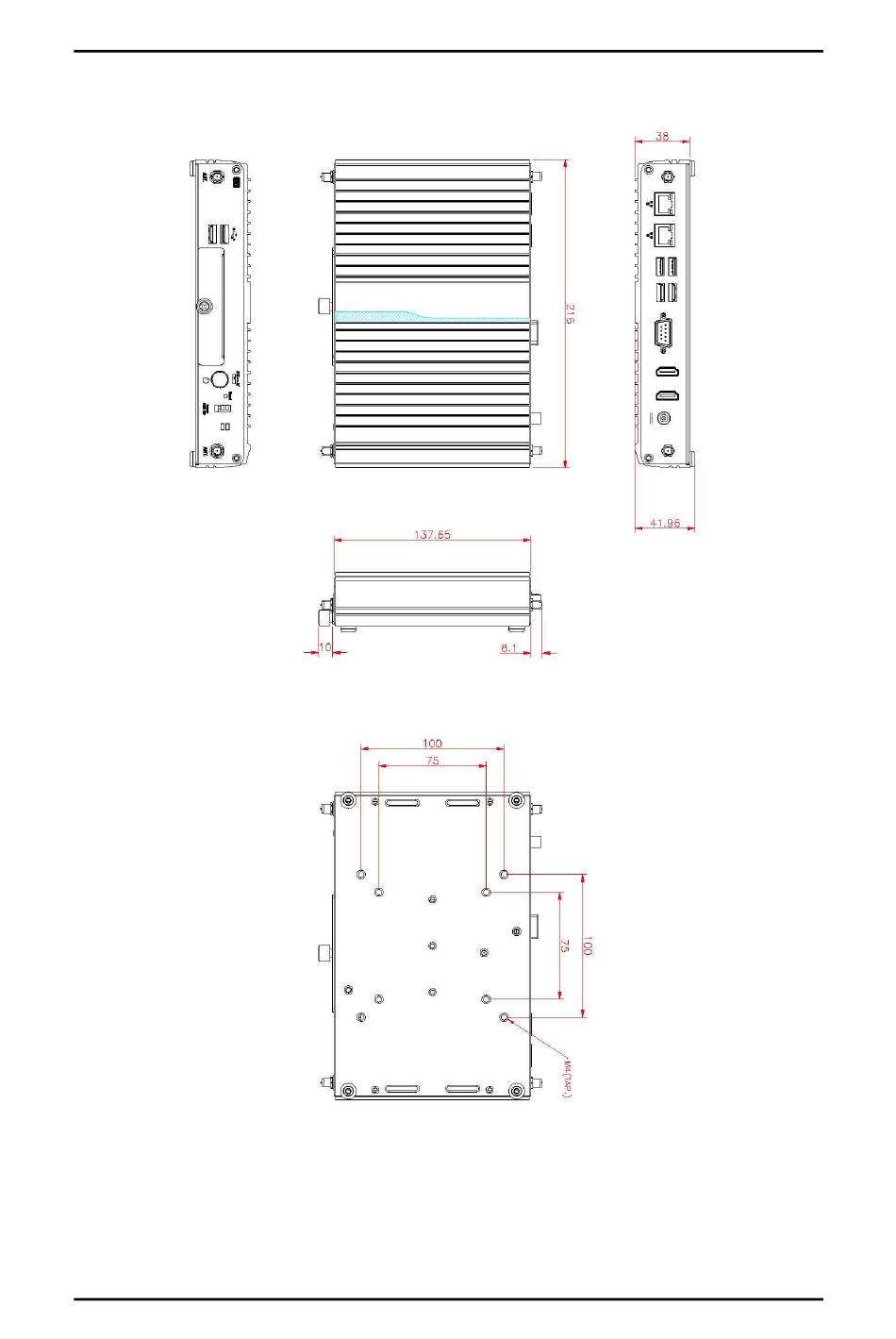

1.3.5 VESA Mount Dimensions
Instruction
Step 1: Please refer to above photo to screw the VESA mount bracket kit with the bottom
plate of the device. Total four screws (metric 4 x6) are required.
Step 2: Insert four screws into the VESA hole of monitor and reserved a gap about
1.2~1.5mm.
Step 3: Users can hang the eBOX100 through VESA bracket on the monitor.
Introduction
9
